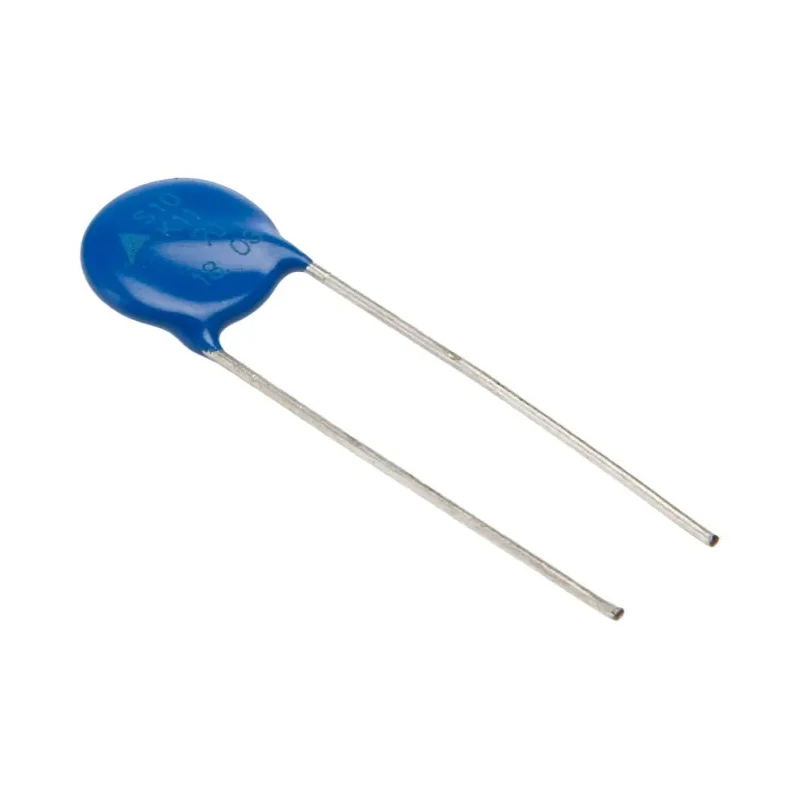

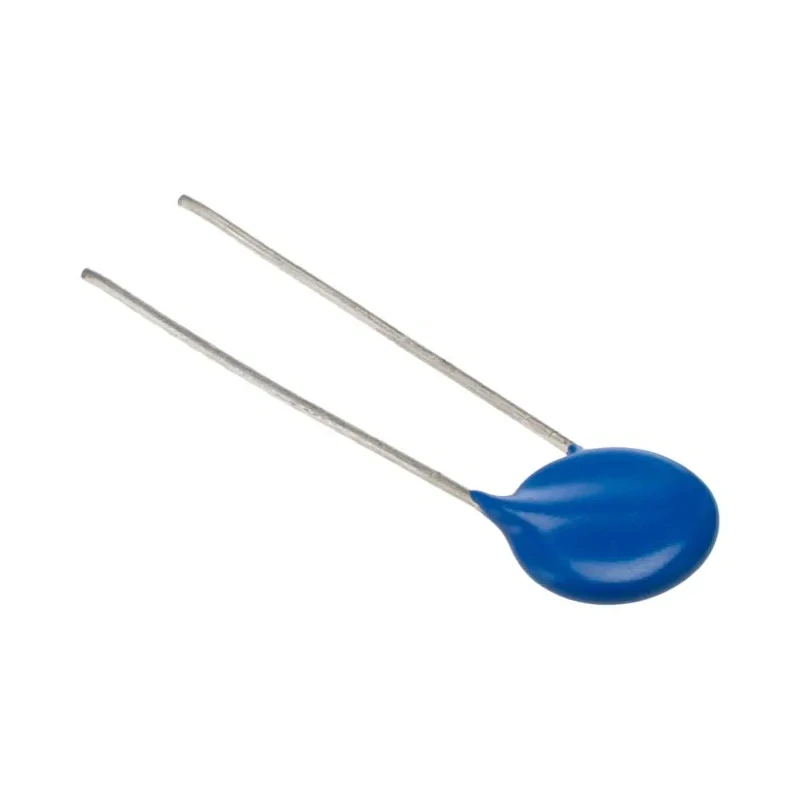

TDK Standard Metal Oxide Varistor 6.25nF Capacitance 5A Clamping Voltage 36V B72210S0110K101

TDK B72210S0110K101 Standard Metal Oxide Varistor is a reliable surge protection component specifically engineered for electronics and electrical applications requiring transient voltage suppression. Featuring a capacitance of 6.25nF, this varistor is designed to clamp voltage surges effectively, protecting circuits from damage.

This varistor exhibits a clamping voltage of 36V and a rated clamping current of 5A, making it suitable for use in power electronics, consumer devices, and industrial control systems. The metal oxide varistor material provides stable performance under repeated transient events.

The device is constructed with a ceramic body epoxy-coated for enhanced mechanical strength and environmental resistance. Tinned copper leads facilitate soldering and ensure strong, low-resistance electrical connections. With a compact form factor - 12mm diameter, 14.5mm length, and 4mm thickness - it integrates seamlessly into compact circuit designs.

Designed for usage within an operating temperature range of -40°C to 85°C, the varistor can function reliably in a wide array of ambient conditions. It is tested and approved according to rigorous standards including CSA, EC, UL, VDE, and CQC, confirming quality and safety compliance for demanding applications.

Capacitance of 6.25nF ensures effective transient voltage suppression. Maximum clamping voltage of 36V for reliable energy discharge. Rated clamping current of 5A suitable for moderate surge conditions. Compact dimensions with 12mm diameter and 14.5mm length for versatile installation.

Epoxy-coated radial design with solder termination ensures durability and safe electrical connections. Operational temperature range from -40°C to 85°C for wide environmental adaptability. Complies with international standards including CSA, EC, UL, VDE, and CQC.

Pin pitch of 7.5mm and 2-pin configuration for standard PCB mounting. Energy rating of 1.7J supports transient energy absorption in electronics protection.

This Metal Oxide Varistor is ideal for industrial, laboratory, construction, manufacturing, and electronic device protection uses. It is effective in safeguarding sensitive electronic components from voltage spikes and transient surges commonly encountered in electrical power lines and industrial environments.
