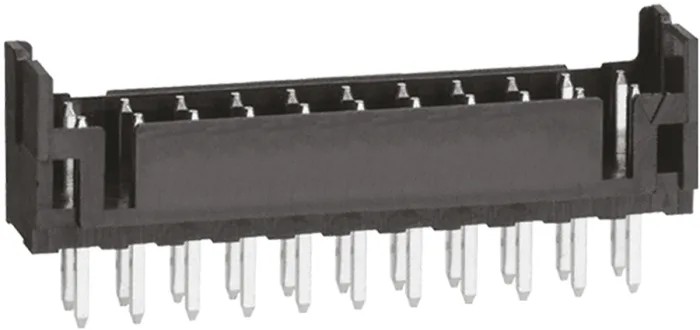

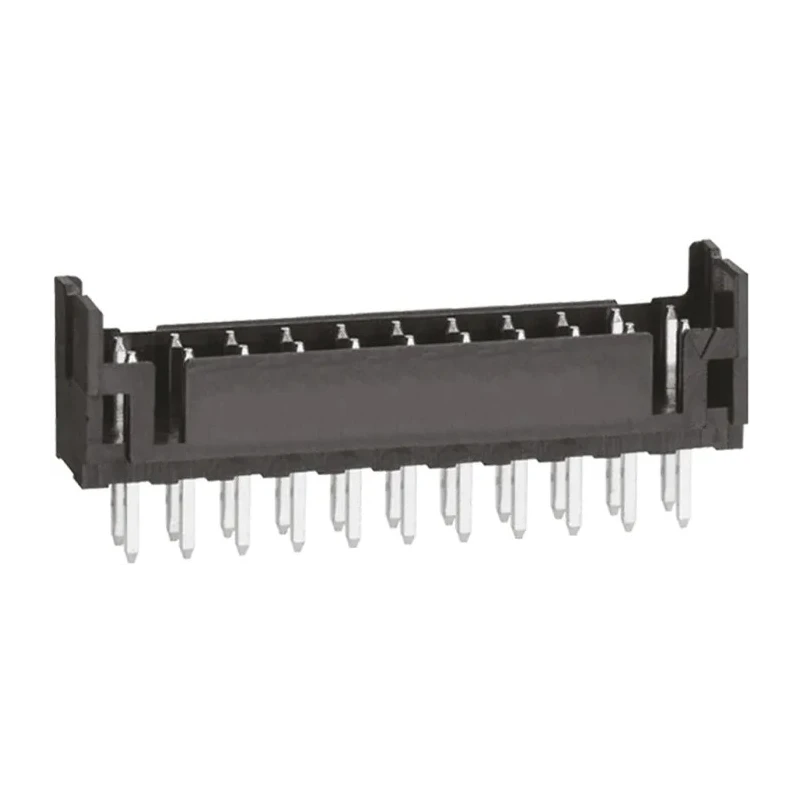

Hirose DF11 Series Straight Through Hole PCB Header 22 Contacts 2 mm Pitch 2 Row Shrouded DF11
Specifications
| Country of Origin | Malaysia |
|---|---|
| Voltage | 250V |
| Brand | Hirose |
| Orientation | Straight |
| Current | 2A |
| Model | DF11 |
| Mount Type | Through Hole |
| Housing Material | Polyamide |
| Contact Material | Copper Alloy |
| Series | DF11 |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -30°C |
| Number of Rows | 2 |
| Pitch | 2mm |
| Contact Plating | Tin |
| Number of Contacts | 22 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Board-to-Board, Wire-to-Board |
Key Features
- Compact double row header with 2 mm pitch spacing.
- 22 contacts designed for board-to-board and wire-to-board applications.
- Robust polyamide housing material for durability.
- Straight orientation with shrouded design to prevent mismating.
- Through hole mount type with tin plated copper alloy contacts.
- Operates reliably between -30°C and 85°C temperature ranges.
- Supports up to 2A current and 250V voltage ratings.
- Locking mechanism ensures secure mating connections.
Product Description
Hirose DF11 Series Straight Through Hole PCB Header model DF11 features a compact double row design with 22 contacts spaced at 2 mm pitch. The header is shrouded and designed with polyamide housing to ensure durability and prevent incorrect insertion or twisting when mating. This connector supports a current rating of 2A and voltage rating of 250V, suitable for board-to-board and wire-to-board applications.
The straight orientation and through-hole mount type ensure easy and secure solder connections on printed circuit boards. Contacts are made of copper alloy with a tin plating to provide reliable conductivity and resistance to corrosion. The robust locking mechanism and guide ribs prevent mismating and provide mechanical stability.
Operating temperature ranges from -30°C to 85°C, making this PCB header suitable for varied environments and applications including digital cameras, LCD displays, digital video recorders, car navigation systems, access control units, and measurement devices. The shallow design with less than 5 mm depth allows space-saving double row contact configuration within the footprint of a typical single row layout.
Manufactured in Malaysia, this new Hirose DF11 Series header connector offers dependable electronic component assembly for industrial, commercial, and portable device manufacturing. The product is compliant with RoHS environmental standards and designed for long-term reliability in electronic systems.
Compact double row 2 mm pitch header connector. Robust polyamide housing with shrouded design. Locking mechanism and guide ribs for secure mating. Through hole mount for reliable PCB soldering. Copper alloy contacts with tin plating.
Rated for 2A current and 250V voltage. Operating temperature from -30°C to 85°C. Applications include portable electronics and digital devices. Manufactured in Malaysia with proven quality. Explore more PCB Headers and related connectors at EnvMart to find suitable compatible solutions for your electronic component assembly requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a current rating of 2A and a voltage rating of 250V.
The Hirose DF11 Series header features a 2 mm pitch and has 22 contacts.
It operates reliably within a temperature range of -30°C to 85°C.
This unit uses a through hole mount type for reliable soldering on printed circuit boards.
The contacts are made of copper alloy with tin plating to ensure reliable conductivity and corrosion resistance.
The shrouded design, along with a robust locking mechanism and guide ribs, helps prevent mismating and provides mechanical stability.
This model is suitable for applications including digital cameras, LCD displays, digital video recorders, car navigation systems, access control units, and measurement devices.
It features a straight orientation for easy and secure connections.
The housing is made of polyamide, which contributes to its durability.
Yes, it is compliant with RoHS environmental standards.
This model supports both board-to-board and wire-to-board connector systems.
It is manufactured in Malaysia.
