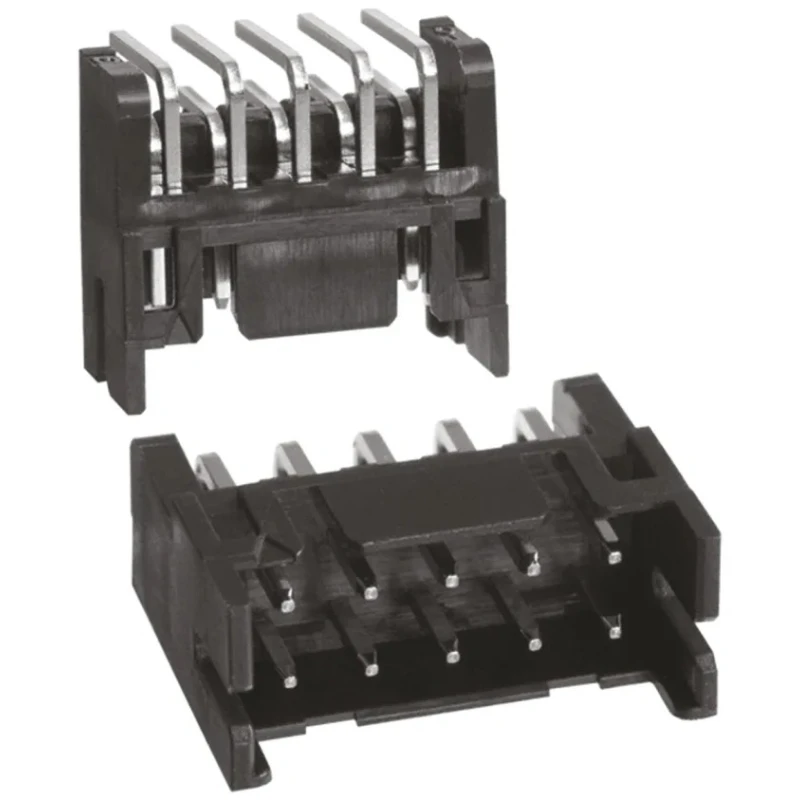

Hirose DF11 Series Right Angle Through Hole PCB Header 10 Contacts 2 mm Pitch 2 Row Shrouded DF11

Hirose DF11 Series Right Angle Through Hole PCB Header model DF11 is a precision electronic connector featuring 10 male contacts with a 2 mm pitch arranged in 2 rows. It is engineered with a compact polyamide housing and brass tin-plated contacts to endure demanding operational environments. This component is rated for currents up to 2A and voltages up to 250V, supporting reliable performance between -30°C and 85°C.

The right angle, shrouded design and a 5 mm overall depth allow double row contacts to occupy the same PCB footprint as a single row connector, enabling high-density interconnection on compact boards. The header incorporates guide ribs to avoid mismating and a locking mechanism that ensures secure connection, preventing accidental disconnection during use. Its through hole mount type facilitates durable soldered joints providing mechanical strength.

The DF11 series is suitable for both board-to-board and wire-to-board applications and is commonly used in portable and precision digital devices such as digital cameras, LCD displays, digital video recorders, car navigation units, access control, and measurement devices. The shrouded male contacts guarantee protection while ensuring precise alignment during mating cycles.

Additional features include metal fittings on SMT versions for PCB retention and prevention of solder peeling. The product does not carry any specific industry certifications but complies with standard technical requirements for such connectors.

The compact 2.00 mm pitch design supports double row contacts in minimal PCB space. Constructed from durable polyamide housing with brass contacts plated in tin for reliable conductivity. Right angle orientation with shrouded design prevents misalignment and ensures secure mating.

Through hole mounting type offers robust soldering connection to PCB. Rated for 2A current and 250V voltage applications with operating temperature range from -30°C to 85°C. Features guide ribs and locking mechanism to prevent incorrect insertion and provide retention security.

Suitable for board-to-board and wire-to-board connector systems in various electronic devices. Ideal for use in digital cameras, LCDs, video recorders, navigation, and measurement instruments. Explore more PCB connectors and electronic components within the EnvMart catalog to find compatible parts and accessories tailored to your industrial and electronic applications.
