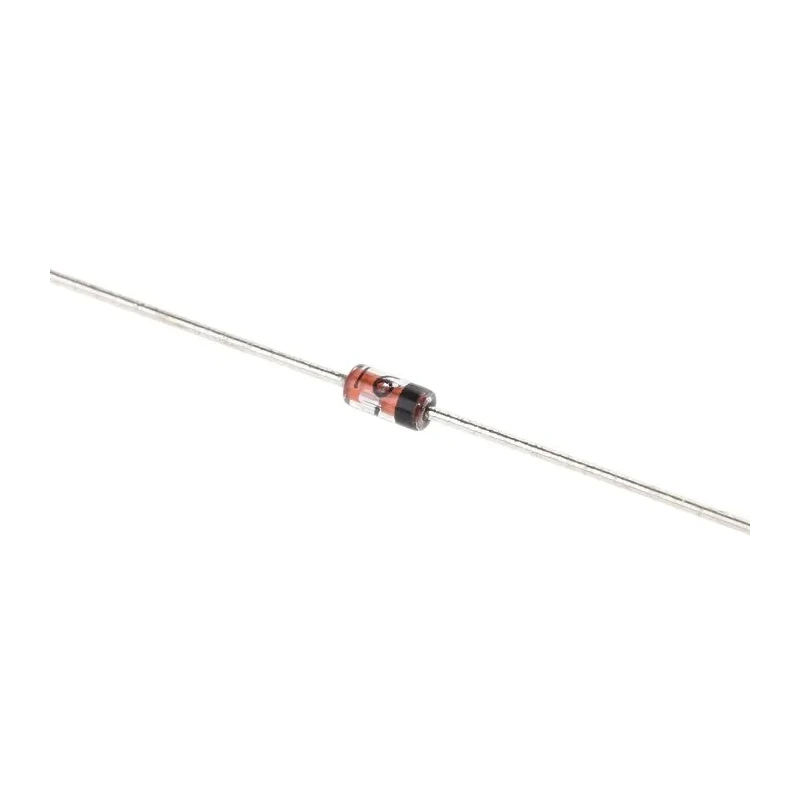

onsemi Small Signal Diode 100 V 300 mA 2-Pin DO-35 1N914ATR

onsemi 1N914ATR Small Signal Diode is a robust Discrete Semiconductor designed for electronic circuit applications requiring efficient switching and signal rectification.

Encapsulated in a DO-35 package with a 2-pin through-hole mount, it supports a maximum continuous forward current of 300 mA and a peak reverse repetitive voltage rating of 100 V. This diode offers a low forward voltage drop of up to 1 V and a fast peak reverse recovery time of 4 ns, making it ideal for high-speed switching tasks in industrial and laboratory environments.

The device operates reliably across a wide temperature range from -65°C to 175°C, suitable for harsh conditions and various electronic component assemblies. Its compact dimensions of 4.56 mm length and 1.53 mm diameter enable integration into dense circuit boards.

The 1N914ATR diode is commonly used in signal processing, rectification, and protection circuits across industrial electronics, power supply modules, control systems, and communication equipment.

Rated continuous forward current: 300 mA. Peak reverse voltage: 100 V. Single diode configuration for efficient switching. Fast recovery time ensures minimal switching losses. Wide operating temperature for diverse applications.

Compact DO-35 package supports easy through-hole mounting. Low leakage current enhances circuit stability. Durable and reliable semiconductor component. Suitable for industrial, laboratory, and manufacturing electronic designs.

Choose onsemi 1N914ATR for precise, high-quality small signal diode applications in electronic component assemblies. Discover more products in the Semiconductor category at EnvMart.
