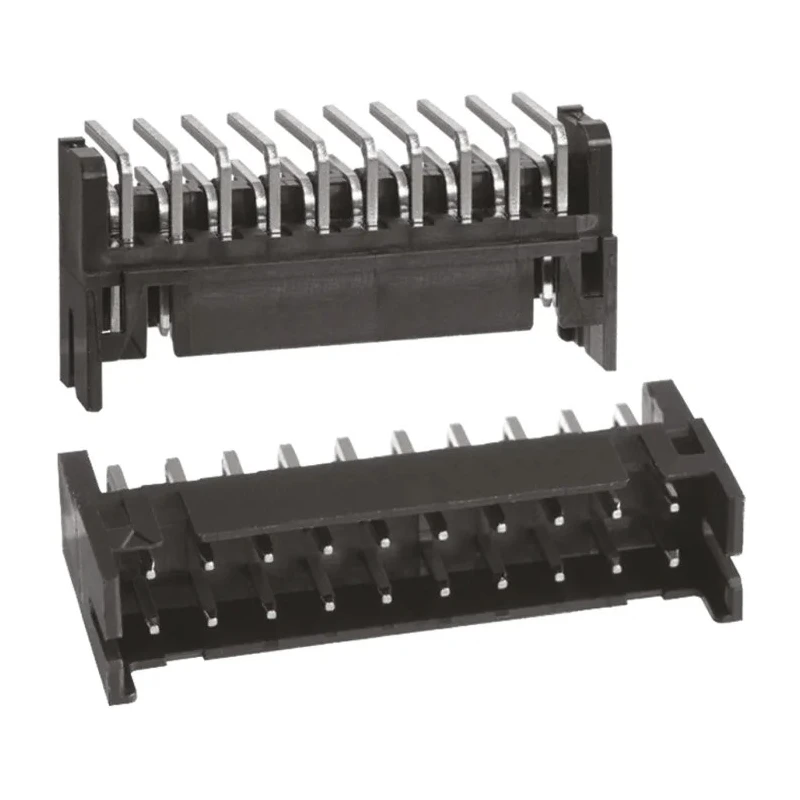

Hirose DF11 Series Right Angle Through Hole PCB Header, 20 Contacts, 2 mm Pitch, 2 Row, Shrouded DF11
Specifications
| Country of Origin | Japan |
|---|---|
| Voltage | 250V |
| Brand | Hirose |
| Orientation | Right Angle |
| Current | 2A |
| Model | DF11 |
| Mount Type | Through Hole |
| Housing Material | Polyamide |
| Contact Material | Brass |
| Series | DF11 |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -30°C |
| Number of Rows | 2 |
| Pitch | 2mm |
| Contact Plating | Tin |
| Number of Contacts | 20 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Board-to-Board |
Key Features
- This connector has a compact double row design with a depth under 5 mm allowing space-saving PCB layouts.
- Constructed with polyamide housing material and brass contacts plated with tin for reliable electrical performance.
- Designed with guide ribs and a locking mechanism to prevent incorrect insertion and ensure secure connection.
- Supports a current rating of 2 A and voltage rating up to 250 V, suitable for various electronic applications.
- Operates reliably within a temperature range of -30°C to 85°C, making it durable for industrial use.
- Its right angle orientation facilitates board-to-board connections in tight spaces.
- Ideal for applications such as digital cameras, LCD displays, digital video recorders, car navigation systems, access control units, and precision measurement devices.
Product Description
Hirose DF11 Series Right Angle Through Hole PCB Header, model DF11, is a high-quality, space-efficient connector designed with 20 male contacts arranged in 2 rows at 2 mm pitch.
The connector features a robust polyamide housing that is shrouded to protect contacts and ensure correct mating with DF11 series housings. Its copper alloy brass contacts with tin plating provide reliable conductivity and durability.
The compact design allows this header to save PCB space by fitting a double row of contacts within the space typically occupied by a single row, with a total depth of less than 5 mm.
Incorporating guide ribs prevents mismating and twisting during insertion, and a locking mechanism secures the connection, making it dependable for continuous use. The through-hole mounting provides strong mechanical retention and ease of soldering.
This PCB Header supports a current rating of 2A and voltage up to 250V, operating within ambient temperatures from -30°C to 85°C, suitable for demanding industrial, commercial electronics, and portable device assemblies.
Common applications for this connector include digital cameras, LCD displays, digital video recorders, automotive navigation systems, access control modules, and measurement instrumentation.
Compact double row design maximizes PCB space efficiency. Durable polyamide housing with shrouded protection. Reliable brass contacts with tin plating maintain signal integrity. Guide ribs and locking mechanism ensure correct and secure mating.
Rated for 2A current and up to 250V voltage. Wide operating temperature range from -30°C to 85°C. Right angle orientation suitable for board-to-board connections. Browse EnvMart's comprehensive range of Hirose PCB connectors and headers designed for precision and reliability in electronics manufacturing and repair.
