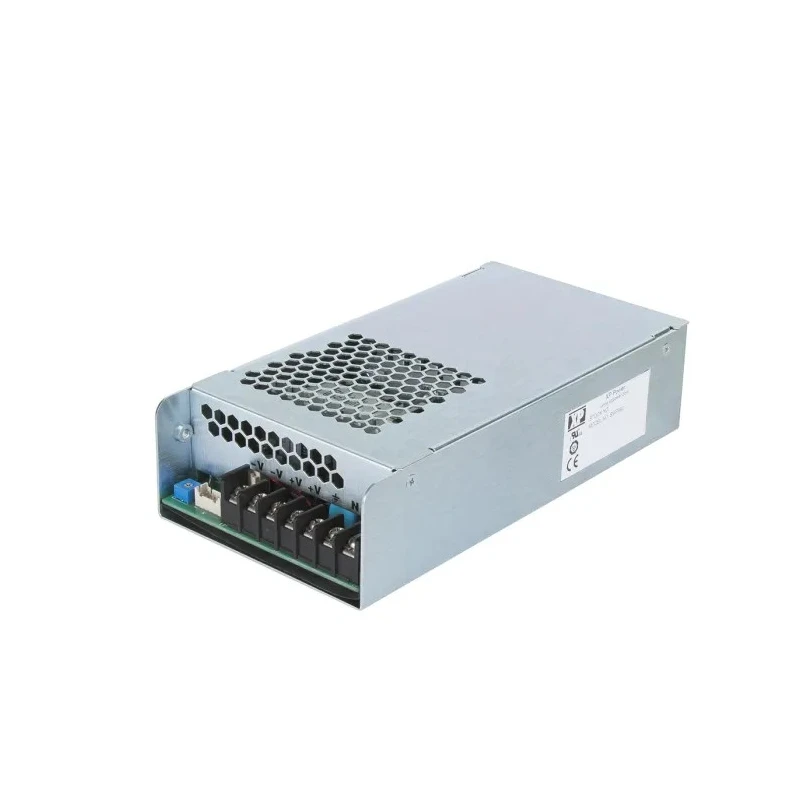

XP Power SMP350PS48 Switching Power Supply 48V 350W Chassis Mount High Efficiency SMP350PS48

XP Power SMP350PS48 is a high-performance enclosed switching power supply designed to provide stable 48V DC output with maximum power of 350W. This over-engineered power supply is ideally suited for a variety of industrial and commercial applications requiring reliable and efficient power conversion.

The SMP350 series features a rugged chassis mount construction with an integral fan for forced air cooling, ensuring reliable operation over a broad temperature range from -40°C to 70°C. The unit delivers up to 93% efficiency, minimizing energy loss and heat generation.

This model incorporates screw terminal connections for secure wiring and convenient system integration. Remote On/Off functionality allows users to control the power unit easily as part of larger automated systems. Compact size with dimensions 180.8 mm length, 91.4 mm width, and 43.2 mm depth makes it suitable for installation in space-constrained environments.

The SMP350PS48 is certified to stringent standards including EN 60601-1/2006, ANSI/AAMI ES 60601-1:2005, CSA C22.2 No. 62368-1, IEC 60601-1 Ed 3, IEC 60950-1:2005 Ed 2, IEC 62368-1 Ed 2, LVD, RoHS, and UL 62368-1, ensuring compliance for medical and industrial applications.

With a maximum output current of 7.3 amps and a wide input voltage acceptance from 85V AC minimum to 264V AC maximum, this power supply supports varied input power conditions worldwide. It is ideal for use in industrial machinery, automation equipment, laboratory instruments, and other professional electrical systems requiring dependable DC power.

Features a rugged chassis mount design suitable for industrial environments. Operates efficiently with up to 93% energy conversion efficiency. Wide operating temperature range from -40°C to 70°C enhances reliability. Includes integral fan cooling for consistent thermal management.

Screw terminal connections allow secure and easy installation. Supports remote On/Off control for simplified system management. Compact dimensions of 180.8mm x 91.4mm x 43.2mm enable versatile deployment. Certified to multiple safety and regulatory standards including EN 60601-1 and UL 62368-1.

Output current rating of 7.3A suitable for diverse industrial power needs.

Choose the XP Power SMP350PS48 for a compact, robust, and high-efficiency switching power supply solution for demanding electrical applications. Browse the full range of XP Power products and Switching Power Supplies on EnvMart for optimized power management solutions.
