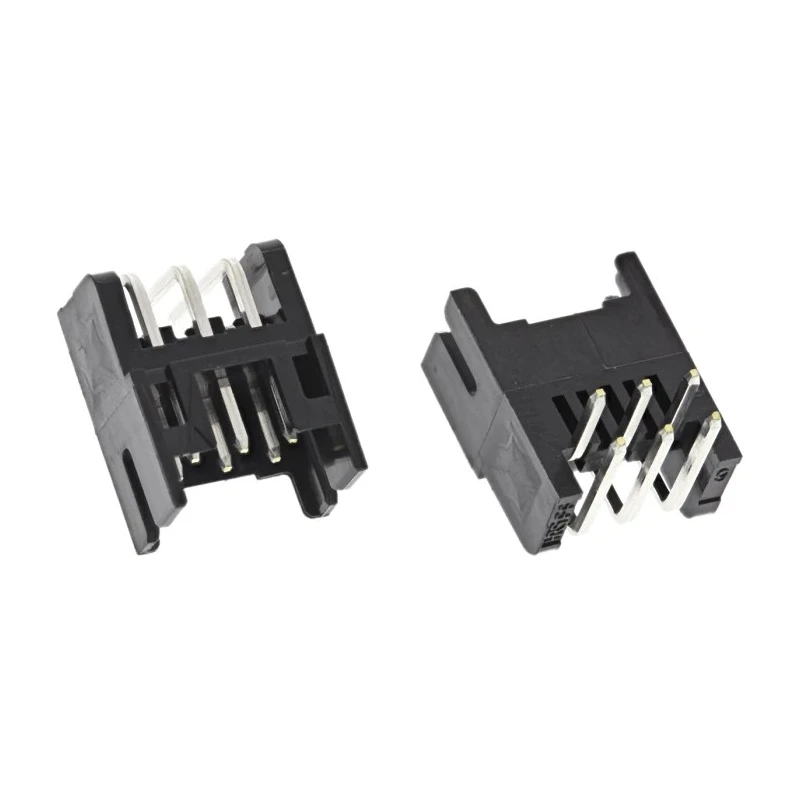

Hirose DF11 Series Right Angle Through Hole PCB Header 6 Contact 2 mm Pitch 2 Row Shrouded DF11
Specifications
| Country of Origin | Malaysia |
|---|---|
| Voltage | 250V |
| Brand | Hirose |
| Orientation | Right Angle |
| Current | 2A |
| Model | DF11 |
| Mount Type | Through Hole |
| Housing Material | Polyamide |
| Contact Material | Brass |
| Series | DF11 |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -30°C |
| Number of Rows | 2 |
| Pitch | 2mm |
| Contact Plating | Tin |
| Number of Contacts | 6 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Board-to-Board, Wire-to-Board |
Key Features
- Compact double row design with less than 5 mm depth saves PCB space.
- Robust four wall shrouded polyamide housing with guide ribs prevents incorrect insertion and twisting.
- Locking mechanism ensures secure mating connection.
- Metal fittings on SMT versions improve PCB retention and prevent solder peeling.
- Suitable for digital cameras, LCD displays, car navigation systems, and measurement devices.
- Constructed with polyamide housing and brass contacts plated with tin.
- Operates reliably between -30°C and 85°C temperature range.
- Through hole mount type with solder termination and male contact gender.
Product Description
Hirose DF11 Series Right Angle Through Hole PCB Header model DF11 is a 2.00 mm pitch compact double row connector designed to provide reliable board-to-board and wire-to-board connections. Featuring 6 contacts in 2 rows, this shrouded header ensures space saving with less than 5 mm depth.
The robust polyamide housing includes four-wall shielding and guide ribs that prevent incorrect insertion and twisting during mating, while the locking mechanism provides a secure locking connection. SMT versions also benefit from metal fittings that increase retention on the PCB and prevent solder peeling.
This PCB header is rated for 2 amp current and 250 volts, suitable for various electronic applications including digital cameras, LCD displays, digital video recorders, car navigation systems, access control units, and measurement devices. The male brass contacts are tin plated and designed for solder termination through hole mounting.
Operating temperature ranges from -30°C up to 85°C, ensuring reliable performance in varying conditions. The DF11 series connectors are ideal for compact portable devices requiring multiple signals in limited space.
Compact double row design with less than 5 mm depth saves PCB space. Four wall shrouded polyamide housing with guide ribs prevents incorrect insertion. Locking mechanism ensures secure mating connection. Metal fittings improve PCB retention and prevent solder peeling in SMT versions.
Rated 2A current and 250V voltage for versatile electronic applications. Suitable for board-to-board and wire-to-board connector systems. Male brass contacts with tin plating provide reliable electrical performance. Operates over wide temperature range of -30°C to 85°C.
Through hole mount type with solder termination for robust connection.
This product is made in Malaysia and is new condition. Explore more in our Electronics & Electricals category for related PCB Headers and connectors to suit your industrial and commercial needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is rated for a current of 2A and a voltage of 250V, making it suitable for various electronic applications.
The DF11 series connector features a 2 mm pitch and includes 6 contacts arranged in 2 rows.
It is constructed with a polyamide housing and brass contacts that are plated with tin.
This unit operates reliably within a temperature range of -30°C to 85°C.
The shrouded design, with four-wall shielding and guide ribs, prevents incorrect insertion and twisting during mating, ensuring a secure connection.
It uses solder termination for robust connection, suitable for through hole mounting.
This PCB header is designed for board-to-board and wire-to-board connector systems.
It is suitable for various electronic applications including digital cameras, LCD displays, car navigation systems, and measurement devices.
The orientation of this model is right angle, which helps in space-constrained environments.
SMT versions include metal fittings that improve PCB retention and prevent solder peeling.
This product is made in Malaysia.
The housing material is polyamide, which provides structural integrity to the connector.
