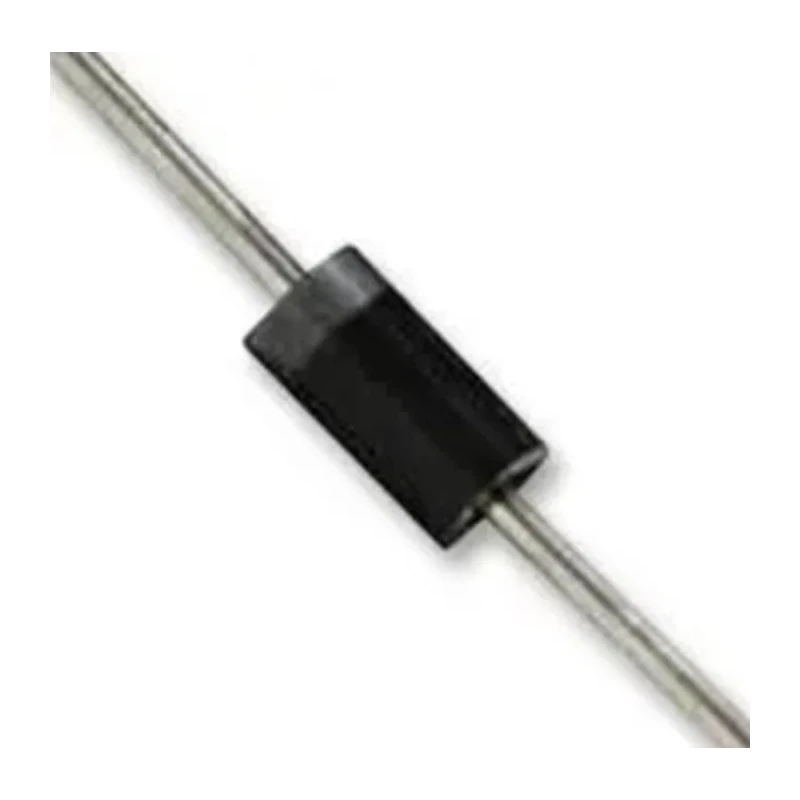

Taiwan Semiconductor 200 V 4 A Through Hole Switching Diode DO-201AD UG4D

Taiwan Semiconductor UG4D is a single switching diode with a 200 V peak reverse repetitive voltage and a 4 ampere continuous forward current rating, housed in a rugged DO-201AD through-hole package.

This diode is optimized for high-speed switching applications, evident from its 20 nanosecond peak reverse recovery time and low reverse current leakage of 5 microamperes. Its forward voltage of 950 millivolts ensures efficient power handling in industrial, electronic, and power conversion circuits.

The device operates reliably within a wide temperature range from -65°C to 150°C, making it suitable for demanding environments. With a compact 9.5 mm length and 5.6 mm diameter physical size, the diode fits standard through-hole PCB layouts.

Applications include power supplies, switching regulators, and discrete semiconductor usage in electronics manufacturing and repair. The diode supports a maximum continuous forward current of 4 amperes. It features a peak reverse repetitive voltage rating of 200 volts.

The peak reverse current is rated at 5 microamperes, ensuring low leakage. The maximum forward voltage drop is 950 millivolts for efficient rectification. Operating temperature ranges from -65°C to 150°C, suitable for industrial applications.

Fast switching diode with a peak reverse recovery time of 20 nanoseconds. The diode package dimensions are 9.5 mm length and 5.6 mm diameter and width. The device is a single diode configuration with 2 pins for through-hole mounting.

It is compliant with no specific automotive or industry standards. The diode is suitable for power and semiconductor applications requiring switching and rectification. Explore more semiconductor diodes and rectifiers on EnvMart for reliable electronic components.
