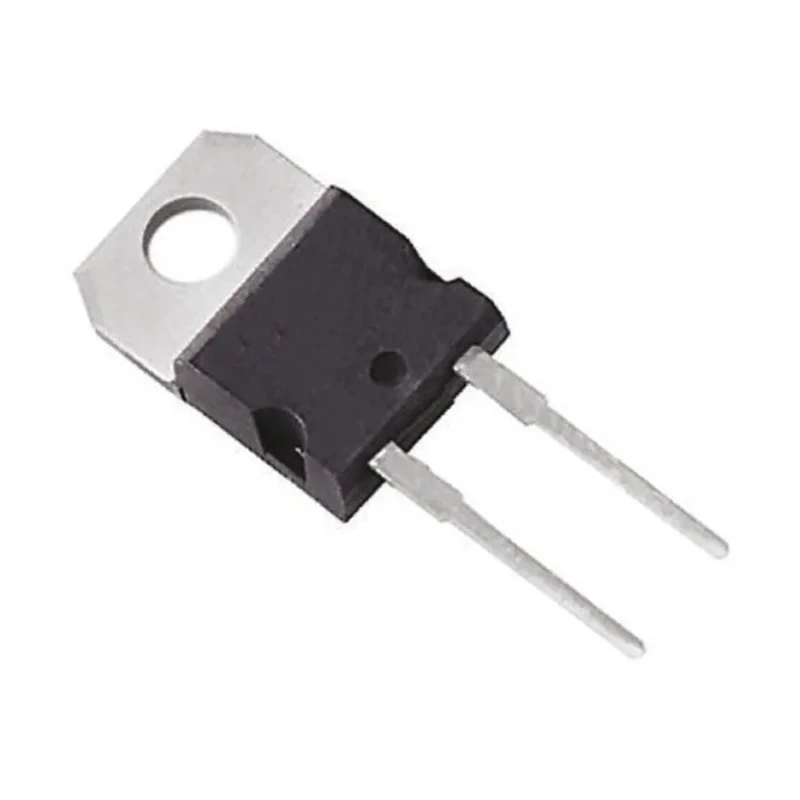

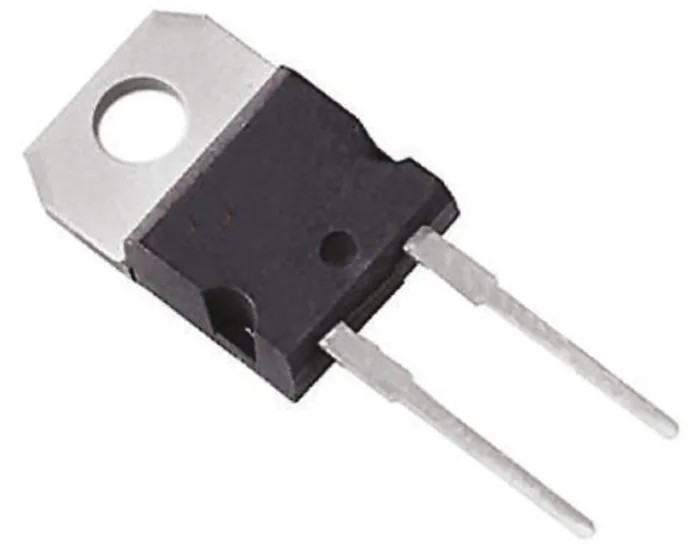

Taiwan Semiconductor 100 V 16 A Schottky Diode 2-Pin TO-220AC MBR16100
Specifications
| Country of Origin | China |
|---|---|
| Brand | Taiwan Semiconductor |
| Height | 8.24mm |
| Length | 10.5mm |
| Model | MBR16100 |
| Width | 4.7mm |
| Mount Type | Through Hole |
| Maximum Operating Temperature | 150°C |
| Package Type | TO-220AC |
| Minimum Operating Temperature | -65°C |
| Pin Count | 2 |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 16A |
| Peak Reverse Repetitive Voltage Vrrm | 100V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 300μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 150A |
| Maximum Forward Voltage Vf | 0.92V |
Key Features
- The diode features a low forward voltage of 0.92 V for reduced power loss.
- It supports a peak non-repetitive forward surge current of 150 A for transient load protection.
- Designed for through-hole mounting with robust TO-220AC packaging.
- Operates reliably between -65°C and 150°C operating temperatures.
- Meets automotive standard AEC-Q101 for enhanced reliability and quality.
- The device has a length of 10.5 mm, width of 4.7 mm, and height of 8.24 mm for compact integration.
- Schottky configuration provides fast switching and low leakage currents.
- Manufactured in China, ensuring consistent quality compliance.
Product Description
Taiwan Semiconductor MBR16100 Schottky Diode is a high-performance 2-Pin diode in the TO-220AC package designed for power electronics, industrial, and automotive applications. It supports a maximum continuous forward current of 16 A and can withstand a peak reverse repetitive voltage of 100 V, making it suitable for various rectification and protection circuits requiring high current and low forward voltage drop.
This diode exhibits low power loss with a typical forward voltage drop of 0.92 V, improving energy efficiency in power conversion systems. It is engineered for through-hole mounting, ensuring ease of assembly onto PCBs while maintaining excellent thermal dissipation through its TO-220AC package.
The device operates effectively across a temperature range from -65°C to 150°C, providing robustness in demanding environments, including automotive applications where it complies with AEC-Q101 standards. The Schottky barrier design enables fast switching speeds and minimizes leakage current, ideal for high-frequency power circuits.
Physical dimensions include a length of 10.5 mm, width of 4.7 mm, and height of 8.24 mm, allowing for compact and efficient layout in system designs. Its peak non-repetitive forward surge current of 150 A ensures reliability under transient load conditions.
The diode features a low forward voltage drop of 0.92 V for enhanced efficiency. It supports a peak forward surge current of 150 A for transient surge protection. Meets stringent automotive standards (AEC-Q101) for quality and reliability.
Compact TO-220AC package simplifies mounting and thermal management. Operates across a wide temperature range from -65°C to 150°C ensuring durability. Manufactured in China under controlled quality processes. Ideal for industrial, automotive, and power supply applications.
This Taiwan Semiconductor MBR16100 diode is suitable for applications ranging from power rectification in industrial control systems to automotive voltage protection circuits, providing sustained performance and efficiency. Browse EnvMart's extensive semiconductor range for compatible components and design solutions.
