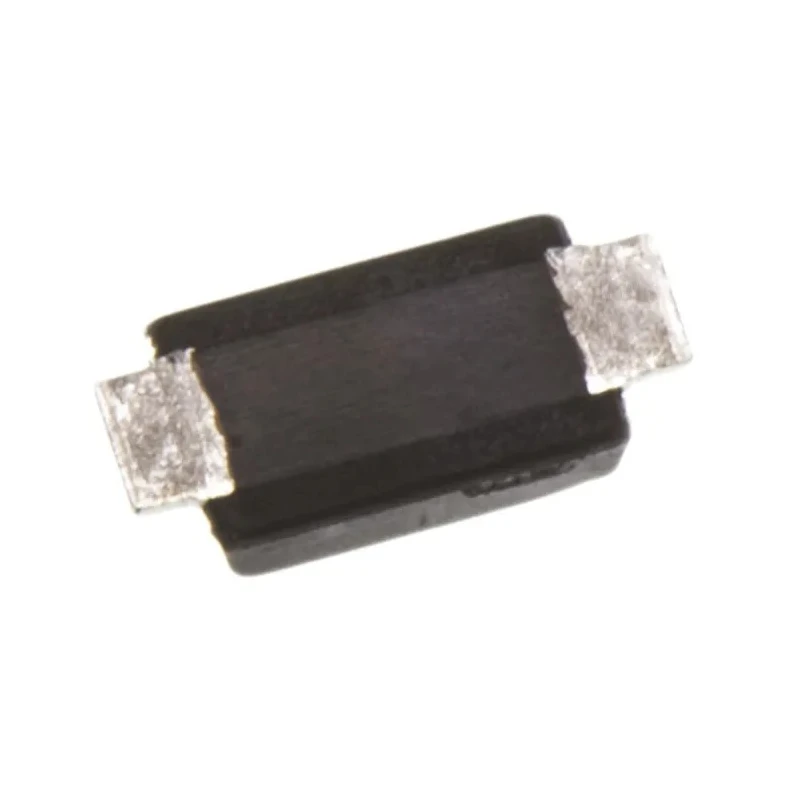

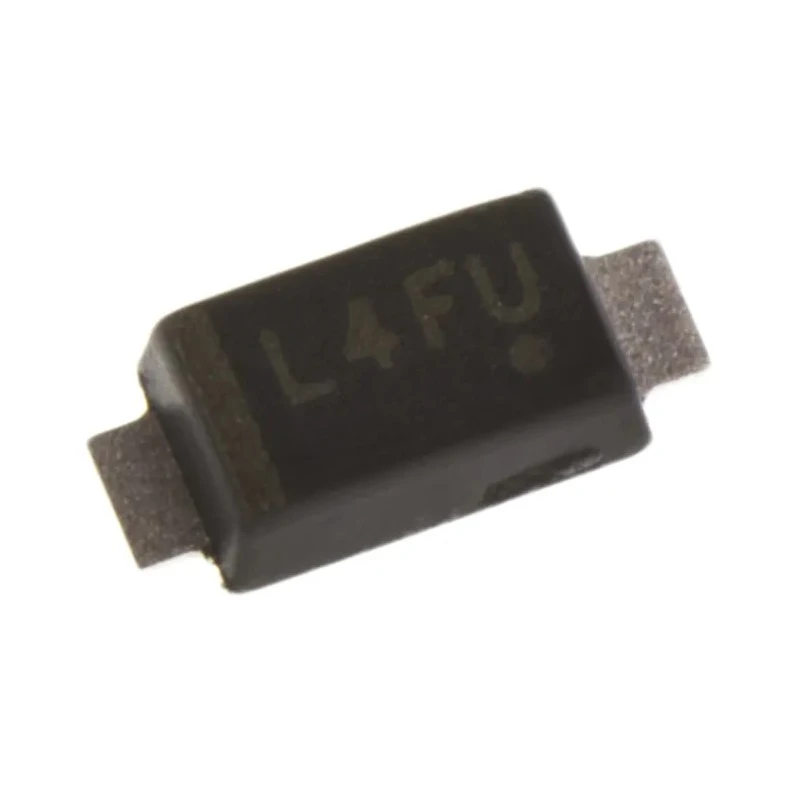

onsemi 40 V 1 A Schottky Diode 2-Pin Surface Mount SOD-123FL MBR140SFT1G

onsemi MBR140SFT1G Schottky Diode is a 40 V, 1 A single diode configured device housed in a 2-pin SOD-123FL surface mount package. It utilizes the Schottky barrier principle providing an optimal forward voltage drop to reverse leakage current balance, making it ideal for low voltage, high frequency rectification applications.

Designed for automated board assembly, this diode features an epoxy moulded case which provides mechanical robustness and protection against environmental stresses. Its compact dimensions of 2.7 mm length, 1.65 mm width, and 0.9 mm height support efficient space utilization in dense PCB layouts.

The device operates reliably within a temperature range from -55°C to 125°C and is RoHS compliant, ensuring environmental friendliness. Additionally, it meets the AEC-Q101 automotive standard, supporting use in automotive electronics.

This Schottky diode is suitable for applications in industrial, automotive, telecommunications, and consumer electronics where quick switching and low forward voltage are critical. Typical uses include freewheeling diodes in motor drives, polarity protection, and power rectification.

This Schottky diode features a compact SOD-123FL surface mount package for space-saving PCB designs. Maximum forward voltage is 550 mV ensuring efficient performance with minimal power loss. Operating temperature range spans from -55°C to 125°C for reliable performance in harsh environments.

Complies with RoHS standards and is AEC-Q101 automotive qualified for automotive applications. Offers low peak reverse current of 500 μA and peak non-repetitive surge current of 30 A. The diode is epoxy moulded with a lightweight package weighing approximately 11.7 mg.

Suitable for use as freewheeling diode, polarity protection, and high-frequency rectification in electronic circuits. Explore our extensive Electronics & Electricals catalog for more semiconductor Diodes and electronic components.
