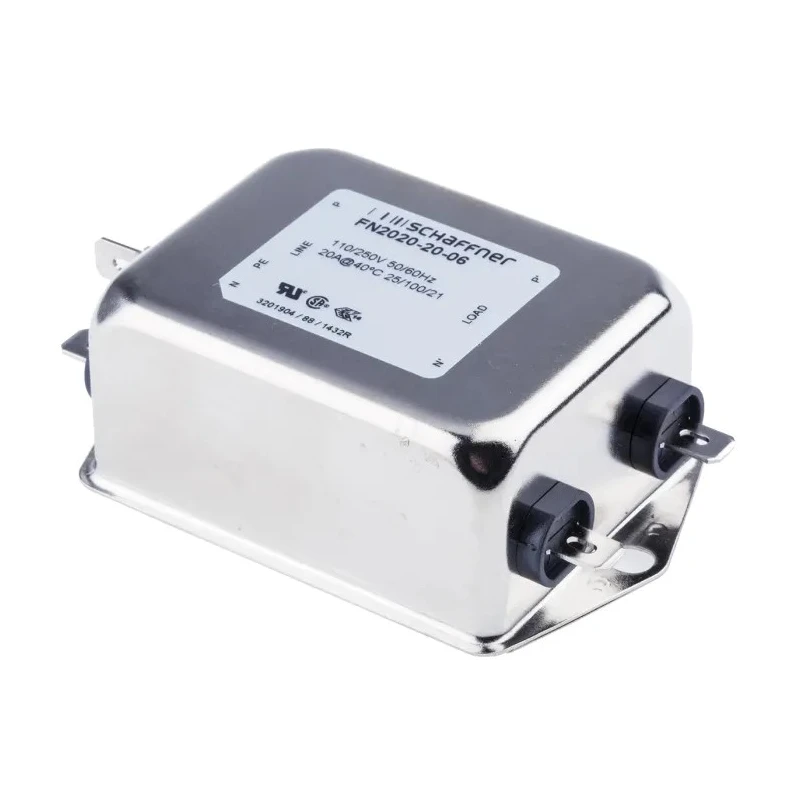

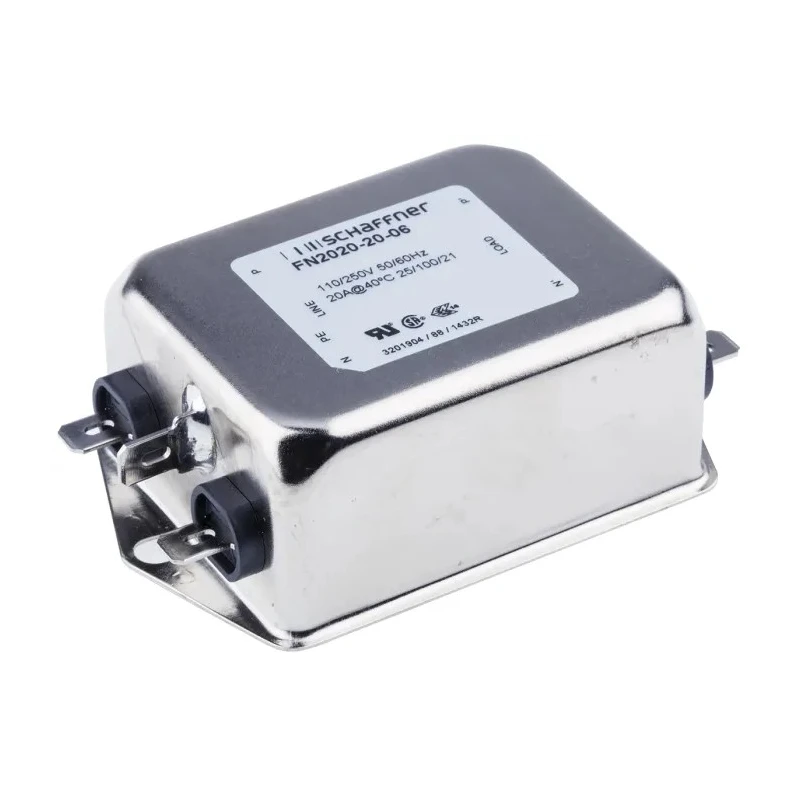

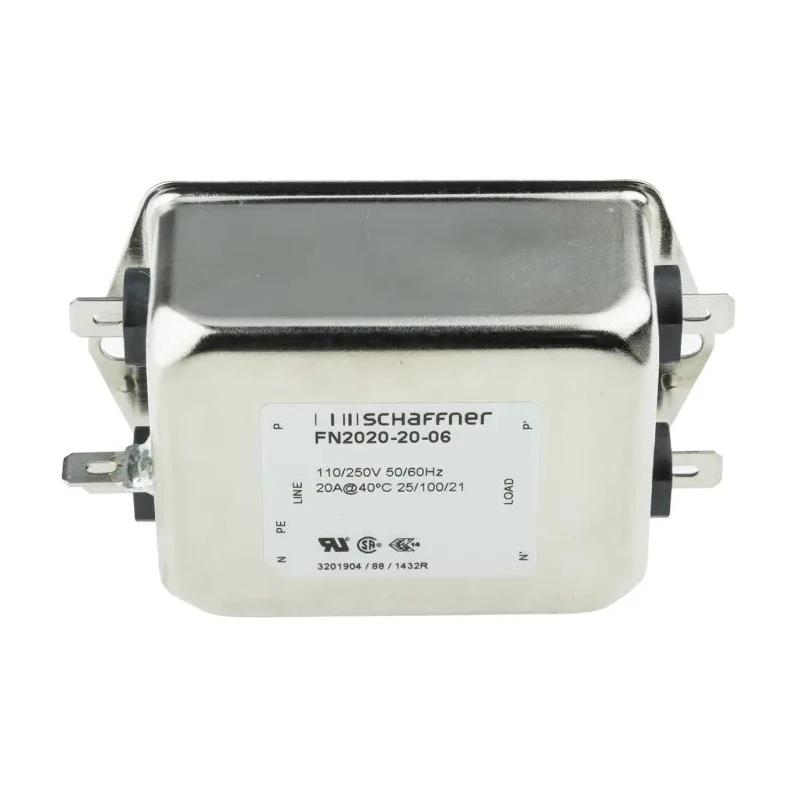

Schaffner Chassis Mount EMI Filter 20A 250V ac/dc 400Hz Fast-On 1 Phase FN2020
Specifications
| Country of Origin | India |
|---|---|
| Brand | Schaffner |
| Height | 30.3mm |
| Length | 54mm |
| Model | FN2020 |
| Depth | 85mm |
| Mount Type | Chassis Mount |
| Operating Frequency | 400Hz |
| Series | FN2020 |
| Maximum Operating Temperature | 100°C |
| Number Of Stages | 1 |
| Resistance | 1mΩ |
| Capacitance | 150nF |
| Minimum Operating Temperature | -25°C |
| Maximum Current | 20A |
| Number of Phases | 1 |
| Leakage Current | 740μA |
| Maximum Voltage | 250V ac/dc |
| Inductance | 600μH |
| Termination Style | Fast-On |
| Power Loss | 3.8W |
Key Features
- Supports a maximum current of 20A for efficient EMI filtering.
- Operates reliably at a maximum voltage of 250V ac/dc and frequency of 400Hz.
- Compact chassis mount design facilitates easy installation.
- Features Fast-On termination style for quick and secure connections.
- Single-phase filter with one stage for targeted EMI attenuation.
- High capacitance of 150nF improves differential mode filtering.
- Thermally stable construction supports operating temperatures from -25°C to 100°C.
- Low resistance of 1mΩ and power loss of 3.8W ensures efficiency.
Product Description
Schaffner FN2020 chassis mount EMI filter is engineered for single-phase applications with a maximum current rating of 20A and voltage up to 250V ac/dc, operating at 400Hz frequency. It is designed for industrial and electronic equipment requiring effective EMI suppression to enhance performance and reliability.
The filter features a robust chassis mount construction allowing straightforward and secure mounting within electrical systems. Fast-On termination style enables quick connection to power lines, facilitating easier maintenance and installation.
This filter operates efficiently over a wide temperature range from -25°C to 100°C, ensuring stable performance under varying environmental conditions. The 150nF capacitance and 600μH inductance contribute to superior attenuation of noise and interference, particularly in high-frequency industrial settings.
Its compact size with dimensions 54mm (Length) x 85mm (Depth) x 30.3mm (Height) makes it suitable for integration into tight spaces. The low resistance of 1mΩ minimizes power loss, recorded at only 3.8W, promoting energy efficiency.
Leakage current is controlled at 740μA, maintaining compliance with EMI standards without compromising safety. Although it does not hold additional certifications, it aligns with typical industry requirements for EMI filters in commercial, industrial, laboratory, and HVAC installations.
Supports maximum current of 20A for EMI filtering. Operates at max 250V ac/dc and 400Hz frequency. Chassis mount with Fast-On terminations for easy installation. Single phase, one stage filter with 150nF capacitance for noise attenuation.
Thermal operation range from -25°C to 100°C ensures reliability. Compact dimensions suitable for various equipment designs. Low resistance of 1mΩ and power loss limited to 3.8W optimize efficiency. Leakage current controlled to 740μA for safety compliance.
Ideal for use in electronic components, power connectors, industrial machinery, HVAC systems, and laboratory equipment requiring dependable EMI noise reduction solutions. This Schaffner FN2020 EMI filter provides a balance of performance and robust build quality to enhance system electromagnetic compatibility.
Discover more advanced EMI Filter solutions in the Electronics Components category at EnvMart to suit your specific industrial applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Schaffner FN2020 EMI filter supports a maximum current rating of 20A.
It operates reliably at a maximum voltage of 250V ac/dc.
This EMI filter operates at an operating frequency of 400Hz.
The dimensions of the FN2020 are 54mm in length, 85mm in depth, and 30.3mm in height.
It features a Fast-On termination style for quick and secure connections.
The filter has a capacitance of 150nF, which improves differential mode filtering.
The FN2020 operates efficiently over a temperature range from -25°C to 100°C.
The inductance of this EMI filter is 600μH, contributing to its noise attenuation capabilities.
The leakage current is controlled at 740μA, maintaining compliance with EMI standards.
The power loss for this model is limited to 3.8W, ensuring energy efficiency.
This EMI filter features a chassis mount design for easy installation.
The FN2020 is a single-stage filter designed for targeted EMI attenuation.
