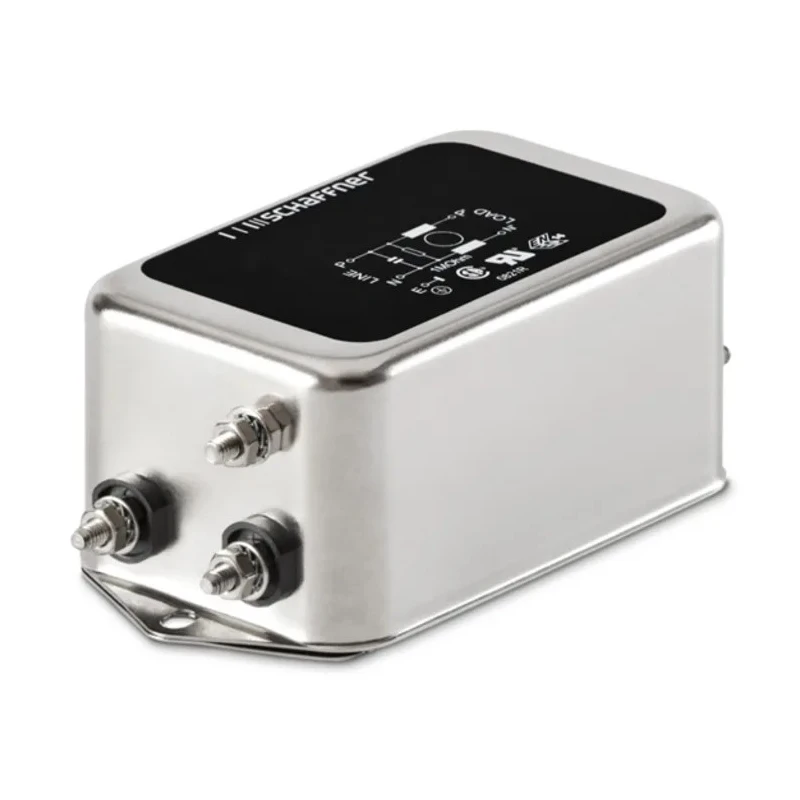

Schaffner Chassis Mount EMI Filter 3A 250V AC/DC 400Hz Fast-On 1 Phase FN2010B
Specifications
| Country of Origin | India |
|---|---|
| Brand | Schaffner |
| Height | 24.3mm |
| Length | 64mm |
| Model | FN2010B |
| Depth | 35mm |
| Mount Type | Chassis Mount |
| Operating Frequency | 400Hz |
| Series | FN2010B |
| Maximum Operating Temperature | 100°C |
| Number Of Stages | 1 |
| Resistance | 1mΩ |
| Capacitance | 100nF |
| Minimum Operating Temperature | -25°C |
| Maximum Current | 3A |
| Number of Phases | 1 |
| Leakage Current | 2μA |
| Maximum Voltage | 250V ac/dc |
| Inductance | 2.5mH |
| Termination Style | Fast-On |
| Power Loss | 1.1W |
Key Features
- Compact chassis mount design with fast-on termination for easy installation.
- Single-phase EMI filter with one stage for effective noise suppression.
- Capacitance of 100nF and inductance of 2.5mH for efficient attenuation.
- Operates reliably between -25°C and 100°C ambient temperatures.
- Extremely low leakage current of 2μA and low resistance of 1mΩ enhances performance.
- Power loss is minimal at 1.1W to ensure energy efficiency.
- Ideally suited for consumer, medical, datacom, office automation and electronic equipment.
- Provides effective EMI noise filtering for power lines at 400Hz operating frequency.
Product Description
Schaffner FN2010B chassis mount EMI filter is a rigorously engineered component designed for noise attenuation in electrical and electronic equipment operating at 3A, 250V AC/DC, and 400Hz.
This EMI filter features a fast-on type termination and sturdy chassis mount for reliable and fast installation in diverse industrial, commercial, and medical devices. It incorporates a single-stage design with a capacitance of 100nF and inductance of 2.5mH to provide effective conducted noise attenuation.
Its robust chemical and thermal design enables operation in harsh environments from -25°C up to 100°C, ensuring reliability and durability over time. Low leakage current of 2μA and low resistance of 1mΩ minimize losses and enhance filtering performance.
Physical dimensions of 64mm length, 35mm depth, and 24.3mm height ensure space-efficient mounting in confined electrical panels and equipment chassis.
This EMI filter is well suited for consumer goods, electrical and electronic appliances, household equipment, medical instrumentation, datacom, and office automation systems requiring EMI compliance at 400Hz power lines.
Schaffner FN2010B series filters offer excellent attenuation performance using high saturation resistance chokes and thermal stability, delivering consistent results in reducing electromagnetic interference.
Compact chassis mount design with fast-on termination for easy installation. Single-phase EMI filter with one stage for effective noise suppression. Capacitance of 100nF and inductance of 2.5mH for efficient attenuation.
Operates reliably between -25°C and 100°C ambient temperatures. Extremely low leakage current of 2μA and low resistance of 1mΩ enhances performance. Power loss is minimal at 1.1W to ensure energy efficiency. Dimensions are 64mm length, 35mm depth, and 24.3mm height with high saturation resistance choke.
Ideally suited for consumer, medical, datacom, office automation and electronic equipment. Provides effective EMI noise filtering for power lines at 400Hz operating frequency. Robust construction designed for general-purpose industrial and commercial applications.
Explore more Schaffner EMI Filters at EnvMart for industrial, laboratory, commercial, and HVAC applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating voltage of this EMI filter is 250V AC/DC.
This model operates at an operating frequency of 400Hz.
It has a capacitance of 100nF and an inductance of 2.5mH for effective noise attenuation.
The dimensions of this EMI filter are 64mm in length, 35mm in depth, and 24.3mm in height.
The leakage current for this EMI filter is extremely low at 2μA.
The power loss for this model is minimal at 1.1W, ensuring energy efficiency.
It operates reliably within a temperature range of -25°C to 100°C.
This model features a fast-on type termination for easy installation.
The FN2010B has a single-stage design for effective noise suppression.
The maximum current rating for this model is 3A.
It is ideally suited for consumer goods, medical instrumentation, datacom, and office automation systems requiring EMI compliance.
The country of origin for this EMI filter is India.
