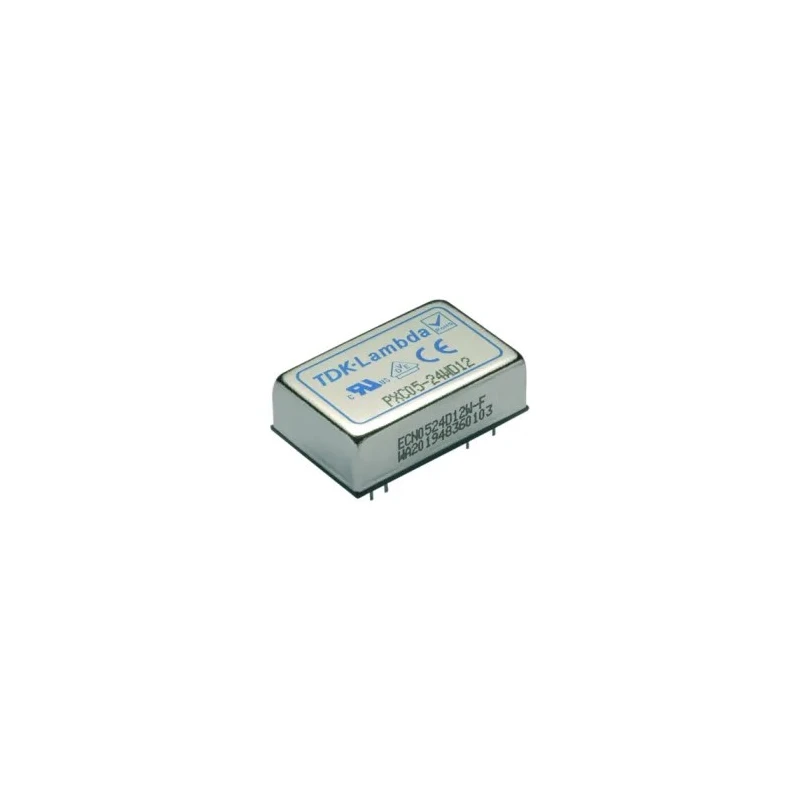

TDK-Lambda PXC05 DC/DC Converter, 12V DC Output, 470mA, 9V to 36V DC Input, 5.64W Power, Surface Mount, Max Temp 100°C PXC05
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / DC-DC Converters TDK-Lambda PXC05 DC/DC Converter, 12V dc/ 470 mA |
| Brand | TDK-Lambda |
| Efficiency | 0.8% |
| Length | 32mm |
| Model | PXC05 |
| Depth | 10.2mm |
| Gross Weight | 16g |
| Width | 11mm |
| Mount Type | Surface |
| Series | PXC05 |
| Maximum Operating Temperature | 100°C |
| Package Type | DIP |
| Minimum Operating Temperature | -25°C |
| MTBF | 3165000h |
| Number of outputs | 1 |
| Ripple and Noise | 50mV Pk-Pk |
| Maximum Output Power | 5.64W |
| Maximum Input Voltage | 36V dc |
| Minimum Input Voltage | 9V dc |
| Number of Pins | 10 |
| Output Voltage 1 | 12V dc |
| Output Current 1 | 470mA |
| Isolation Voltage | 1.6kV |
| Input Ratio | 4:1 |
| Input Ratio4 | 1 |
Key Features
- Wide input voltage range from 9VDC to 36VDC ensures compatibility with multiple power supplies.
- Maximum output power of 5.64 watts suitable for compact, low-power devices.
- Surface mount design allows easy installation on printed circuit boards.
- High reliability with a mean time between failures (MTBF) of 3,165,000 hours.
- Effective five-sided shielding reduces electromagnetic interference.
- Operating temperature range from -25°C to 100°C supports harsh environments.
- Low ripple and noise level of 50mV peak-to-peak for stable output.
- Isolation voltage of 1.6 kV enhances device safety and performance.
Product Description
TDK-Lambda PXC05 Series DC/DC Converter provides dependable voltage conversion with a 12V output at 470mA and a maximum power rating of 5.64 W. Its wide input voltage range from 9V to 36V DC makes it versatile for varying power sources in industrial and electronic equipment.
The unit features a compact surface mount package type with DIP form factor and a robust five-sided shielding to minimize electromagnetic interference. Ideal for PCB integration, it supports harsh ambient conditions with an operating temperature range from -25°C to 100°C.
Designed for reliability, the converter boasts an MTBF of over 3 million hours. It maintains low ripple and noise of 50mV peak-to-peak to ensure clean and stable voltage output for sensitive electronics.
This DC/DC converter includes input to output isolation at 1.6kV and supplies a single output channel, making it suitable for a range of electronic components, power supplies, and semiconductor applications in industrial, manufacturing, and laboratory environments.
Wide input voltage range (9 to 36 V DC) supports flexible power inputs. Stable 12V output voltage with 470mA output current capacity. 5.64W maximum output power for small to medium electronics. Surface mount DIP package ensures compact and easy PCB integration.
Effective shielding to reduce electromagnetic interference. Operating temperature range from -25°C to 100°C for industrial-grade performance. Low ripple and noise level for clean power delivery. 1.6kV isolation voltage for enhanced safety.
Compact size and lightweight for space-restricted applications.
Common applications of the TDK-Lambda PXC05 include industrial control systems, semiconductor equipment, telecommunications modules, laboratory instruments, and general industrial electronics requiring stable DC power conversion.
Discover more TDK-Lambda DC/DC Converters and power supply products on EnvMart to meet your specific design requirements and industrial needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The input voltage range for the TDK-Lambda PXC05 DC/DC converter is from 9V to 36V DC.
This model has a maximum output power of 5.64 watts.
The output voltage is 12V DC with an output current rating of 470mA.
The operating temperature range for this unit is from -25°C to 100°C.
The isolation voltage of the TDK-Lambda PXC05 is 1.6 kV.
This model maintains a low ripple and noise level of 50mV peak-to-peak.
The PXC05 features a surface mount package type with a DIP form factor.
The gross weight of the TDK-Lambda PXC05 is 16 grams.
This converter provides a single output channel.
The MTBF for the TDK-Lambda PXC05 is 3,165,000 hours.
The efficiency rating of this model is 80%.
Common applications include industrial control systems, semiconductor equipment, telecommunications modules, and laboratory instruments.
