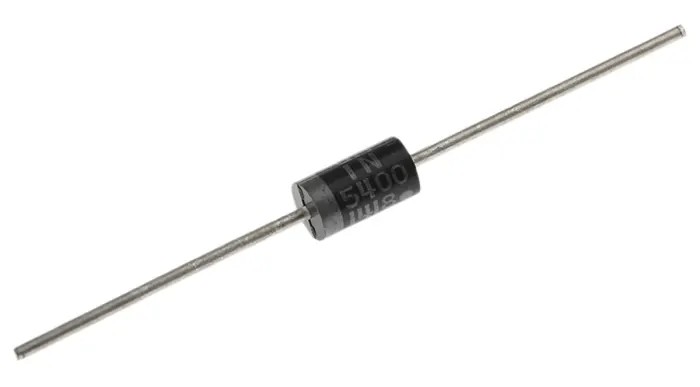

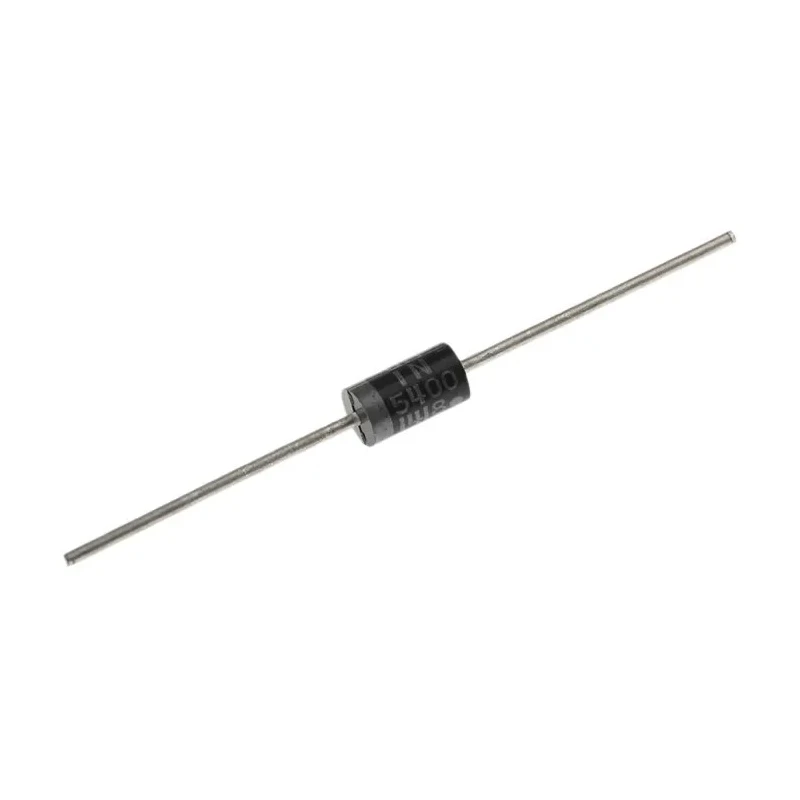

onsemi Silicon Junction Switching Diode, Single, 3 A, 2-Pin, 50 V DO-201AD 1N5400G

Free Delivery in India | Lowest Global Shipping Charges

onsemi Silicon Junction Switching Diode, Single, 3 A, 2-Pin, 50 V DO-201AD 1N5400G

Name: onsemi Silicon Junction Switching Diode, Single, 3 A, 2-Pin, 50 V DO-201AD 1N5400G
Brand: onsemi
SKU: 212138
Price: 0.18 USD
Availability: InStock



Category Switching Diodes Brand onsemi Condition New

Specifications

Country of Origin	India
Diameter	5.3mm
Brand	onsemi
Height	9.5mm
Length	9.5mm
Model	1N5400G
Width	5.3mm
Mount Type	Through Hole
Maximum Operating Temperature	150°C
Package Type	DO-201AD
Sub Type	Silicon Junction
Minimum Operating Temperature	-65°C
Pin Count	2
Diode Configuration	Single
Peak Non-Repetitive Forward Surge Current Ifsm	200A
Maximum Forward Voltage Vf	1V
Maximum Forward Current If	3A
Maximum Peak Reverse Repetitive Voltage Vrrm	50V
ON Semi 1N5400G Diode, 50V 3A, 2-Pin DO-201ADBrand	ON Semiconductor

Key Features

Designed as a single silicon junction switching diode.
Maximum forward current rating of 3 amperes ensures reliable operation.
Rated maximum peak reverse voltage of 50 volts for protection.
Through-hole mount type with a DO-201AD package form factor.
Operating temperature range from -65°C to 150°C for versatile use.
Peak non-repetitive forward surge current of 200 amperes for transient tolerance.
2-pin configuration for easy integration into electronic circuits.

Product Description

onsemi 1N5400G Silicon Junction Switching Diode is a robust, single silicon junction diode designed for switching and rectification tasks in electronic circuits. Featuring a maximum continuous forward current rating of 3 A and a peak repetitive reverse voltage of 50 V, this DO-201AD packaged diode is ideal for various power electronic applications requiring reliable semiconductor switching components.

The diode's through-hole mount type and 2-pin design allow easy assembly on printed circuit boards, supporting conventional soldering procedures. Its compact size, with dimensions approximately 9.5 mm in length and 5.3 mm in diameter, makes it suitable for space-constrained applications. The device supports a wide operating temperature range from -65°C to 150°C, contributing to its durability and environmental tolerance in both industrial and laboratory settings.

The diode also supports a peak non-repetitive forward surge current of 200 A, providing transient handling capabilities during power surges, making it a reliable choice for power rectification and switching control in electrical devices, power supplies, and HVAC systems.

Single silicon junction diode configuration ensures efficient operation. Continuous forward current of 3 A maintains stable performance. Maximum peak reverse voltage of 50 V protects against voltage spikes. Through-hole DO-201AD package facilitates manual or automated PCB assembly.

Wide thermal operating range (-65°C to 150°C) suits varying environments. High surge current tolerance up to 200 A safeguards against transient conditions. Compact dimensions optimize use in confined electronic device spaces.

2-pin construction allows straightforward circuit integration.

This diode is commonly used in industrial power electronics, laboratory equipment, consumer electronic devices, manufacturing controls, and HVAC systems requiring reliable rectifiers and switching control components. Its endurance and specifications make it ideal for applications needing robust, high current semiconductor diodes.

Explore more semiconductor devices and Switching Diodes like the 1N5400G from onsemi on EnvMart for comprehensive power and electronic component solutions.
