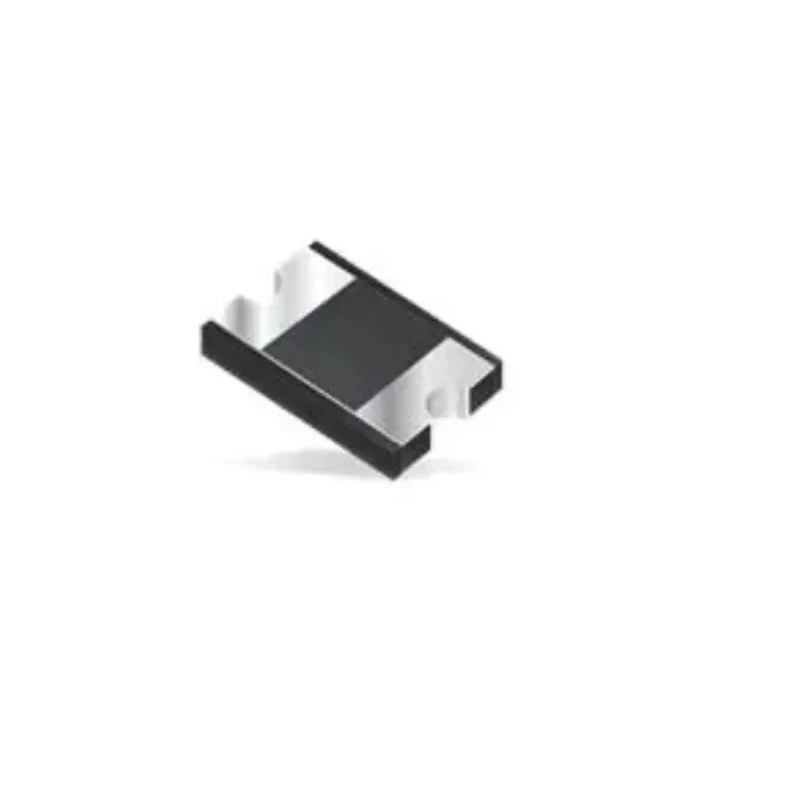

Bourns 1 kV 1 A Low Loss Diode CD214A-S1M DO-214AC Surface Mount, Single 2-Pin

Bourns CD214A-S1M is a low loss rectifier diode designed for robust electronic applications, supporting a maximum repetitive peak reverse voltage of 1 kV and a forward continuous current of 1 A. This glass passivated diode features a surface mount configuration with the DO-214AC (SMA) package, offering compact size and reliable performance for space-constrained circuit boards.

Engineered for industrial, automotive, and commercial electronics, the CD214A-S1M meets AEC-Q101 automotive standards and provides high efficiency along with low power loss, making it ideal for demanding rectification tasks. The diode supports a wide operating temperature range from -65°C to 175°C, enabling stable operation under extreme conditions. The maximum forward voltage drop is rated at 1 V and the peak forward surge current capability reaches 30 A, making it suitable for transient protection and power conversion circuits.

Single configuration for straightforward integration in rectifier and freewheeling applications. Glass passivated construction enhances stability and reduces leakage current under stress. Maximum reverse current is limited to 5μA, ensuring minimal leakage and reliable operation in precision electronics.

Compact physical dimensions - 4.5 mm length, 2.2 mm width, and 1.16 mm height - allow installation in embedded or densely populated boards. Suitable for environments requiring RoHS compliance and UL 94V-0 flammability rating.

Utilization in power management, LED lighting, automotive ECUs, battery chargers, and industrial automation controllers.

Its DO-214AC package facilitates automated soldering and assembly processes, adding manufacturing convenience. Bourns diodes are renowned for long-term reliability and stable characteristics in complex electronic assemblies.
