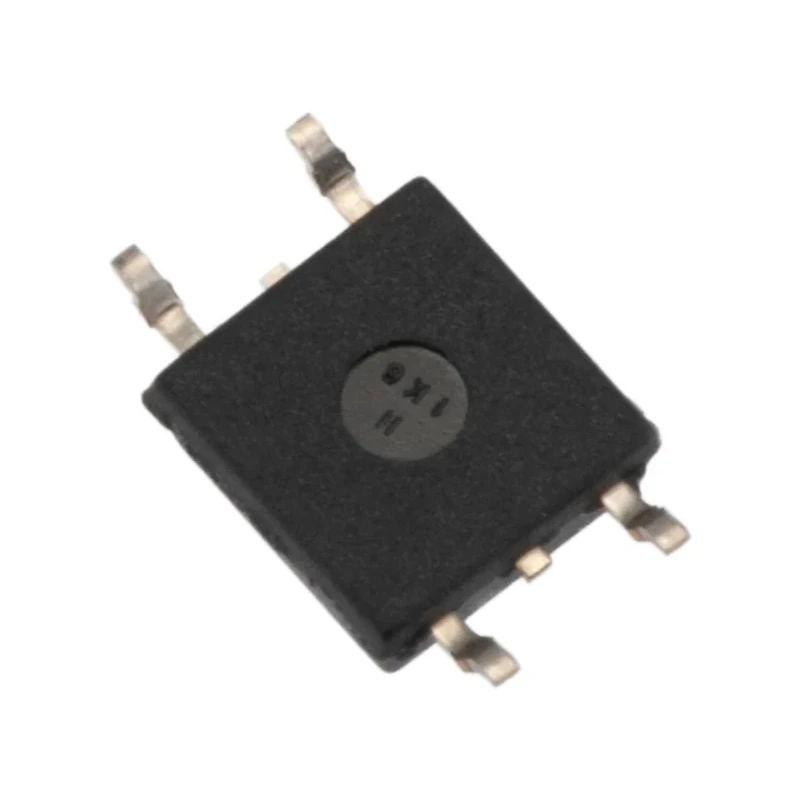

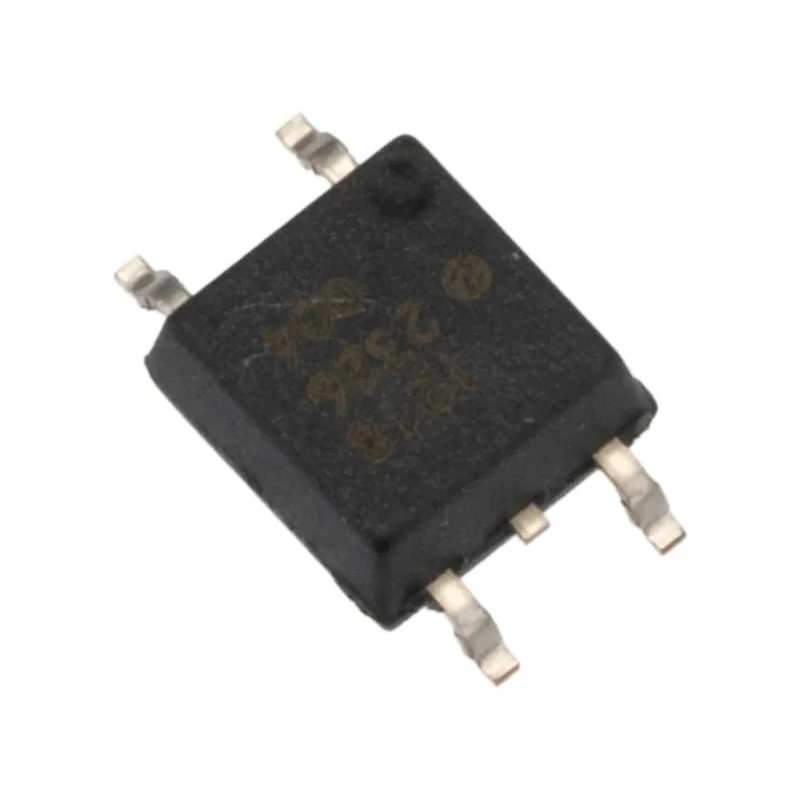

Broadcom ASSR-1218 Series Solid State Relay 60 V Load Voltage 0.2 A Load Current Surface Mount MOSFET Output ASSR-1218-003E
Specifications
| Country of Origin | India |
|---|---|
| Brand | Broadcom |
| Height | 2mm |
| Length | 4.3mm |
| Model | ASSR-1218-003E |
| Width | 4.4mm |
| Mount Type | Surface |
| Output type | MOSFET |
| Series | ASSR-1218 |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPST |
| Capacitance | 0.4pF |
| Minimum Operating Temperature | -40°C |
| Terminal type | 4-Pin |
| Maximum Load Current | 0.2A |
| Standards/Approvals | IEC, RoHS, CSA, UL |
| Maximum Load Voltage | 60V |
| Minimum Load Voltage | -60V |
| Minimum Control Voltage | 1.1V |
| Maximum Control Voltage | 0.8V |
| Off State Leakage Current | 1μA |
| On State Resistance | 1Ω |
Key Features
- Operates with a maximum load current of 0.2 A and maximum load voltage of 60 V.
- Features a compact surface-mount 4-pin SPST configuration for efficient PCB layout.
- MOSFET output provides low conduction loss with 1 ohm on-resistance for minimal voltage drop.
- Wide operating temperature range from -40°C to 85°C supports varied environments.
- Low off-state leakage current of 1 μA minimizes standby power consumption.
- Capacitance of 0.4 pF reduces signal coupling during switching operations.
- Suitable for battery management, telecommunications switching, and precise measurement systems.
- Complies with IEC, RoHS, CSA, and UL industry standards ensuring regulatory compliance.
Product Description
Broadcom ASSR-1218-003E Solid State Relay is a compact electronic switching device designed specifically for controlling low-current DC loads with semiconductor output devices.
This surface-mount relay features a MOSFET output type that enables efficient switching with low conduction losses and 1 ohm on-state resistance, which helps minimize voltage drop during operation.
The relay accommodates maximum load currents up to 0.2 A and load voltages as high as 60 V. It also tolerates negative load voltages down to -60 V while maintaining low off-state leakage of 1 μA, supporting energy-efficient standby states.
Its small form factor with dimensions 4.3 mm length, 4.4 mm width, and 2 mm height allows for dense PCB layouts. The device operates reliably in a broad temperature range from -40°C to 85°C, suitable for applications exposed to variable ambient conditions.
Applications include battery management and portable power control circuits, industrial control logic interfaces, miniature relay replacements on densely populated boards, telecommunications line switching, and precision signal routing.
The relay's input control voltage starts at 1.1 V for activation and has a maximum control voltage specification of 0.8 V, ensuring stable switching performance. This product is manufactured to meet rigorous IEC, RoHS, CSA, and UL standards, guaranteeing compliance and safety for industrial and commercial electronics applications.
Operates with maximum load current of 0.2 A and maximum load voltage of 60 V. Compact surface mount 4-pin SPST configuration for efficient PCB integration. MOSFET output with 1 Ω on-state resistance reduces power loss. Wide -40°C to 85°C operating temperature range for varied ambient conditions.
Low off-state leakage current of 1 μA minimizes energy consumption. Reduced switching-induced signal coupling with 0.4 pF capacitance. Complies with IEC, RoHS, CSA, and UL standards for safety and reliability. Ideal for battery management, telecommunications, and industrial control applications.
Explore more Solid State Relays and electronics components at EnvMart for your industrial and laboratory needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum load current for this model is 0.2 A, and it can handle load voltages up to 60 V.
This relay features a MOSFET output type, which provides low conduction loss with an on-state resistance of 1 ohm.
The dimensions of this model are 4.3 mm in length, 4.4 mm in width, and 2 mm in height.
It operates reliably within a temperature range of -40°C to 85°C.
The off-state leakage current is 1 μA, which helps minimize energy consumption during standby.
This model has a single-pole, single-throw (SPST) contact configuration.
The minimum control voltage required for activation is 1.1 V.
This relay complies with IEC, RoHS, CSA, and UL industry standards.
It is suitable for applications such as battery management, telecommunications switching, and precision measurement systems.
The capacitance of the ASSR-1218-003E is 0.4 pF, which reduces signal coupling during switching operations.
This model uses a surface mount configuration, allowing for efficient PCB integration.
The minimum load voltage that this relay can tolerate is -60 V.
