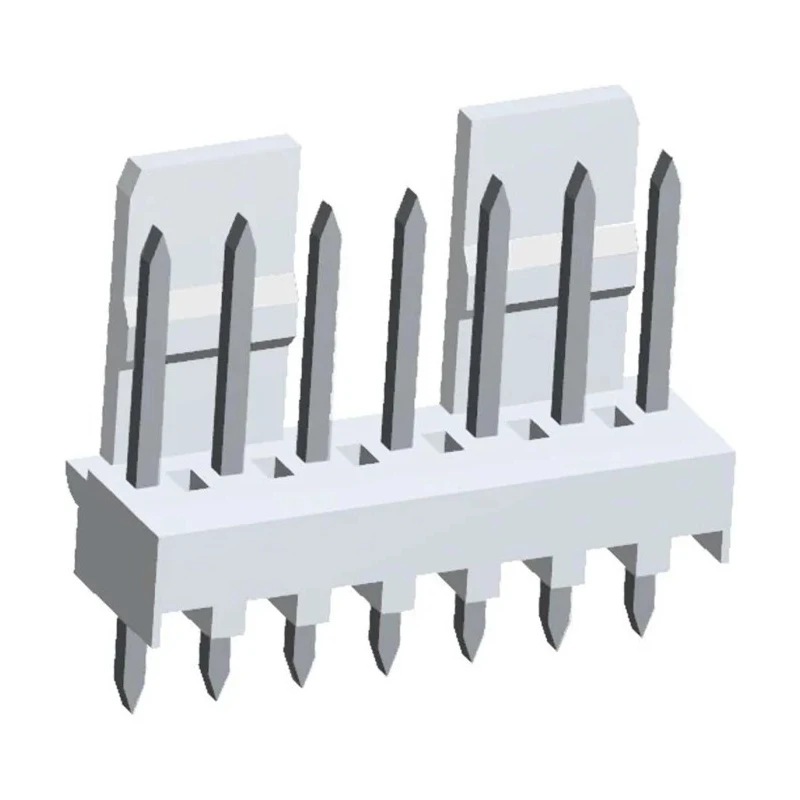

Molex Mini-Latch Series Straight Through Hole Pin Header, 7 Contacts, 2.5 mm Pitch, 1 Row, Unshrouded 22-04-1071
Specifications
| Country of Origin | Korea |
|---|---|
| Voltage | 250V |
| Brand | Molex |
| Orientation | Straight |
| Current | 3A |
| Mount Type | Through Hole |
| Housing Material | Nylon |
| Contact Material | Brass |
| Series | Mini-Latch |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 1 |
| Pitch | 2.5mm |
| Contact Plating | Tin |
| Number of Contacts | 7 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Unshrouded |
| Connector System | Wire-to-Board |
Key Features
- Features a friction locking ramp ensuring a secure mating connection.
- Constructed with nylon housing and brass contacts plated with tin for durability.
- Supports operating voltages up to 250V and currents up to 3A.
- Designed for through hole mount with straight orientation and male contact gender.
- Operational temperature range from -40°C to 105°C.
- Unshrouded design facilitates easier PCB access and solder termination.
- Compatible with Molex Mini-Latch 51191 and KK series 5051 crimp housings.
- Manufactured in Korea, Republic Of, ensuring high quality standards.
Product Description
Molex 22-04-1071 Mini-Latch Series Straight Through Hole Pin Header provides a reliable wire-to-board connection solution with 7 contacts arranged in a single row. Featuring a 2.5 mm pitch and unshrouded design, this pin header is optimized for various electronic applications requiring secure connections and flexibility.
The friction locking ramp mechanism delivers a secure mating connection, preventing accidental disconnections during operation. Constructed with a durable nylon housing and brass contacts with tin plating, the header offers excellent electrical conductivity and mechanical robustness.
Designed for through hole mounting, the pin header supports a maximum operating voltage of 250V and continuous current rating of 3A. It operates reliably within a temperature range of -40°C to 105°C, making it suitable for demanding industrial and commercial electronic assemblies.
This product is compatible with Molex Mini-Latch 51191 series and KK series 5051 2.50 mm crimp housings, enabling versatile configurations in wire-to-board connections. Features a friction locking ramp for secure mating connections.
Constructed from nylon housing and brass, tin-plated contacts. Supports 3A current at 250V voltage rating. Single row with 7 contacts at 2.5 mm pitch. Through hole mount type, straight orientation. Operates between -40°C and 105°C reliably.
Unshrouded pin header for easy PCB assembly access. Manufactured in Korea, Republic Of.
This Molex Mini-Latch pin header is ideal for use in automotive electronics, printers, data communication equipment, monitors, and other industrial electronics where secure, reliable wire-to-board connections are critical. Its robust design and secure connection features meet the demands of high-volume manufacturing and performance-sensitive applications.
Explore our extensive range of PCB connectors and headers at EnvMart to find compatible components for your assembly needs.
Explore more products in our PCB Pin Header category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This pin header supports a maximum operating voltage of 250V and a continuous current rating of 3A.
It features a 2.5 mm pitch and has 7 contacts arranged in a single row.
The housing is made of nylon, while the contacts are brass plated with tin for enhanced electrical conductivity.
It operates reliably within a temperature range of -40°C to 105°C.
Yes, it is compatible with Molex Mini-Latch 51191 series and KK series 5051 crimp housings.
This model is designed for through hole mounting with a straight orientation.
The contacts are male gender, suitable for wire-to-board connections.
It uses solder termination for secure connections.
It features a friction locking ramp mechanism that ensures a secure mating connection, preventing accidental disconnections.
It is manufactured in the Republic of Korea, ensuring adherence to high quality standards.
It is ideal for use in automotive electronics, printers, data communication equipment, monitors, and other industrial electronics requiring secure connections.
The unshrouded design facilitates easier access to the PCB for assembly and solder termination.
