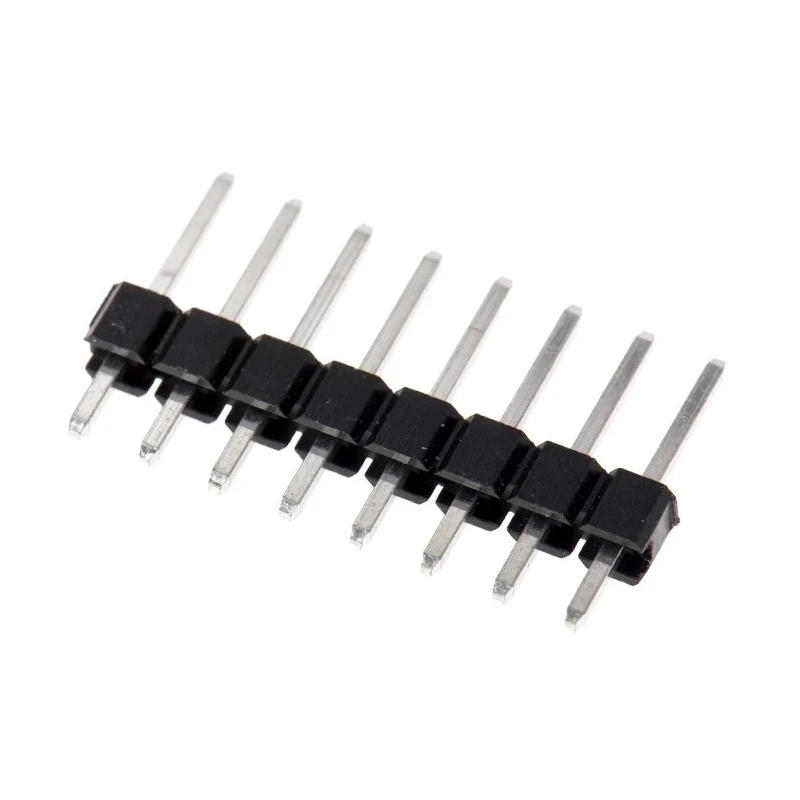

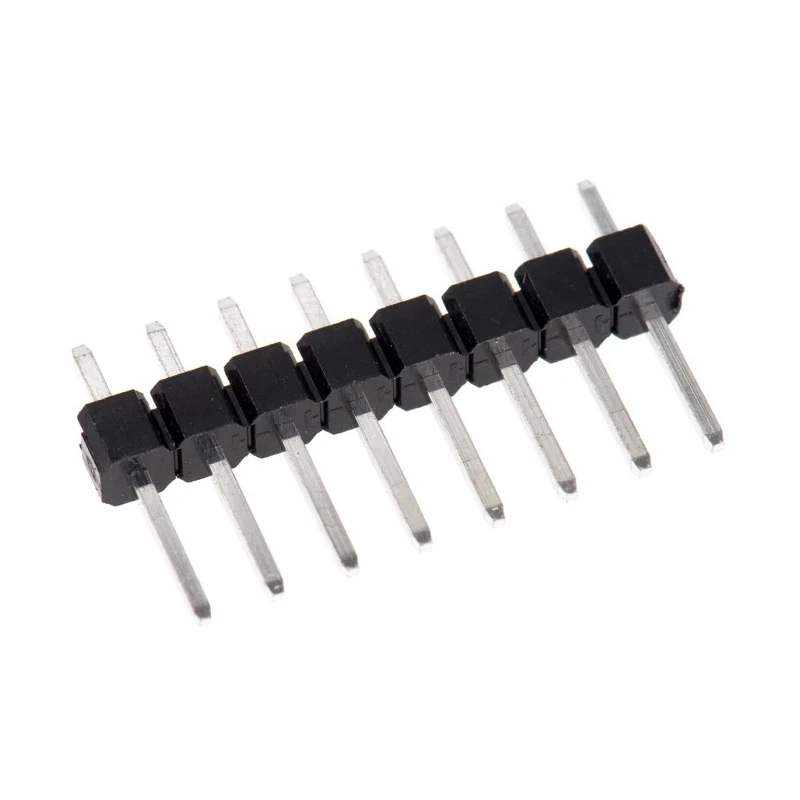

HARWIN M20 Series Straight Through Hole Pin Header 8 Contacts 2.54 mm Pitch 1 Row Unshrouded M20-9990846
Specifications
| Country of Origin | India |
|---|---|
| Brand | HARWIN |
| Orientation | Straight |
| Current | 3A |
| Model | M20-9990846 |
| Mount Type | Through Hole |
| Housing Material | Nylon |
| Contact Material | Brass |
| Series | M20 |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 1 |
| Pitch | 2.54mm |
| Contact Plating | Tin |
| Number of Contacts | 8 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Unshrouded |
| Connector System | Board-to-Board, Wire-to-Board |
| Tail Pin Length | 3mm |
| Mating Pin Length | 6.1mm |
Key Features
- Designed for Board-to-Board and Wire-to-Board connections.
- Constructed with brass contacts plated with tin for reliable conductivity.
- Nylon housing withstands reflow soldering temperatures.
- Operating temperature range from -40°C to 105°C.
- Tail pin length of 3 mm and mating pin length of 6.1 mm.
- Unshrouded straight orientation with single row layout for flexible applications.
- Rated for current up to 3 A ensuring safe electrical performance.
- Versatile use in embedded PCs, motherboards, and large electronic systems.
Product Description
HARWIN M20-9990846 Series Straight Through Hole Pin Header is a precision-engineered PCB connector with 8 contacts arranged in a single row and a 2.54 mm pitch, designed specifically for through hole mounting applications. Its unshrouded design facilitates easy soldering and reliable electrical connections in various industrial, electronic, and manufacturing environments.
The connector features a brass contact material with tin plating for enhanced conductivity and corrosion resistance. The housing is made from a high-temperature resistant nylon thermoplastic, allowing it to endure solder reflow processes commonly used in modern PCB assembly.
Operating from a minimum temperature of -40°C up to a maximum of 105°C, this header is suitable for robust environmental conditions. The tail pin length of 3 mm and mating pin length of 6.1 mm ensures a secure mechanical and electrical fit with matching sockets and housings. The connector’s straight orientation and unshrouded layout provide flexibility in board design and assembly footprint.
This product series is widely applied in embedded computer systems, motherboards, industrial controls, and large electronic system assemblies, making it a versatile and standard choice for designers and engineers. Its housing design includes castellations to allow cutting to smaller sizes if needed, with the caveat to handle tails carefully to avoid damage.
Designed for Board-to-Board and Wire-to-Board applications. Brass contacts with tin plating ensure electrical reliability. High-temperature nylon housing supports reflow soldering processes. Wide operating temperature range from -40°C to 105°C.
Single row, unshrouded design for flexible mounting options. Current rating of up to 3 A compatible with industrial electronics. Tail pin length 3 mm and mating pin length 6.1 mm for secure connections. Housing is designed to be cut to size carefully for custom fits.
Ideal for embedded PCs, motherboards, industrial monitoring, and communications equipment. Explore more HARWIN connectors and PCB Headers at EnvMart for your electronic component needs.
