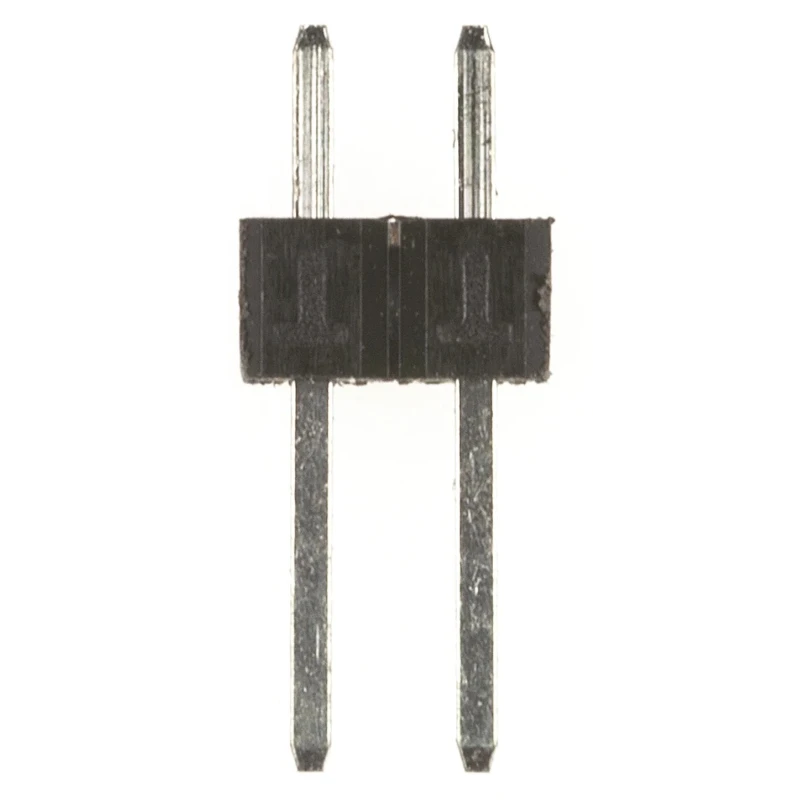

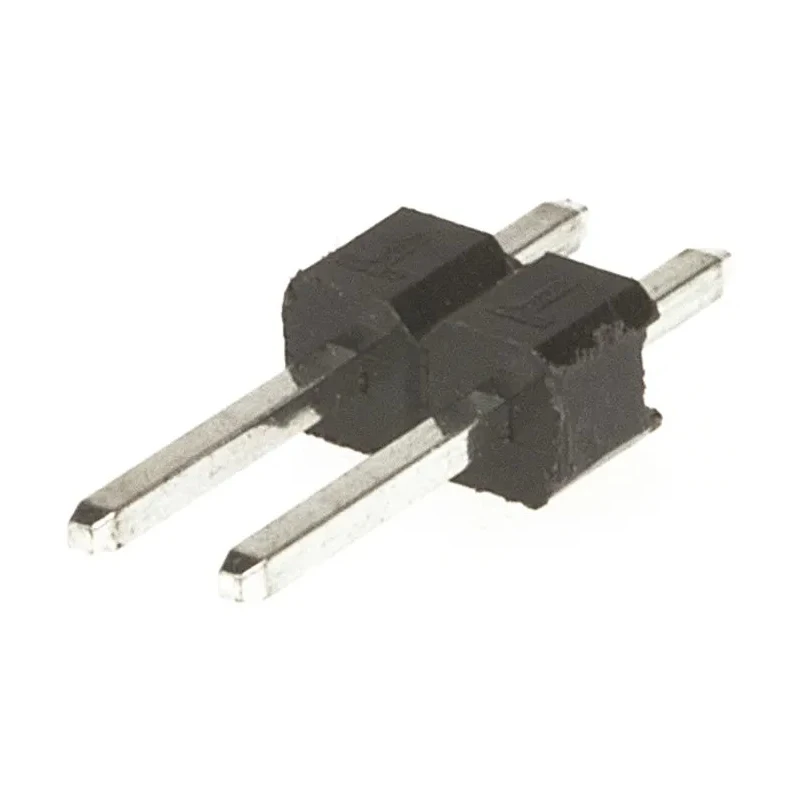

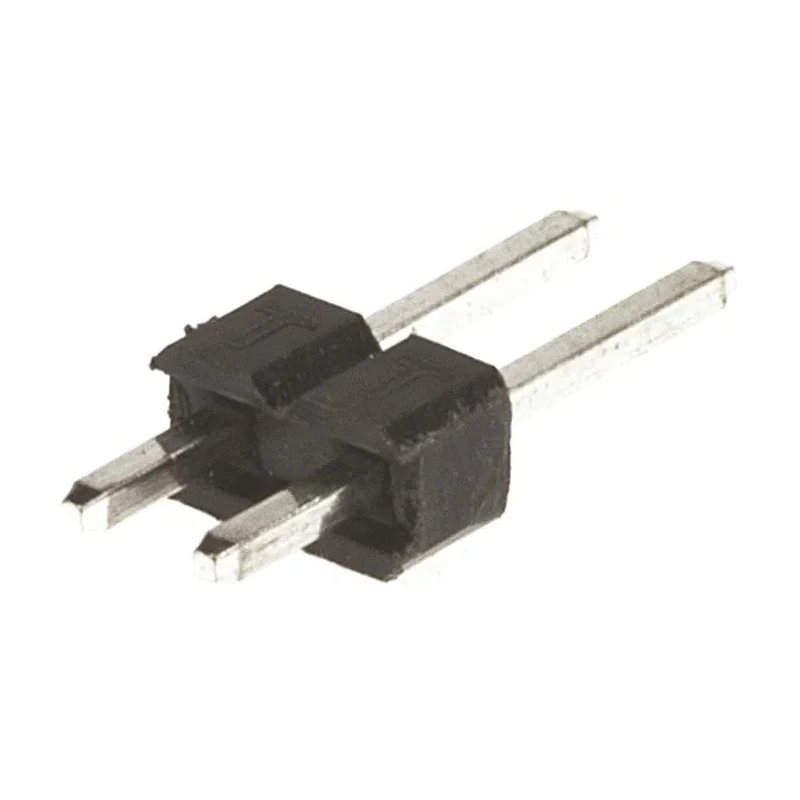

HARWIN M20 Series Straight Through Hole Pin Header, 2 Contacts, 2.54 mm Pitch, 1 Row, Unshrouded M20-9990245

HARWIN M20-9990245 is a straight through hole pin header connector engineered with precision for electronic components and PCB applications. Featuring a 2.54 mm pitch and 2 gold-plated brass contacts housed in robust nylon, this unshrouded single row header is optimized for secure and reliable connections.

The connector is designed to endure reflow soldering processes thanks to its high-temperature thermoplastic housing. It supports a current rating of 3 amperes and operates efficiently across a temperature span from minus 40 to 105 degrees Celsius, suitable for industrial and commercial electronics environments.

With a tail pin length of 3 mm and mating pin length of 6.1 mm, it provides consistent contact engagement. The unshrouded form factor facilitates easy access for assembly and repair, making it a versatile choice for embedded PCBs, motherboards, communication devices, drives, and control systems.

These M20 series pin headers support both board-to-board and wire-to-board connector systems. Designed for through hole mounting, they offer flexibility and dependable performance in various embedded electronic and industrial systems.

Brass contacts with gold plating ensure enhanced electrical conductivity. High-temperature nylon housing supports reflow soldering requirements. Unshrouded single row pin header with 2 contacts and 2.54 mm pitch. Rated current 3A and temperature range -40°C to 105°C allows diverse applications.

Compatible with board-to-board and wire-to-board systems using solder termination. Durable pins with 3 mm tail length and 6.1 mm mating length for secure mating.

This HARWIN M20 series pin header is suitable for industrial, consumer electronics, communication, and computing applications where reliable PCB connection is critical. Explore further HARWIN connectors in the PCB Pin Header category on EnvMart for complete connector solutions.
