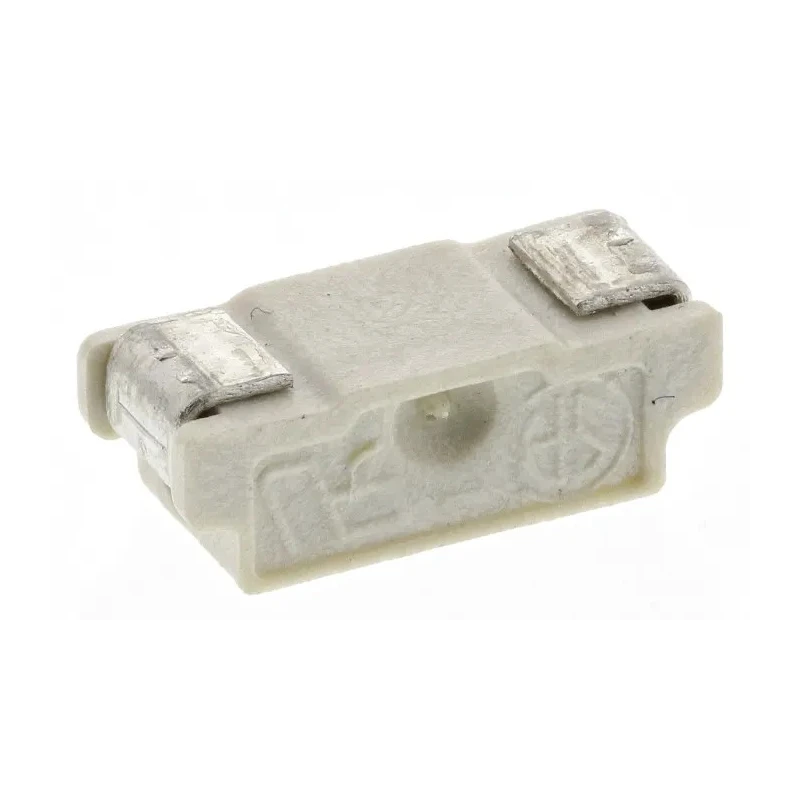

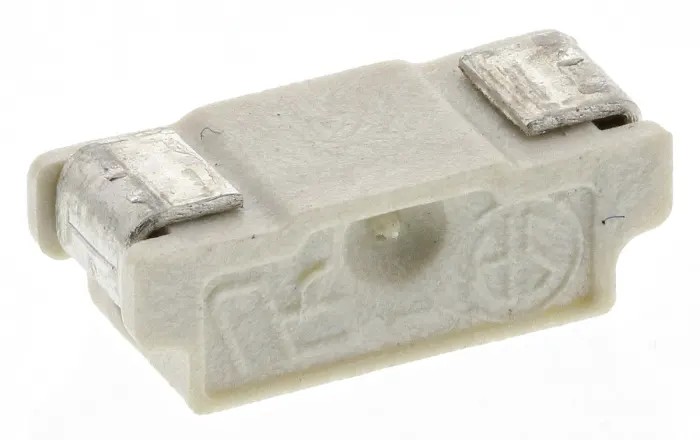

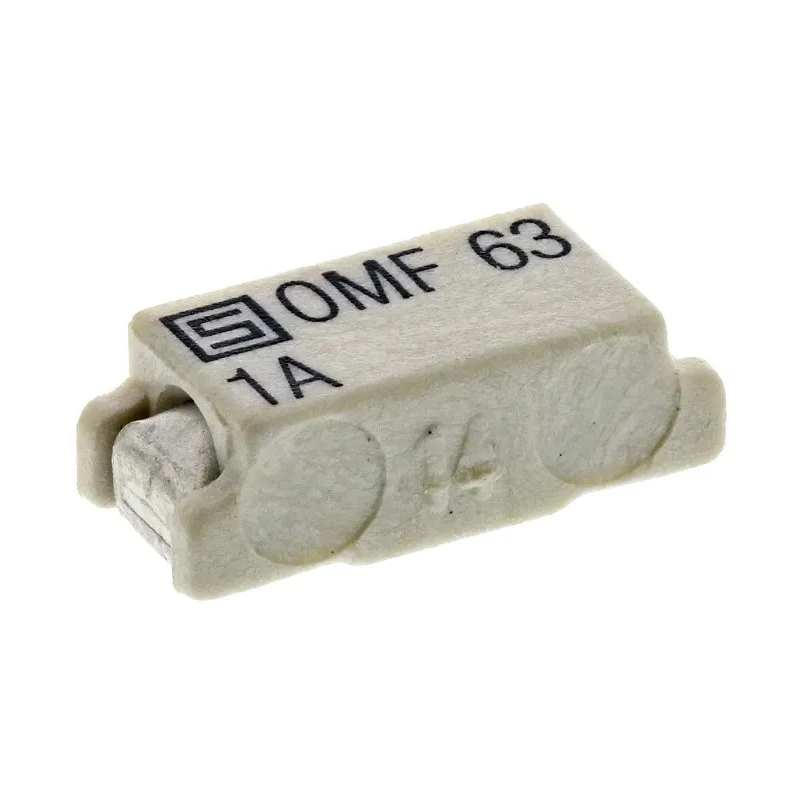

Schurter Non-Resettable Fuse 1A, 63 V AC/DC Thermoplastic Body, Fast Acting OMF 63 Series 3402.0009.11
Specifications
| Country of Origin | Switzerland |
|---|---|
| Voltage | 63, 63V ac |
| Brand | Schurter |
| Body Material | Thermoplastic |
| Height | 2.6mm |
| Depth | 7.4mm |
| Width | 3.1mm |
| Current Rating | 1A |
| Series | OMF 63 |
| Maximum Operating Temperature | -55°C |
| Package Type | Plastic Bag |
| Minimum Operating Temperature | 125°C |
| Breaking Capacity | 50A |
| Terminal Material | Tin Plated Copper |
| Standards/Approvals | CE, CSA, UL 248-14, RoHS, REACH |
| Fuse Characteristics | Fast Acting |
| Schurter SMD Non Resettable Fuse 1A, 250V acBrand | Schurter |
Key Features
- Rated current is 1A for reliable circuit protection.
- Fast acting fuse characteristics provide excellent I2t values.
- Compact dimensions with 3.1mm width, 2.6mm height, and 7.4mm depth.
- High breaking capacity rated at 50A for safety under fault conditions.
- Body material is durable thermoplastic designed for SMD processes.
- Suitable for low voltage applications such as alarm systems and power supplies.
- Operating temperature range from -55°C to 125°C ensures reliable performance.
- Terminals feature tin plated copper for optimal electrical contact.
Product Description
Schurter 3402.0009.11 is a non-resettable fast acting fuse with a rated current of 1 ampere and voltage capability of 63 volts AC and DC. Constructed from a thermoplastic body material, this miniature surface mount fuse is suitable for protecting sensitive electronic circuits in diverse applications including industrial automation, laboratory equipment, medical devices, telecommunications, and consumer electronics.
The compact design with a width of 3.1 mm, height of 2.6 mm, and depth of 7.4 mm allows for efficient use of PCB space and compatibility with standard SMD soldering processes. The fuse delivers high breaking capacity of 50 amperes, ensuring safe interruption under short circuit conditions.
Schurter's OMF 63 series fuse is fast acting, offering excellent I2t characteristics, ideal for safeguarding high-value silicon integrated circuits in audio-visual equipment, computer motherboards, portable devices, and alarm systems. The tin plated copper terminals provide reliable electrical connections and durability.
Operating temperatures range between -55°C and 125°C, supporting use in a wide range of environmental conditions. This fuse complies with global regulatory standards including UL 248-14, CE, CSA certification, RoHS, and REACH directives, assuring quality and safety.
Rated current of 1A for precise circuit protection. Voltage rating of 63 V AC and DC suitable for various electronics. Thermoplastic body material ensures robust mechanical strength. Compact dimensions minimize PCB footprint.
High breaking capacity of 50A for fault condition safety. Fast acting fuse characteristics with excellent I2t values. Suitable for surface mount technology soldering processes. Wide operating temperature range from -55°C to 125°C.
Tinned copper terminals for reliable electrical contact. Meets CE, CSA, UL 248-14, RoHS, and REACH standards.
This Schurter non-resettable fuse is an essential component for industrial, commercial, laboratory, HVAC, manufacturing, and electronic protection applications. It offers reliable, space-saving circuit protection where fast response and precision are critical. Explore a wide range of Schurter components and fuse technologies on EnvMart for your electrical safety requirements.
Explore more products in our Non Resettable Fuse category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The rated current of this fuse is 1 ampere, providing reliable circuit protection.
This model has a voltage rating of 63 volts AC and DC, suitable for various electronic applications.
The dimensions of this fuse are 3.1 mm in width, 2.6 mm in height, and 7.4 mm in depth, allowing for efficient PCB space usage.
The breaking capacity of this fuse is rated at 50 amperes, ensuring safety under fault conditions.
The fuse is constructed with a thermoplastic body and features tin plated copper terminals for reliable electrical contact.
The operating temperature range for this fuse is from -55°C to 125°C, ensuring reliable performance in various environments.
This fuse complies with several global standards including CE, CSA, UL 248-14, RoHS, and REACH, assuring quality and safety.
This model features fast acting fuse characteristics, providing excellent I2t values for circuit protection.
Yes, this fuse is designed for compatibility with surface mount technology soldering processes, making it suitable for compact electronic applications.
This fuse is suitable for protecting sensitive electronic circuits in applications such as industrial automation, laboratory equipment, medical devices, telecommunications, and consumer electronics.
This fuse is packaged in a plastic bag, ensuring protection during transport and storage.
This fuse belongs to the OMF 63 series, which is known for its fast acting characteristics and high breaking capacity.
