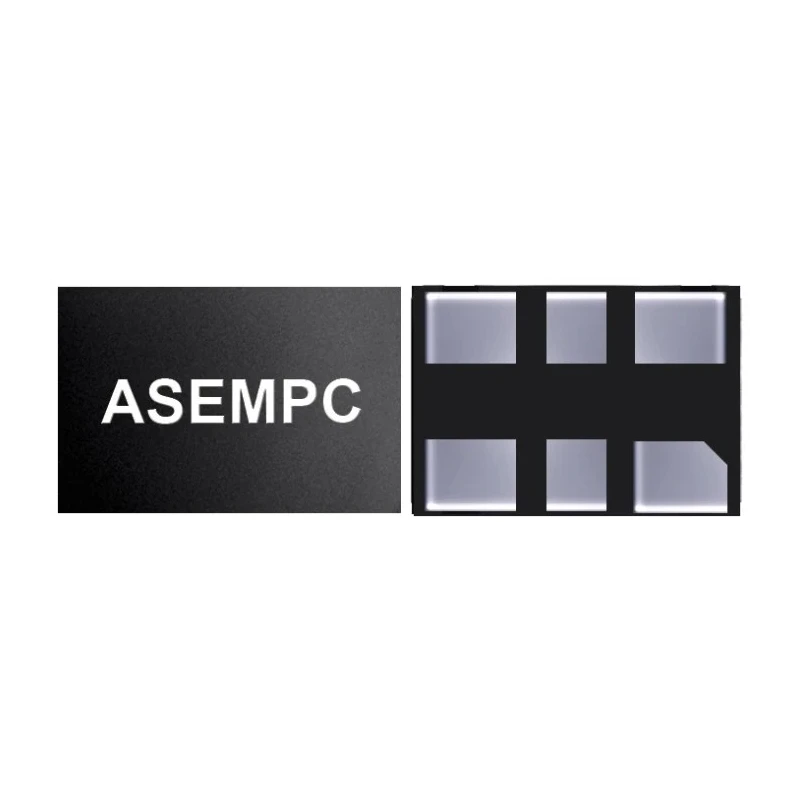

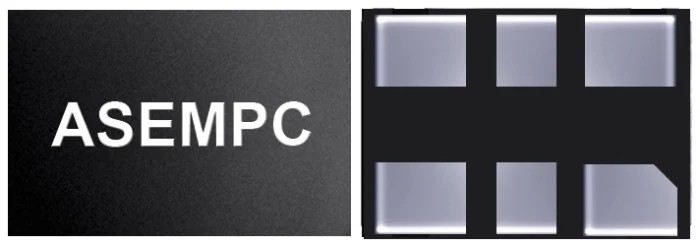

Abracon 25 MHz MEMS Oscillator, 6-Pin QFN Surface Mount, CMOS Output, ±25 ppm Frequency Stability ASEMPC-25.000MHZ-LR-T
Specifications
| Country of Origin | India |
|---|---|
| Brand | Abracon |
| Height | 0.85mm |
| Length | 3.2mm |
| Model | ASEMPC-25.000MHZ-LR-T |
| Packaging | Tape & Reel |
| Width | 2.5mm |
| Mount Type | Surface |
| Series | ASEMP |
| Maximum Operating Temperature | 85°C |
| Package Type | QFN |
| Minimum Operating Temperature | -40°C |
| Maximum Output Frequency | 25MHz |
| Standards/Approvals | RoHS/RoHS II |
| Pin Count | 6 |
| Output Level | CMOS |
| Maximum Operating Supply Voltage | 3.6V |
| Minimum Operating Supply Voltage | 2.25V |
Key Features
- Operates over a temperature range from -40°C to 85°C for reliable performance.
- Offers low power consumption suitable for high speed communication applications.
- Packaged in tape and reel for efficient automated assembly.
- Compact dimensions of 3.2mm length, 2.5mm width, and 0.85mm height enable space-saving designs.
- Compliant with RoHS / RoHS II standards ensuring environmental safety.
- Supports supply voltage from 2.25V minimum up to 3.6V maximum.
- Includes standby or disable tristate function for flexible signal control.
- Designed for use in Storage Area Networks, Passive Optical Networks, Ethernet, PCI Express, and Display port applications.
Product Description
Abracon ASEMPC-25.000MHZ-LR-T MEMS Oscillator is a precision 25 MHz device with a 6-pin QFN package and CMOS output configuration, designed for surface mount technology. It provides exceptional frequency stability of ±25 ppm over an operating temperature range of -40°C to 85°C, making it suitable for demanding industrial, telecommunications, and networking environments.
This oscillator supports a supply voltage ranging from 2.25V to 3.6V, ensuring compatibility with various system voltages while maintaining low power consumption. Its compact dimensions (3.2mm by 2.5mm by 0.85mm) allow it to fit into space-constrained designs.
Manufactured to RoHS and RoHS II environmental standards, the device ensures compliance for green electronics manufacturing. Packaged in tape and reel format, it facilitates efficient automated placement on PCBs in high-volume production.
The oscillator finds applications across Storage Area Networks (SATA, SAS, Fiber Channel), Passive Optical Networks (EPON, GPON, 10G-EPON, 10G-PON), Ethernet 1G and 10GBASE-T standards, PCI Express, Display port, and related communications and data transfer technologies.
Additional features include a standby or disable tristate function, and robust design for high performance in industrial and telecommunications sectors. Operates reliably between -40°C and 85°C temperature range. Compact 6-Pin QFN surface mount package.
25 MHz maximum output frequency with ±25 ppm frequency stability. Low power consumption suited for high speed communication. Complies with RoHS and RoHS II standards. Supply voltage range from 2.25V to 3.6V. Packaged in tape and reel format for manufacturing efficiency.
Intended for industrial, telecommunications, networking, and laboratory applications. Explore more MEMS Oscillators and precision timing components at EnvMart to enhance your electronic designs with trusted, high-quality Abracon products.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum output frequency of this model is 25 MHz.
It operates reliably over a temperature range from -40°C to 85°C.
This unit supports a supply voltage ranging from 2.25V to 3.6V.
It provides a CMOS output level.
The dimensions are 3.2mm in length, 2.5mm in width, and 0.85mm in height.
It is packaged in tape and reel format for efficient automated assembly.
It complies with RoHS and RoHS II standards, ensuring environmental safety.
It is designed for use in Storage Area Networks, Passive Optical Networks, Ethernet, PCI Express, and Display port applications.
This oscillator has a pin count of 6.
Yes, it includes a standby or disable tristate function for flexible signal control.
The series designation for this model is ASEMP.
The country of origin for this oscillator is India.
