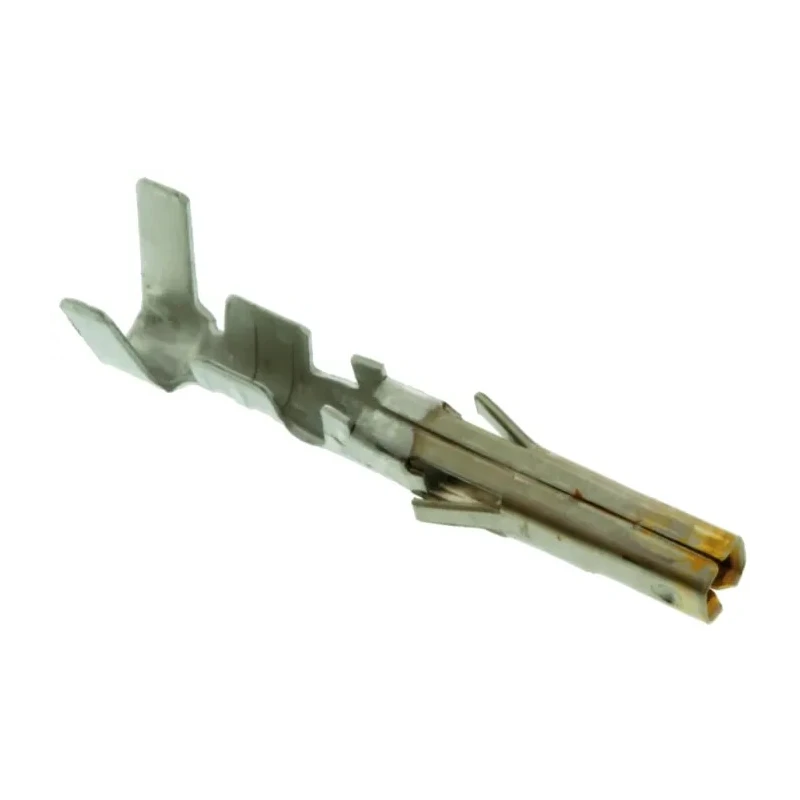

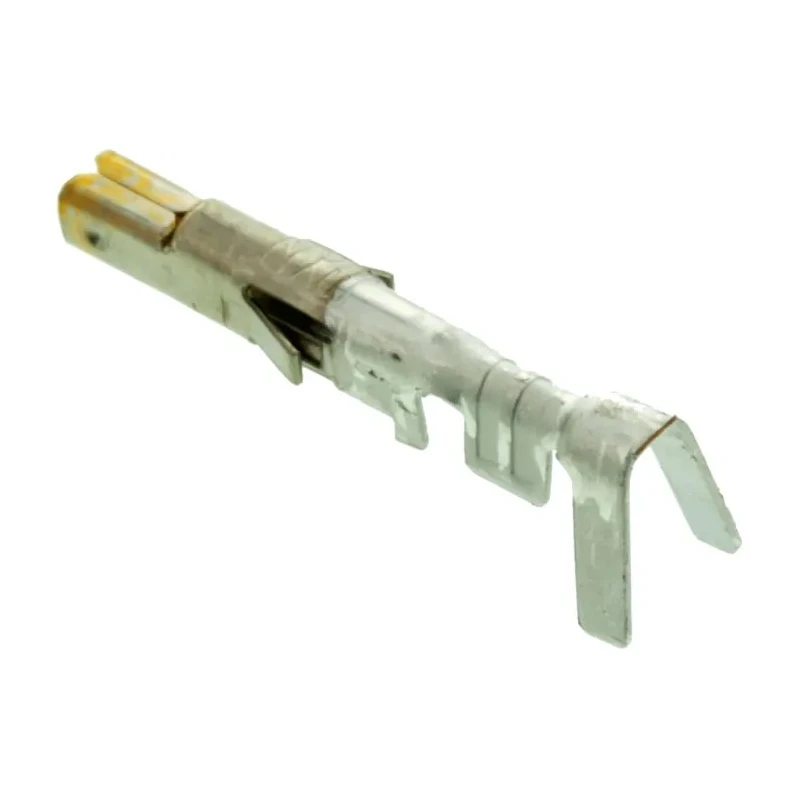

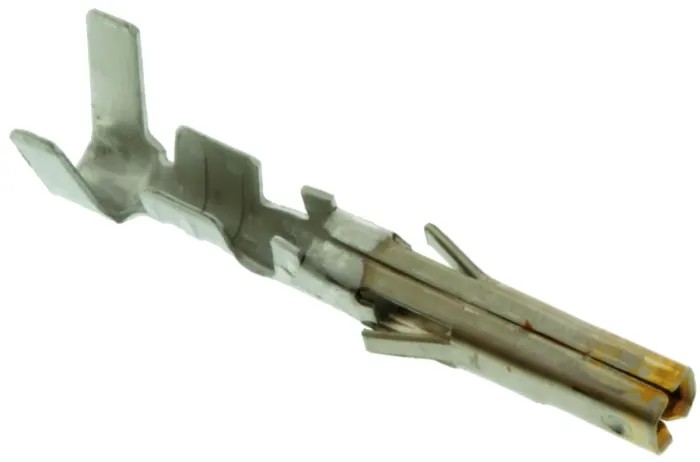

Molex 5556 Series Female Crimp Terminal, 24 AWG Min Crimp, 18 AWG Max, Gold Plated Phosphor Bronze Contact 39-00-0182
Specifications
| Country of Origin | United States |
|---|---|
| Brand | Molex |
| Current | 9A |
| Gender | Female |
| Contact Material | Phosphor Bronze |
| Series | 5556 |
| Termination Type | Crimp |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| For Use With | Mini-Fit TPA and Mini-Fit BMI Connector Housings, Mini-Fit Jr |
| Contact Plating | Gold |
| Minimum Wire Size mm² | 0.2mm² |
| Maximum Wire Size mm² | 0.8mm² |
| Minimum Wire Size AWG | 24AWG |
| Maximum Wire Size AWG | 18AWG |
| Maximum Contact Resistance | 10mΩ |
Key Features
- Constructed with gold plated phosphor bronze contact material for excellent conductivity.
- Suitable for Mini-Fit TPA, Mini-Fit BMI connector housings and Mini-Fit Jr connectors.
- Supports a current rating of 9A for reliable power transmission.
- Crimp termination type ensures secure and durable connections.
- Designed to operate in temperatures ranging from -40°C to +105°C.
- Maximum contact resistance rated at 10 milliohms for efficient performance.
- Female gender contact compatible with specific connector housings.
- Manufactured in the United States ensuring quality standards.
Product Description
The Molex 5556 Series Female Crimp Terminal, model 39-00-0182, is a high-quality electrical connector component engineered for secure and efficient wire termination. This crimp terminal supports wire sizes ranging from 24 AWG minimum to 18 AWG maximum, making it versatile for various industrial and electronic applications.
Featuring gold plated phosphor bronze contacts, it provides optimal conductivity and maintains low contact resistance under demanding conditions. The crimp termination method ensures a reliable and robust connection, essential for maintaining signal integrity and preventing wire slippage.
This female crimp terminal is designed to fit Mini-Fit TPA and Mini-Fit BMI connector housings, as well as Mini-Fit Jr connectors, facilitating easy integration within assemblies and systems requiring compact and dependable connections.
Rated for a 9A current capacity, the terminal supports moderate power applications and is suitable for use in environments with temperatures from -40°C to +105°C, demonstrating excellent thermal resilience. Its maximum contact resistance of 10 milliohms ensures minimal energy loss and heat generation during operation.
Gold plated phosphor bronze contact material offers superior electrical performance. Compatible with wire sizes between 24 AWG and 18 AWG for flexible usage. Crimp termination provides a secure mechanical and electrical connection.
Female design allows precise mating with Mini-Fit series connector housings. Operates reliably in a temperature range of -40°C to +105°C. Handles up to 9 amperes of current safely and efficiently. Manufactured in the United States adheres to stringent quality standards.
This component is ideal for electrical and electronic manufacturing, assembly lines, and repair operations requiring durable and consistent wire terminal connections. Its compatibility with popular Mini-Fit connectors makes it widely applicable in automotive, industrial equipment, HVAC systems, and consumer electronics.
Discover more products in the Crimp Contacts category at EnvMart for professional-grade electrical connection components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This crimp terminal supports a current rating of 9A, suitable for moderate power applications.
It operates reliably in temperatures ranging from -40°C to +105°C, demonstrating excellent thermal resilience.
This terminal is compatible with wire sizes ranging from 24 AWG minimum to 18 AWG maximum.
The contact is made of gold plated phosphor bronze, which provides excellent conductivity and low contact resistance.
It is designed to fit Mini-Fit TPA and Mini-Fit BMI connector housings, as well as Mini-Fit Jr connectors.
The maximum contact resistance is rated at 10 milliohms, ensuring efficient performance during operation.
It utilizes a crimp termination type, ensuring secure and durable connections for reliable performance.
This crimp terminal is manufactured in the United States, adhering to stringent quality standards.
This terminal belongs to the Molex 5556 series, which is known for its reliable electrical connections.
Specific dimensions are not provided, but it is designed for compact integration within assemblies requiring dependable connections.
It is suitable for various industrial and electronic applications, including automotive, industrial equipment, HVAC systems, and consumer electronics.
This model features a female gender contact, allowing precise mating with compatible connector housings.
