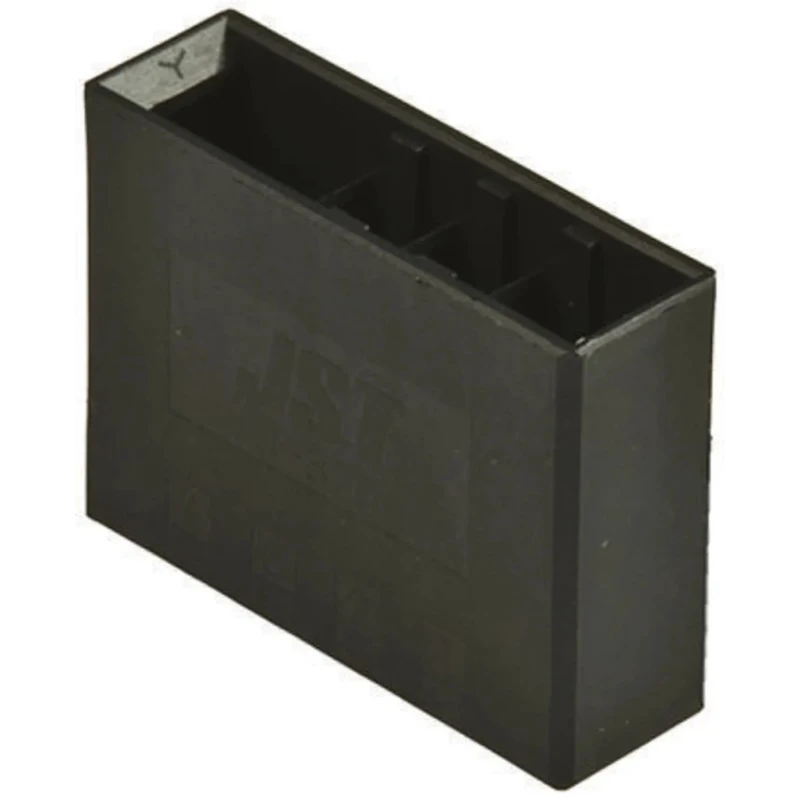

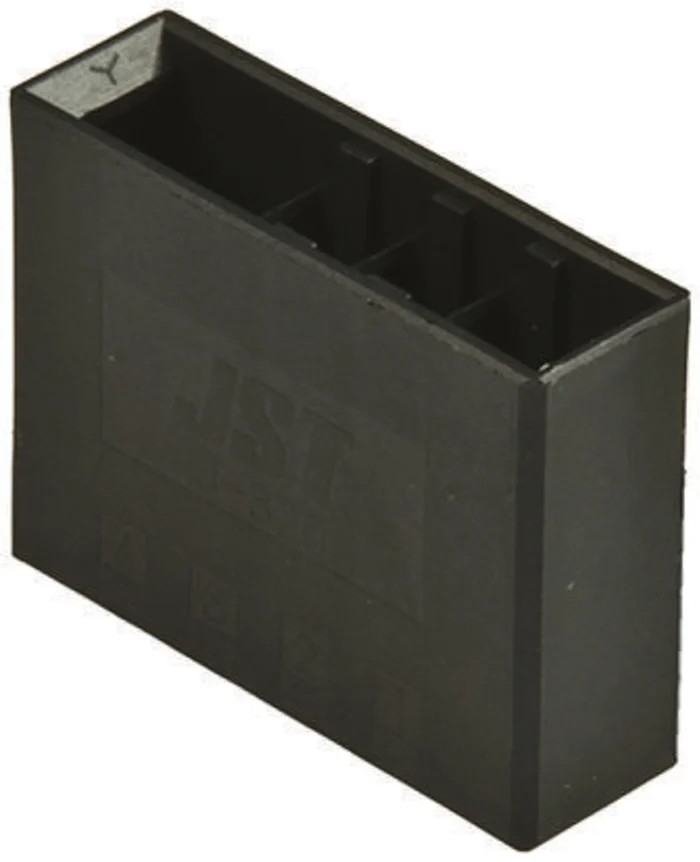

JST JFA J300 Series Straight Through Hole PCB Header, 4 Contacts, 5.08 mm Pitch, 1 Row, Shrouded B04B-F32SK-GGXR

Free Delivery in India | Lowest Global Shipping Charges

JST JFA J300 Series Straight Through Hole PCB Header, 4 Contacts, 5.08 mm Pitch, 1 Row, Shrouded B04B-F32SK-GGXR



Category PCB Header Brand JST Condition New

Specifications

Country of Origin	Japan
Voltage	600V
Brand	JST
Orientation	Straight
Current	10.5A
Model	B04B-F32SK-GGXR
Mount Type	Through Hole
Housing Material	Thermoplastic
Contact Material	Copper Alloy
Series	JFA J300
Termination Type	Solder
Maximum Operating Temperature	85°C
Minimum Operating Temperature	-25°C
Interfaces	lances
Number of Rows	1
Pitch	5.08mm
Contact Plating	Gold
Number of Contacts	4
Contact Gender	Male
Shrouded/Unshrouded	Shrouded
Connector System	Wire-to-Board

Key Features

Features 4 male contacts arranged in a single row.
Designed with a 5.08 mm pitch for reliable wire-to-board connection.
Constructed with durable thermoplastic housing and copper alloy contacts plated with gold.
Rated for 10.5 A current and operating voltage up to 600 V.
Suitable for operating temperatures from -25°C to 85°C.
Mounts through hole for secure PCB attachment.
Shrouded design provides polarization and prevents incorrect mating.
Double spring construction ensures secure locking and contact pressure adjustment.

Product Description

JST B04B-F32SK-GGXR is a high-performance PCB header from the JFA J300 Series featuring a straight through hole mount and single row configuration with 4 contacts.

Designed for wire-to-board connections, it provides a 5.08 mm pitch and shrouded housing for secure locking and correct polarization. The contacts are made from copper alloy with gold plating for excellent conductivity and corrosion resistance.

This PCB header supports a maximum current rating of 10.5 A and maximum voltage of 600 V, suitable for demanding industrial and electronic applications. It operates reliably within a temperature range of -25°C to 85°C.

The double spring construction includes a main spring and contact pressure adjustment spring, enhancing contact reliability and durability during use. Housing lances improve locking and secure assembly to PCBs.

The connector is compatible with J-FAT spring terminal connectors allowing flexible wire-to-wire or wire-to-board connections. Made in Japan, this component conforms to UL 94V-0 standards for flammability and safety. Features 4 male contacts arranged in a single row.

5.08 mm pitch with straight orientation for through-hole PCB mounting. Thermoplastic housing with gold plated copper alloy contacts. Rated 10.5 A current and 600 V voltage. Operating temperature range: -25°C to 85°C. Shrouded connector design for polarization and secure locking.

Double spring construction provides superior contact pressure and reliability. Compatible with J-FAT spring terminal connectors. Conforms to UL 94V-0 flammability standards. Manufactured in Japan to ensure quality and reliability.

These features make the JST JFA J300 Series PCB Header ideal for rigorous applications in electronics manufacturing, automation, and industrial control systems. Explore more JST connectors and PCB components in the Electronics & Electricals category on EnvMart.
