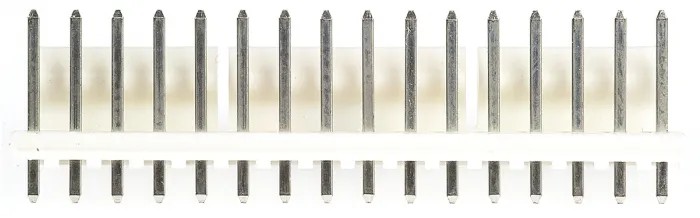

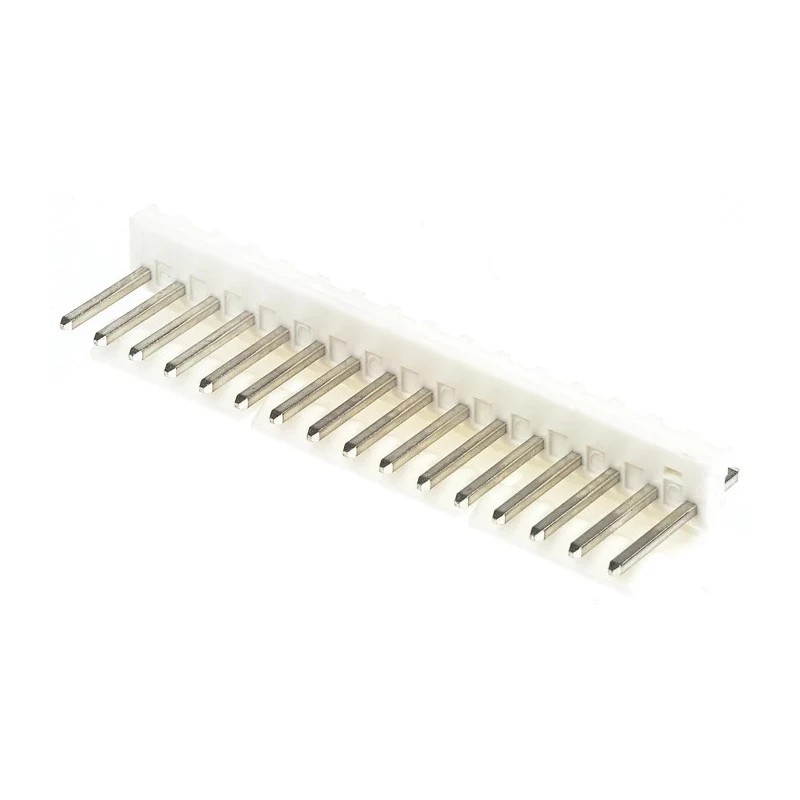

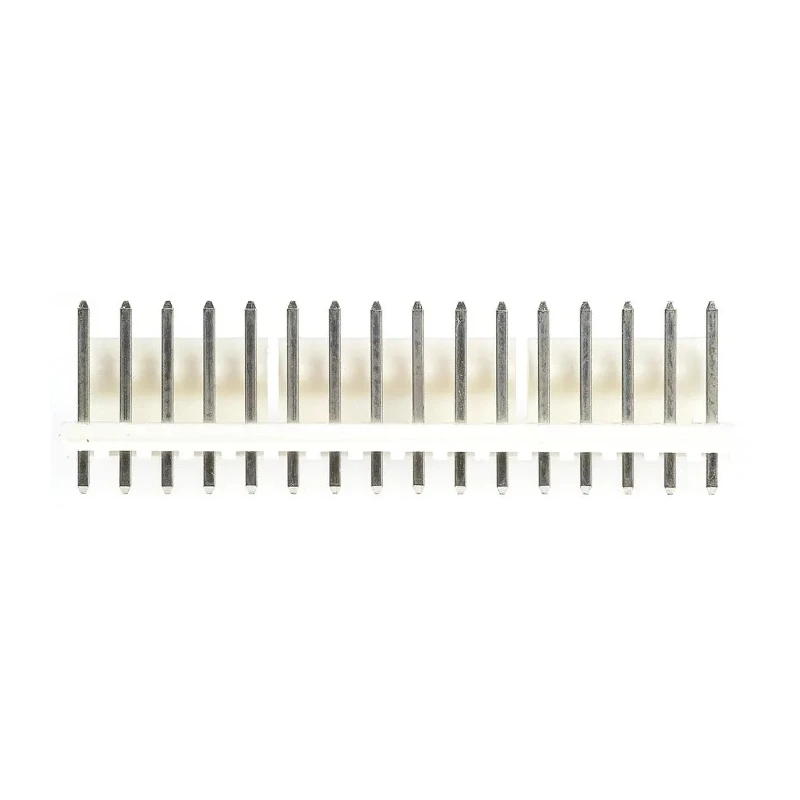

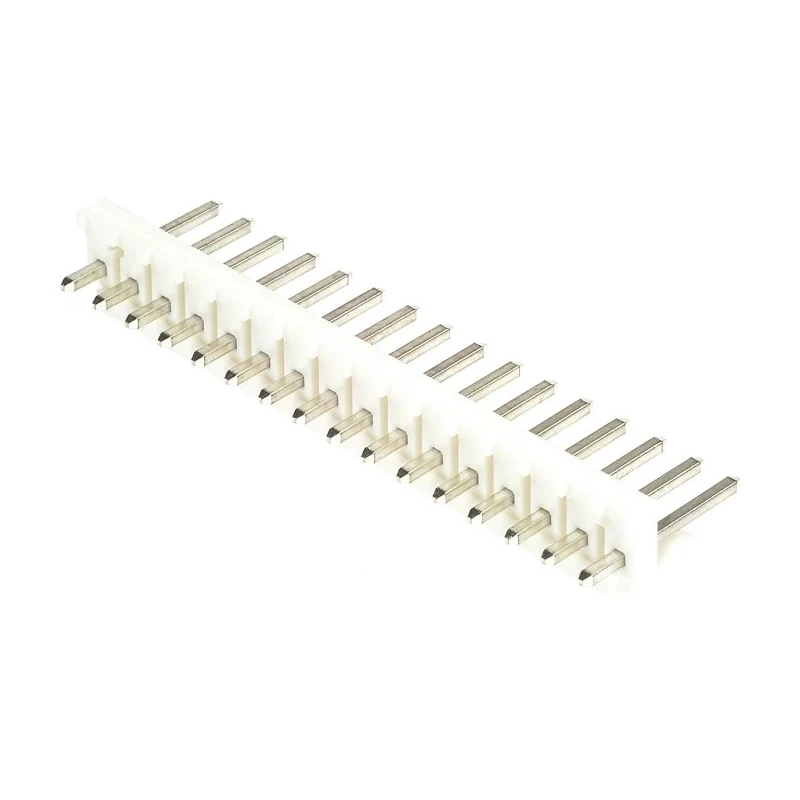

Molex KK 396 Series Straight Through Hole Pin Header 16 Contact 3.96 mm Pitch 1 Row Unshrouded 26-60-4160

Molex 26-60-4160 KK 396 Series Straight Through Hole Pin Header is a 16-contact, 3.96 mm pitch, 1-row, unshrouded male connector designed for robust wire-to-board connections.

The header features a durable polyester housing providing excellent insulation and mechanical strength. The contact pins are brass plated with tin to resist corrosion and ensure reliable electrical connection.

This connector supports up to 7A of current and can operate safely at voltages up to 250V. Its operating temperature range spans from -40°C to 80°C, making it suitable for various environmental conditions.

The straight orientation and through-hole mounting design facilitate straightforward PCB assembly and soldering processes. The termination type is solder, ensuring a secure and long-lasting connection.

It is compatible with multiple Molex housing and connector series such as the 2139, 3069, 6442, and 41695 Series, as well as PC board connectors like 2145 and 41815 Series, providing flexibility for different circuit designs and layouts.

The product does not carry specific certifications but maintains Molex's commitment to quality and performance standards.

This pin header is ideal for use in industrial electronics manufacturing, electronic device prototyping, and other commercial electronic applications where reliable wire-to-board connectivity is required.

The header features an unshrouded design enabling easy access and soldering. It is constructed with polyester housing for durability and insulating properties. The contact pins are male, made of brass material with tin plating ensuring corrosion resistance.

Rated for up to 7 ampere current and 250V voltage for reliable performance. Operates reliably within a temperature range of -40°C to 80°C. Ideal for PCB header applications requiring straight orientation and through-hole mounting.

Termination type is solder, facilitating secure connection during PCB assembly. Compatible with multiple housing and connector series such as 2139, 3069, and 6442 Series housings. This product complies with no specific standards or approvals but follows Molex quality manufacturing.

Suitable for industrial, electronic manufacturing, and prototyping uses. Explore more Molex connectors and electronic components with EnvMart for reliable and quality industrial parts.
