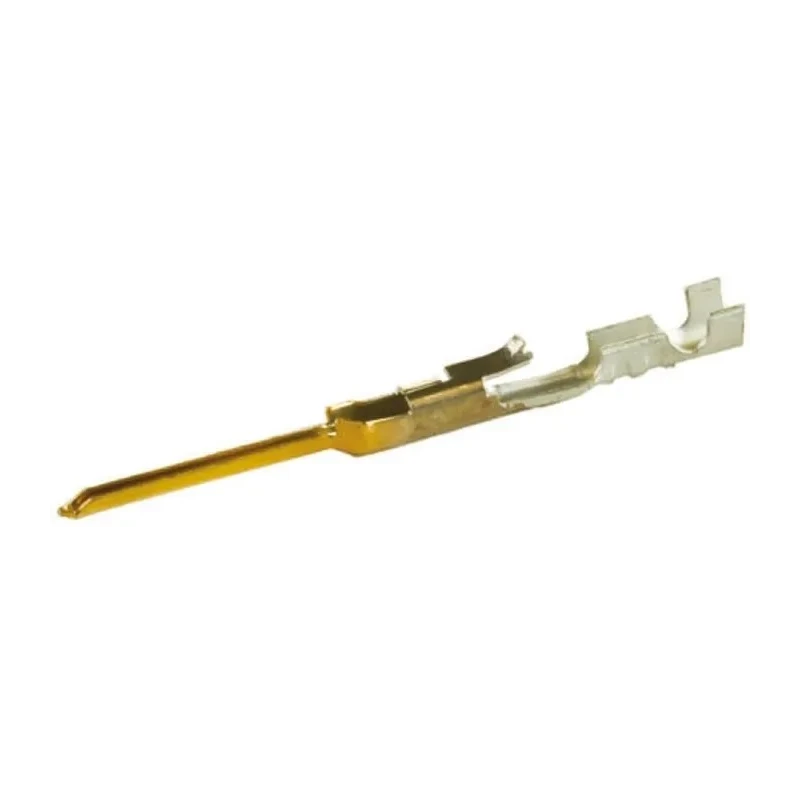

Molex Male Crimp Terminal 70021 Series 3A Current Gold Plated Phosphor Bronze Contact 24 AWG Min, 22 AWG Max 16-02-0117
Specifications
| Country of Origin | United States |
|---|---|
| Brand | Molex |
| Current | 3A |
| Gender | Male |
| Contact Material | Phosphor Bronze |
| Series | 70021 |
| Termination Type | Crimp |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| For Use With | SL Connector Housing |
| Contact Plating | Gold |
| Minimum Wire Size mm² | 0.2mm² |
| Maximum Wire Size mm² | 0.3mm² |
| Minimum Wire Size AWG | 24AWG |
| Maximum Wire Size AWG | 22AWG |
| Maximum Contact Resistance | 15mΩ |
| For Reference only | 70058 and 71851 Series also used with 70450 Series Housings |
Key Features
- Compatible with wire sizes from 24 AWG minimum to 22 AWG maximum.
- Contact material is durable phosphor bronze with gold plating for enhanced conductivity.
- Termination type is crimp for secure electrical connections.
- Operates reliably within temperature range -40°C to 105°C.
- Maximum contact resistance is 15 milliohms ensuring low electrical loss.
- Made in the United States with precise manufacturing standards.
- Suitable for automotive, communications, medical, and portable electronic applications.
- Part of the versatile 70021 series compatible with Molex SL series connectors.
Product Description
Molex 16-02-0117 Male Crimp Terminal from the 70021 Series is engineered for secure and reliable connections in electronic assemblies. It is intended for use with SL Connector Housings, supporting wire sizes from 24 AWG minimum to 22 AWG maximum and capable of carrying currents up to 3 amperes. The contact features gold plating over phosphor bronze, combining excellent conductivity with corrosion resistance.
This crimp terminal is terminated by crimping, ensuring a durable mechanical and electrical bond. It is designed to operate within a broad temperature span from -40°C to 105°C, making it suitable for a variety of industrial and commercial environments. The maximum contact resistance of 15 milliohms ensures minimal voltage drop and reliable performance.
Manufactured in the United States, this terminal conforms to high quality and consistency standards. The terminal is applicable across automotive, commercial vehicles, consumer electronics, portable devices, medical equipment, communication systems, and networking applications. It integrates seamlessly with Molex 70058 and 71851 Series as well as 70450 Series housings for diverse assembly needs.
Compatible with wire sizes from 24 AWG minimum to 22 AWG maximum. Contact is gold plated phosphor bronze for durability and conductivity. Rated current capacity of 3 amperes. Termination by crimp ensures strong mechanical and electrical connection.
Operates in temperature range from -40°C to 105°C suitable for harsh environments. Maximum contact resistance of 15 milliohms to minimize power loss. Manufactured in the United States to stringent quality standards. Widely used in automotive, medical, communication, and industrial electronics.
This Molex product enables engineers and manufacturers to assemble high-quality, robust circuits with ease and confidence. Browse our extensive range of electronics components at EnvMart for compatible connectors and accessories to complete your projects.
Explore more products in our Crimp Contacts category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This crimp terminal has a maximum current capacity of 3 amperes.
It is compatible with wire sizes from 24 AWG minimum to 22 AWG maximum.
The contact material is phosphor bronze with gold plating for enhanced conductivity and corrosion resistance.
This terminal operates reliably within a temperature range of -40°C to 105°C.
The maximum contact resistance is 15 milliohms, ensuring low electrical loss.
It is designed for use with SL Connector Housings and is also compatible with 70058, 71851, and 70450 Series housings.
The terminal is terminated by crimping, which ensures a secure mechanical and electrical connection.
This terminal is suitable for automotive, medical, communication, and portable electronic applications.
Specific dimensions and weight details are not provided in the product data.
This terminal is manufactured in the United States to stringent quality standards.
This terminal is part of the 70021 Series.
The minimum wire size for this terminal is 0.2 mm².
