Molex Male Crimp Terminal 70021 Series, 3A Current, 24 AWG Min to 22 AWG Max, Gold Plated, Phosphor Bronze 16-02-0115

Free Delivery in India | Lowest Global Shipping Charges

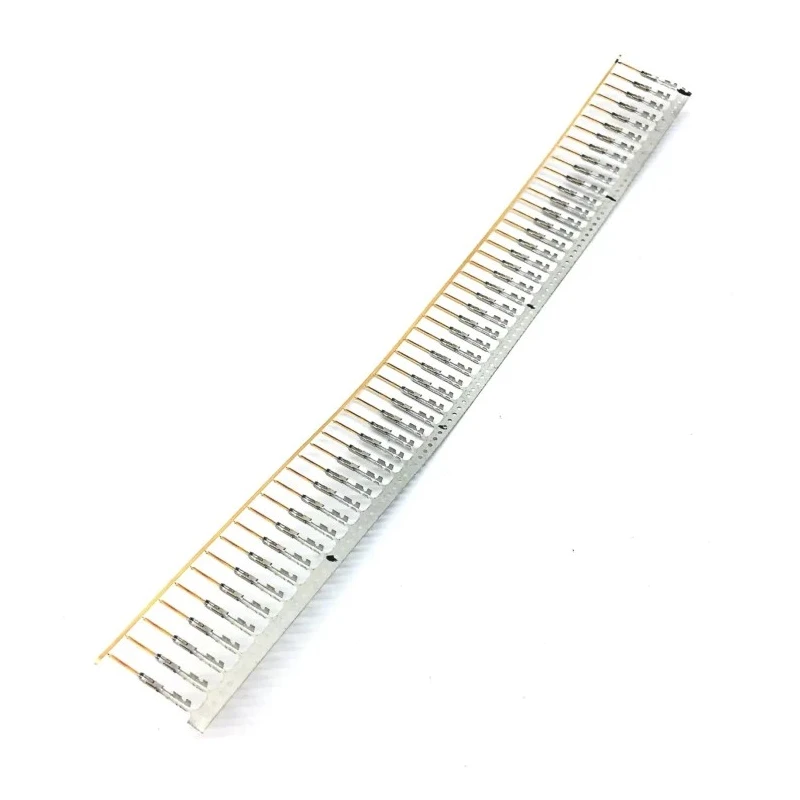

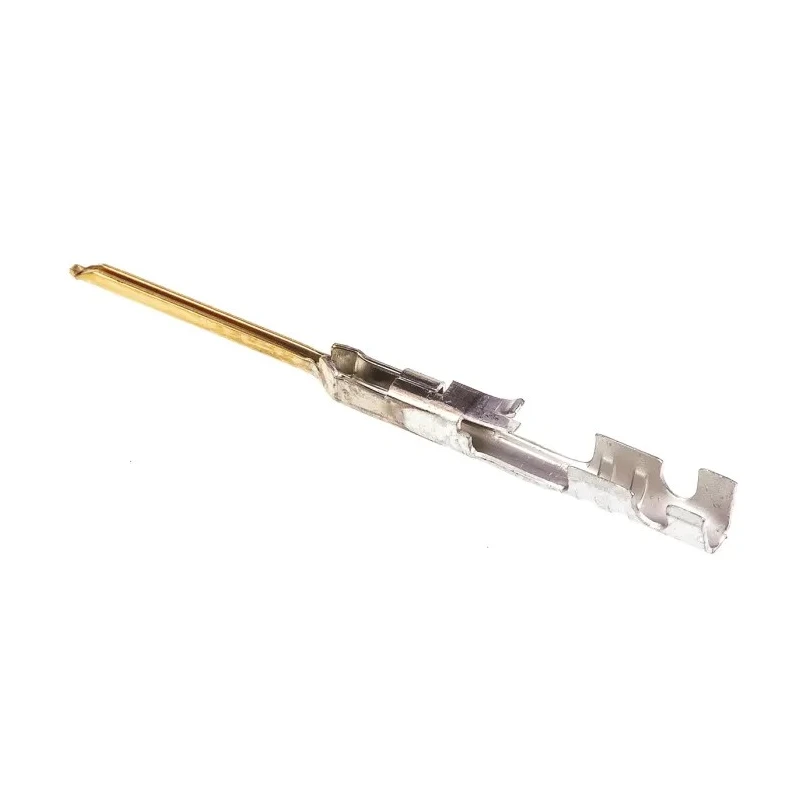

Molex Male Crimp Terminal 70021 Series, 3A Current, 24 AWG Min to 22 AWG Max, Gold Plated, Phosphor Bronze 16-02-0115

Name: Molex Male Crimp Terminal 70021 Series, 3A Current, 24 AWG Min to 22 AWG Max, Gold Plated, Phosphor Bronze 16-02-0115
Brand: Molex
SKU: 209126
Price: 0.37 USD
Availability: InStock



Category Crimp Contacts Brand Molex Condition New

Specifications

Country of Origin	United States
Brand	Molex
Current	3A
Gender	Male
Contact Material	Phosphor Bronze
Series	70021
Termination Type	Crimp
Maximum Operating Temperature	105°C
Minimum Operating Temperature	-40°C
For Use With	SL Connector Housing
Contact Plating	Gold
Minimum Wire Size mm²	0.2mm²
Maximum Wire Size mm²	0.3mm²
Minimum Wire Size AWG	24AWG
Maximum Wire Size AWG	22AWG
Maximum Contact Resistance	15mΩ
For Reference only	70058 and 71851 Series also used with 70450 Series Housings

Key Features

This terminal features gold plating for enhanced conductivity and corrosion resistance.
Constructed from durable phosphor bronze ensuring mechanical strength and electrical performance.
Suitable for crimp termination providing reliable and secure wire connections.
Operates within a temperature range of -40°C to 105°C for varied environmental applications.
Has a maximum contact resistance of 15 milliohms, ensuring low electrical losses.
Compatible with Molex SL series housings including 70058, 71851, and 70021 series.
Widely used in automotive, commercial vehicle, consumer electronics, medical, communication, and networking applications.
Manufactured in the United States to stringent quality standards.

Product Description

Molex 16-02-0115 Male Crimp Terminal from the 70021 Series is a high-quality crimp contact ideal for use with SL Connector Housings. Rated for a continuous current of 3A, it accepts wire sizes from 24 AWG (minimum) up to 22 AWG (maximum), supporting reliable electrical connections in demanding applications.

Its gold-plated contact surface provides excellent conductivity and resistance to corrosion, while the phosphor bronze contact material offers robustness and long service life. The product is designed specifically for crimp termination, ensuring consistent and secure wire attachment.

Operating in temperatures ranging from -40°C to 105°C, this terminal suits a broad spectrum of industrial, automotive, and electronics environments. It maintains a low maximum contact resistance of 15 milliohms to minimize signal loss and energy dissipation.

This series fits commonly used Molex SL series housings, including 70058, 71851, and 70021, facilitating versatile integration into various connector systems. Typical applications span automotive, medical devices, communication infrastructure, portable electronics, commercial vehicles, and networking equipment.

This terminal features gold plating for enhanced conductivity and corrosion resistance. Constructed from durable phosphor bronze ensuring mechanical strength and electrical performance. Suitable for crimp termination providing reliable and secure wire connections.

Operates within a temperature range of -40°C to 105°C for varied environmental applications. Has a maximum contact resistance of 15 milliohms, ensuring low electrical losses. Compatible with Molex SL series housings including 70058, 71851, and 70021 series.

Widely used in automotive, commercial vehicle, consumer electronics, medical, communication, and networking applications. Manufactured in the United States to stringent quality standards.

Explore more Molex branded high-performance connectors and Crimp Contacts in the Electronics & Electricals category by EnvMart to find solutions tailored to your industrial and commercial needs.
