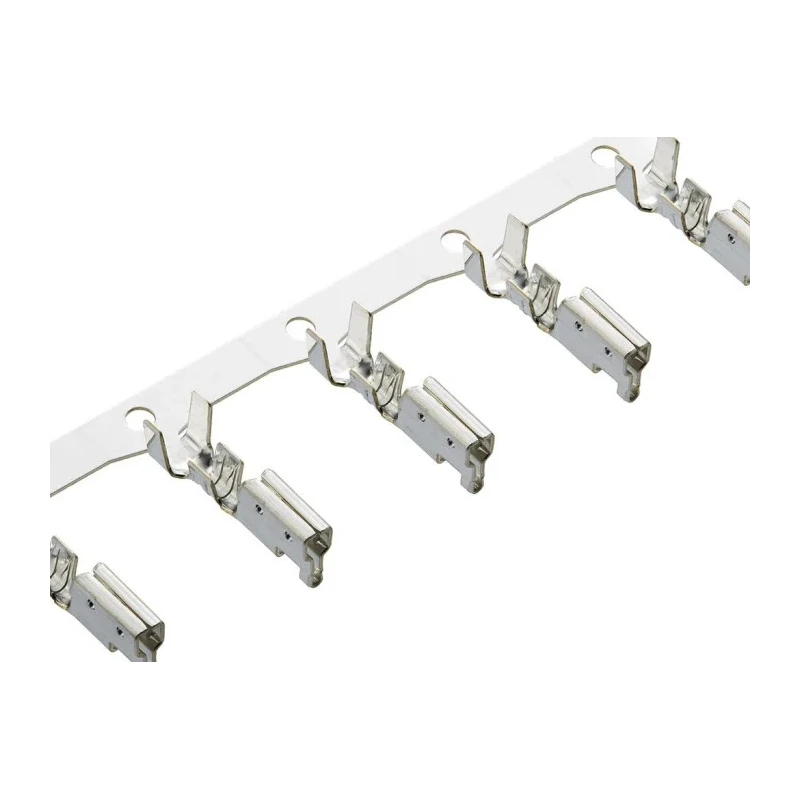

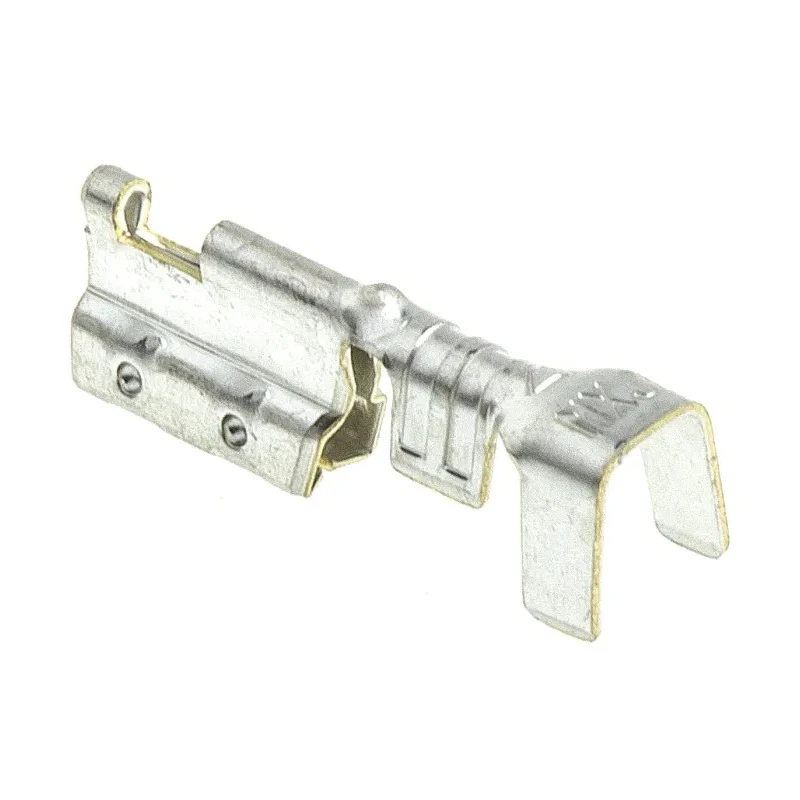

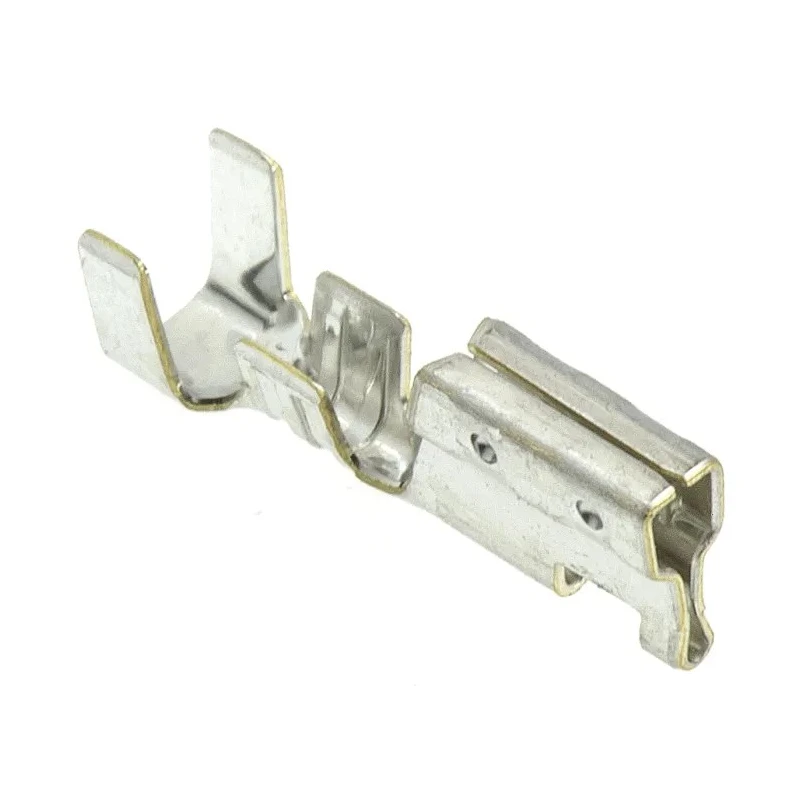

Molex 5194 Series Female Crimp Terminal, Brass Contact, Tin Plated, 24 AWG Min Crimp, 18 AWG Max Current 7A 08-70-1030

Free Delivery in India | Lowest Global Shipping Charges

Molex 5194 Series Female Crimp Terminal, Brass Contact, Tin Plated, 24 AWG Min Crimp, 18 AWG Max Current 7A 08-70-1030

Name: Molex 5194 Series Female Crimp Terminal, Brass Contact, Tin Plated, 24 AWG Min Crimp, 18 AWG Max Current 7A 08-70-1030
Brand: Molex
SKU: 209107
Price: 0.18 USD
Availability: InStock



Category Crimp Contacts Brand Molex Condition New

Specifications

Country of Origin	Japan
Brand	Molex
Current	7A
Gender	Female
Contact Material	Brass
Series	5194
Termination Type	Crimp
Maximum Operating Temperature	105°C
Minimum Operating Temperature	-40°C
For Use With	SPOX Connector Housing
Contact Plating	Tin
Minimum Wire Size mm²	0.2mm²
Maximum Wire Size mm²	0.8mm²
Minimum Wire Size AWG	24AWG
Maximum Wire Size AWG	18AWG
Maximum Contact Resistance	10mΩ

Key Features

Constructed with brass contact material for high conductivity.
Tin plating provides resistance against corrosion and oxidation.
Designed for crimp termination to create a reliable, tight seal.
Rated for a maximum current of 7A suitable for various electronic applications.
Operates effectively in temperatures ranging from -40°C to 105°C.
Spring box style design enables multiple points of contact for signal integrity.
Compatible with SPOX connector housings for versatile use.
Low-halogen design minimizes harmful fumes during heating.

Product Description

The Molex 08-70-1030 5194 Series female crimp terminal is engineered for reliable electrical connections in industrial and electronic applications. Featuring brass as the core contact material with a tin plating finish, the terminal ensures excellent conductivity and corrosion resistance. Its crimp termination type provides a strong, moisture and air-tight seal, making it a dependable choice for sensitive electronic circuits.

This crimp terminal accepts wire sizes from a minimum of 24 AWG (0.2 mm²) to a maximum of 18 AWG (0.8 mm²), supporting varied wiring requirements. Operating within a temperature range of -40°C to 105°C, it is suitable for installations exposed to diverse environmental conditions.

Designed with a spring box style, the terminal provides multiple points of contact, increasing electrical reliability and ensuring signal integrity. It is compatible with SPOX connector housings, enabling easy integration into existing systems commonly found in communication, networking, factory automation, and robotics systems.

The terminal features a maximum current rating of 7 amperes and a maximum contact resistance of 10 milliohms, ensuring stable and efficient current flow. The low-halogen composition reduces the emission of harmful fumes during soldering or heat exposure, enhancing safety.

Brass contact material with tin plating for corrosion resistance. Crimp termination design for secure electrical connections. Compatible with SPOX connector housings. Accepts wire sizes from 24 AWG to 18 AWG. Maximum current rating of 7A.

Operates between -40°C and 105°C. Spring box style for multiple contact points. Low-halogen design for reduced harmful fumes. Maximum contact resistance of 10 mΩ.

This Molex female crimp terminal is ideal for industrial, laboratory, electronic manufacturing, networking, and automation applications where durability and reliable electrical performance are critical. Explore more connectors and crimp contact solutions in the Electronics & Electrical category on EnvMart.
