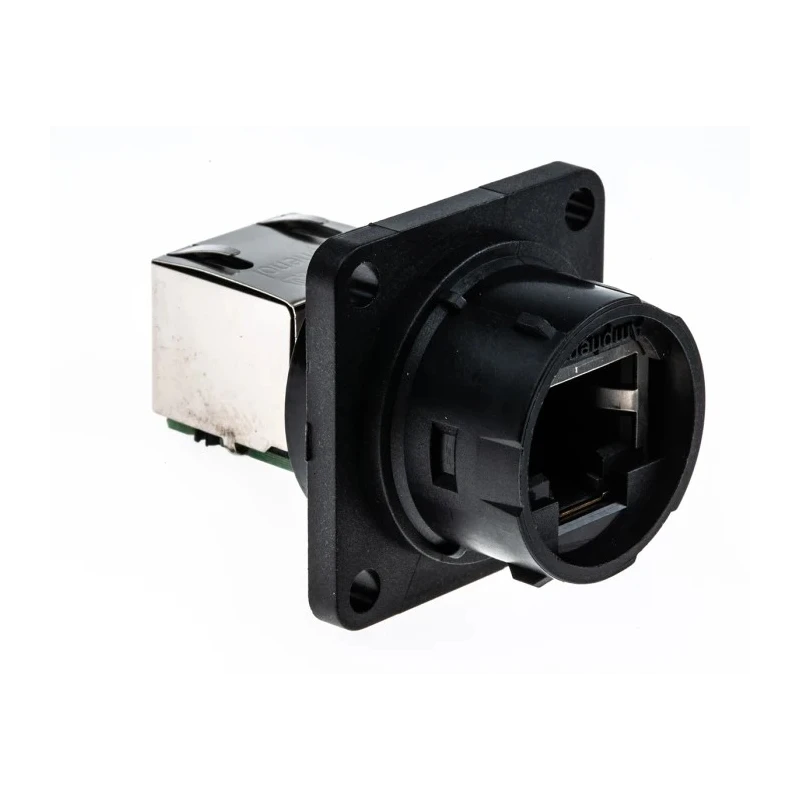

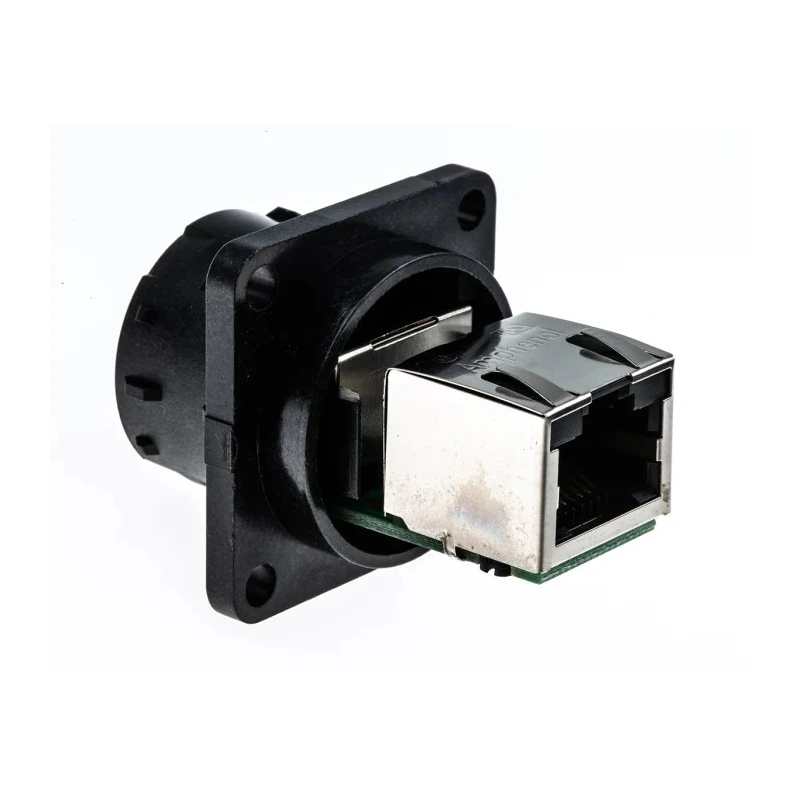

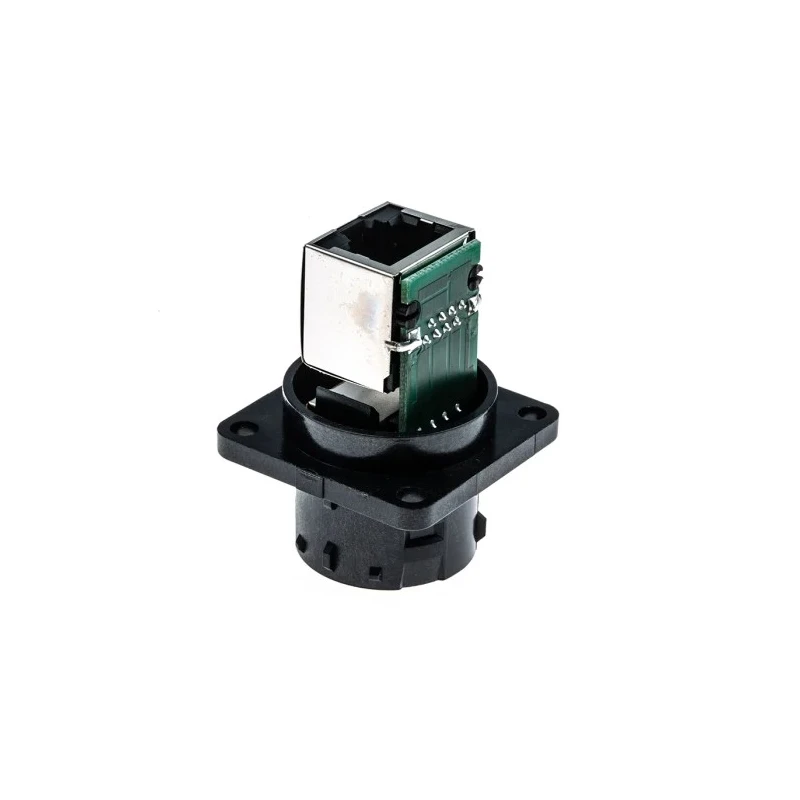

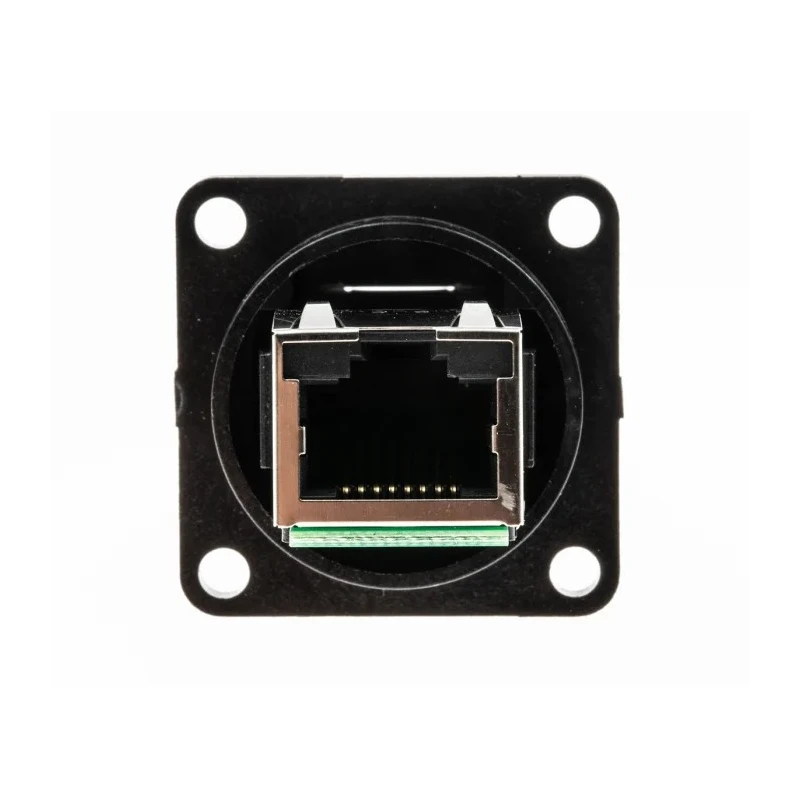

Amphenol Socapex RJF544 Series RJ45 Connector Female, Panel Mount, Cat5e Unshielded Straight 1 Port 8 Way RJ45

Amphenol Socapex RJF544 Series RJ45 Connector Female, Model RJ45, is a panel mount Ethernet connector supporting Cat5e LAN category. This unshielded, straight socket connector features a single port with 8 ways designed for network applications operating up to 85°C and as low as -40°C. It offers IP68 rating ensuring resistance against fluid and dust ingress, making it suitable for demanding industrial and commercial environments.

The connector uses copper alloy contacts plated with gold to ensure superior conductivity and corrosion resistance. Its square flange design integrates a quick push-pull coupling mechanism that permits tool-free installation and removal. The RJF544 series RJ45 connector accommodates Ethernet Class D/Cat.5e connections, compatible with 10 BaseT, 100 BaseTX, and 1000 BaseT networks, optimized for use in sensitive or harsh industrial settings.

Typical applications include CNC machinery, robotics, industrial process control, video surveillance (CCTV), wireless access points, and special machinery where reliable Ethernet connections are critical. The robust construction also provides shock, vibration, and traction resistance, further enhancing its industrial suitability.

The connector is designed with solder termination for secure wiring and measures 42mm in length, 31mm in width, and 31mm in depth. It is not certified for hazardous areas but complies with common industrial standards. This product ensures dependable connectivity and durability in demanding electronic and telecom systems.

Supports Cat5e LAN category for reliable network performance. Features a straight orientation and unshielded design. Panel mount with a single port and 8 ways for secure connections. Constructed with copper alloy contacts plated with gold for enhanced conductivity.

Operates within temperatures ranging from -40°C to 85°C for versatile environments. IP68 rated for protection against dust and fluids, suitable for harsh conditions. Utilizes a push-pull coupling mechanism for easy installation without tools.

Termination type is solder, ensuring strong and stable connections. Dimensions measure 42mm length, 31mm width, and 31mm depth for compact fit. Certified for use in industrial, robotics, CNC machines, and telecom applications.

This Amphenol Socapex RJF544 Series RJ45 Connector is ideal for integrating into industrial Ethernet systems to deliver reliable, high-performance data transfer. Explore other ethernet Connectors and network connectivity solutions on EnvMart for your electronics and electrical needs.
