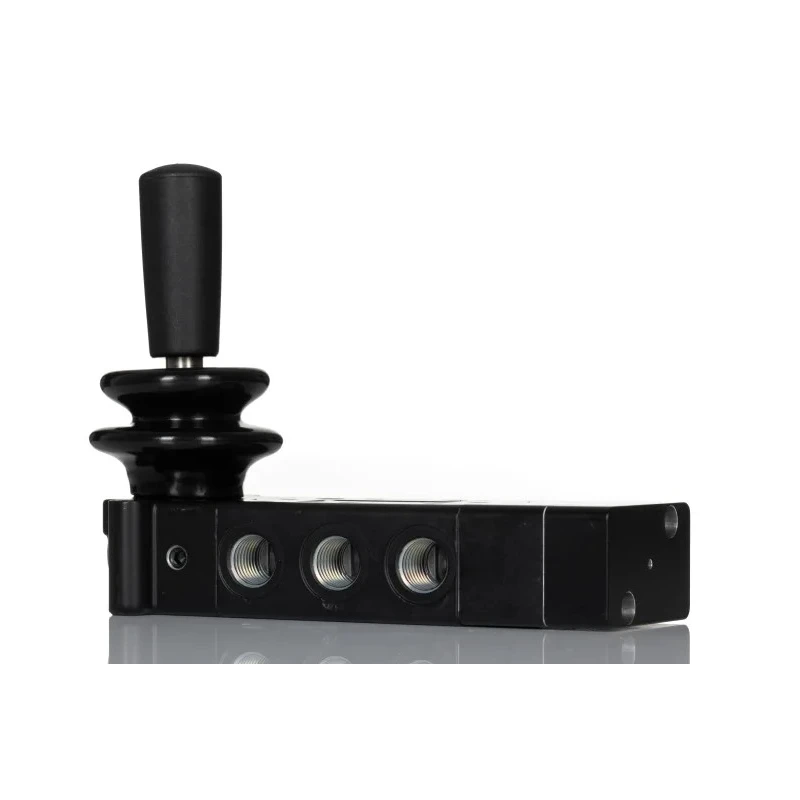

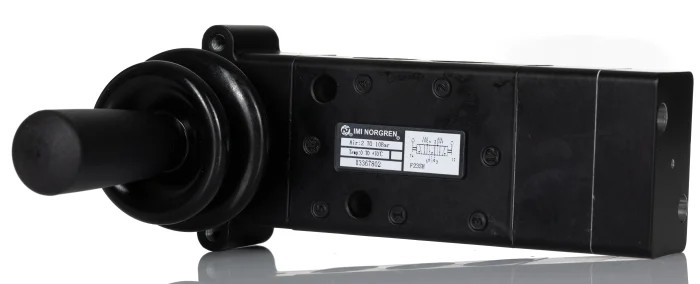

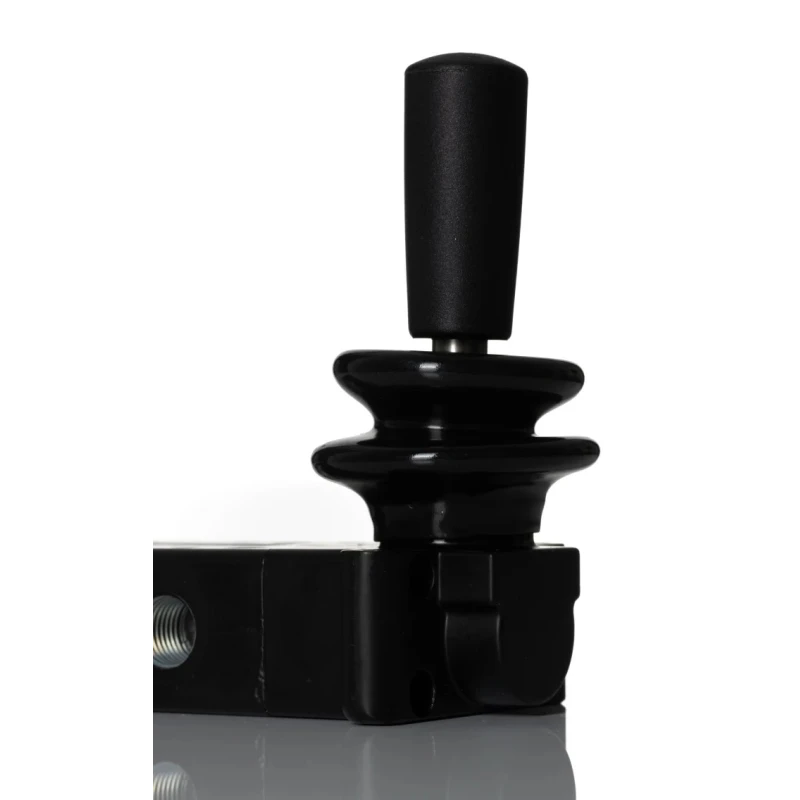

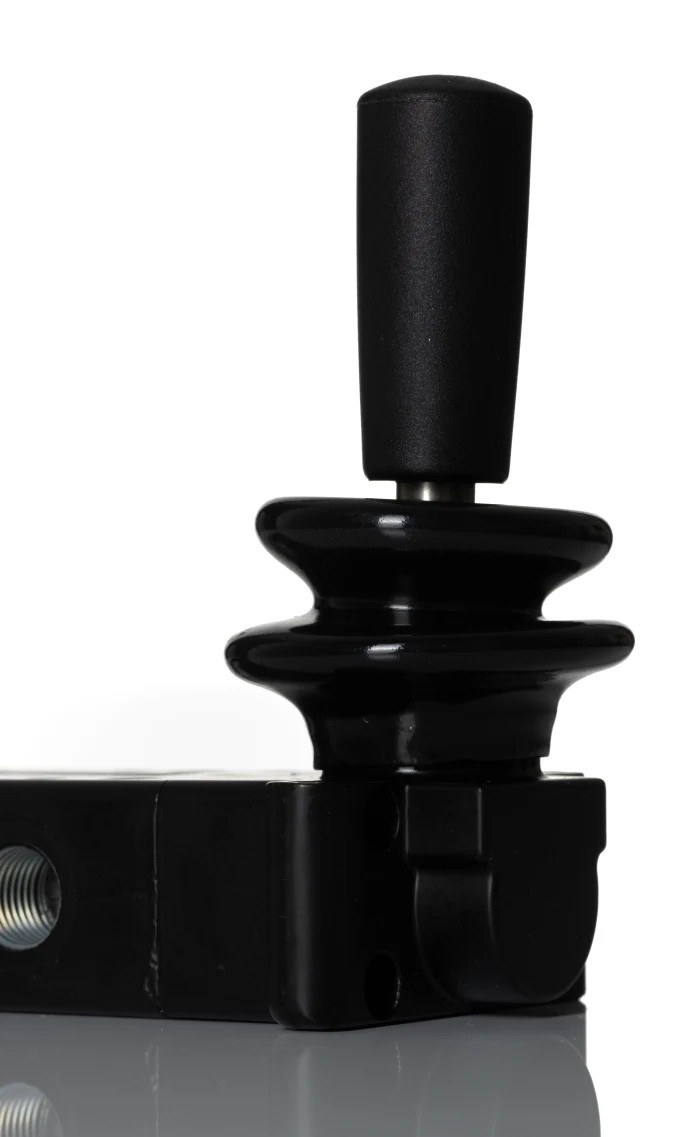

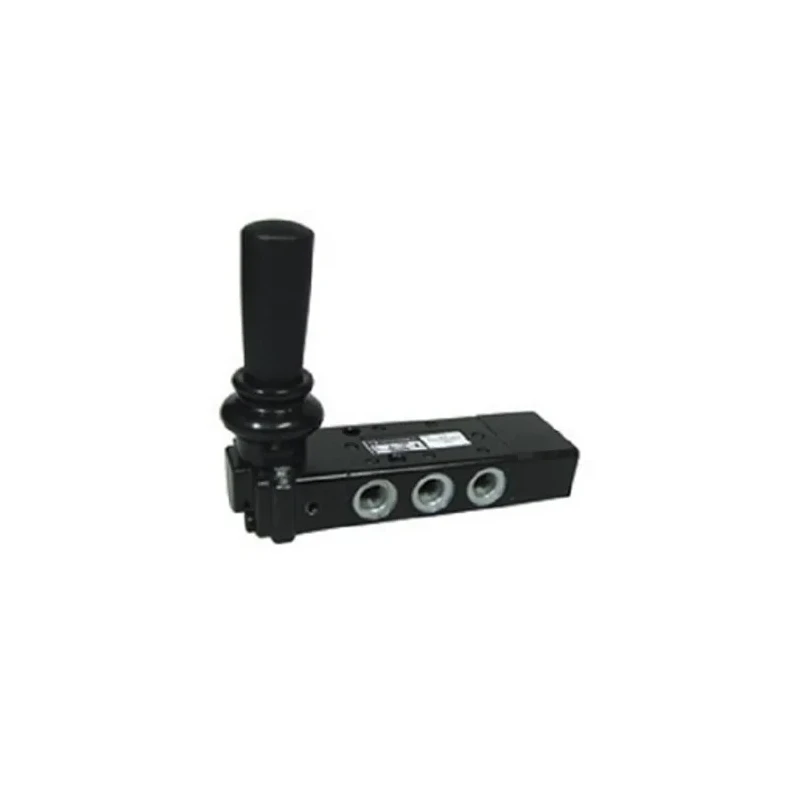

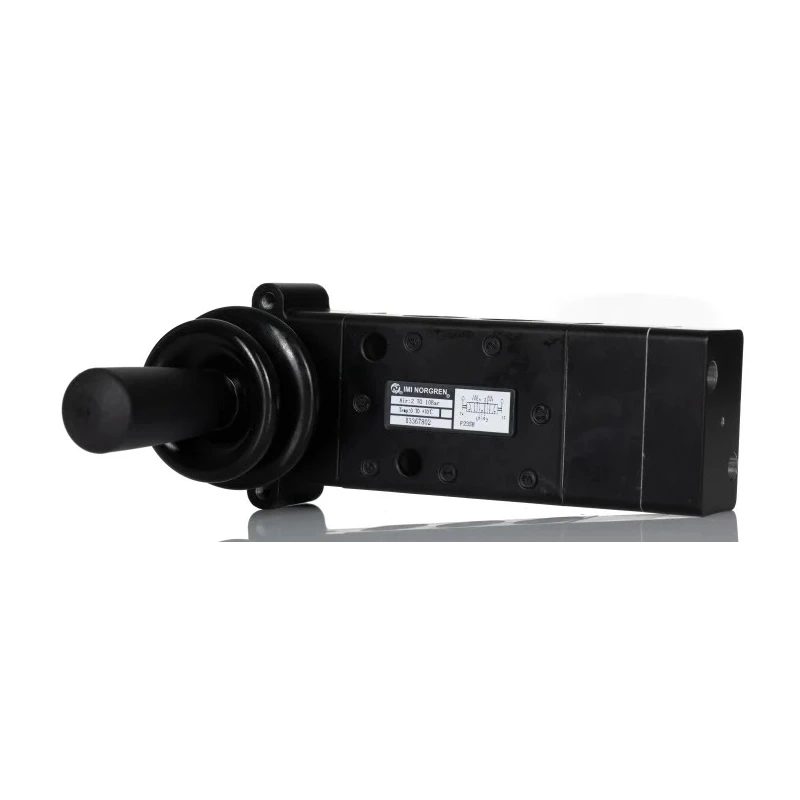

Norgren Lever Mechanical Valve, X336 Series, 5/3 Valve Function, G 1/4 Port Size, Zinc Body, Operating Pressure 10 X3367802

Norgren X3367802 lever mechanical valve from the X336 Series is a precision pneumatic manual control valve designed for industrial fluid power applications. Featuring a lever control mechanism with a 5/3 valve function, this valve provides reliable operation of forward and backward movements in double-acting cylinders. It utilizes standard G 1/4 ports for easy connection to pneumatic systems.

The valve body is made from die-cast zinc, offering excellent resistance against corrosion and mechanical impacts to ensure durability and long service life in demanding environments. It operates efficiently within a temperature range from 0°C up to +70°C and withstands maximum operating pressures up to 10 bar.

With a maximum flow rate of 965 L/min and a control button color in black, the valve accommodates light-duty applications requiring smooth and responsive manual control with an operating force of 15N. Compact dimensions of 134mm height, 47mm length, and 26mm width make it suitable for installations where space is a consideration.

The valve’s NBR seals provide airtight performance to prevent leakages and contamination, contributing to system reliability. Weighing only 1.06 kg, it enables straightforward installation and minimal strain on the setup.

Applications include automotive engineering, machine tooling, and marine industry pneumatic control systems where precise manual actuation is vital. Installation is streamlined via standard G1/4 ports compatible with common wrenches and fittings, simplifying maintenance and system integration.

Operates reliably at maximum pressure up to 10 bar. Equipped with G 1/4 port size for standard pneumatic connections. Durable zinc body construction to resist corrosion and impact. Operates within temperature range of 0°C to +70°C.

Compact dimensions with 134mm height, 47mm length, and 26mm width. Provides smooth lever control mechanism with 15N operating force. Maximum flow rate of 965 L/min, suitable for pneumatic systems. Lightweight design at 1.06 kg to facilitate easy mounting and handling.

Ideal for automotive engineering, machine tools, and marine industry pneumatic control. Standard G thread for simple installation with common pneumatic fittings.
