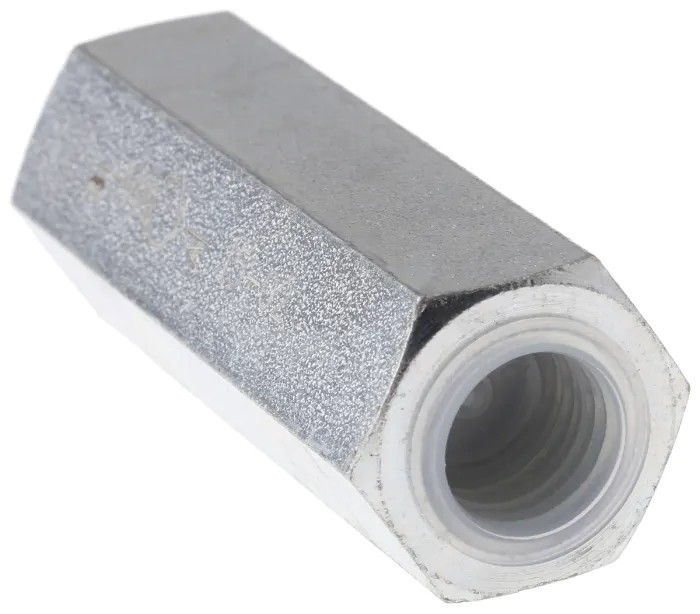

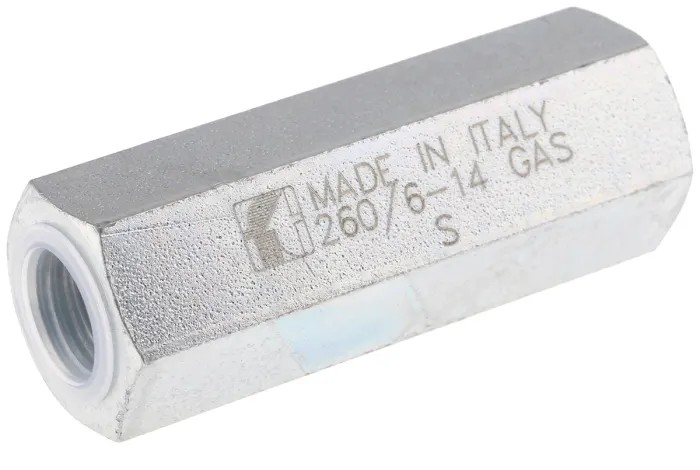

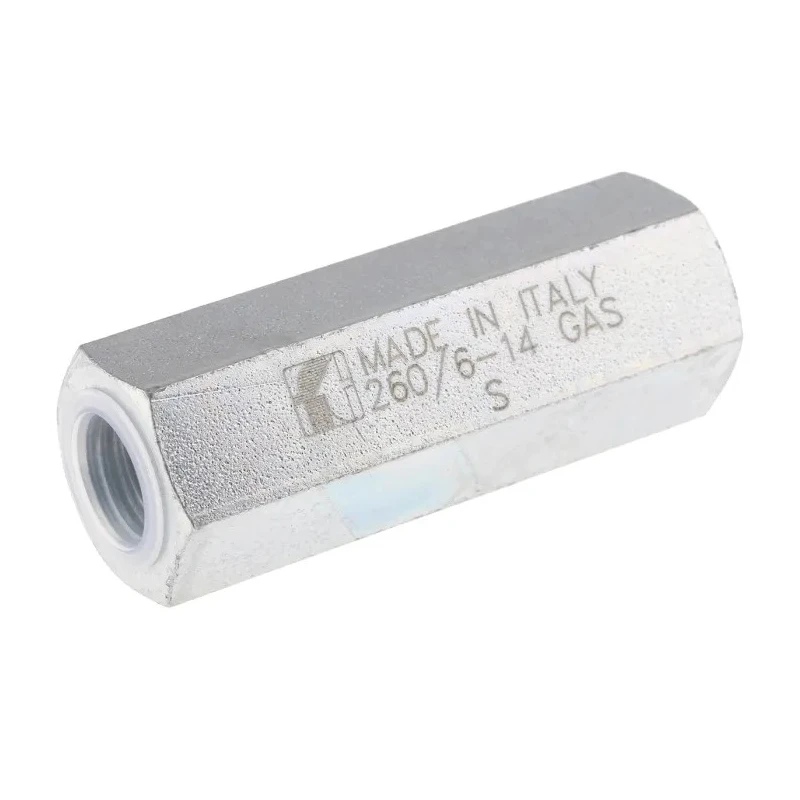

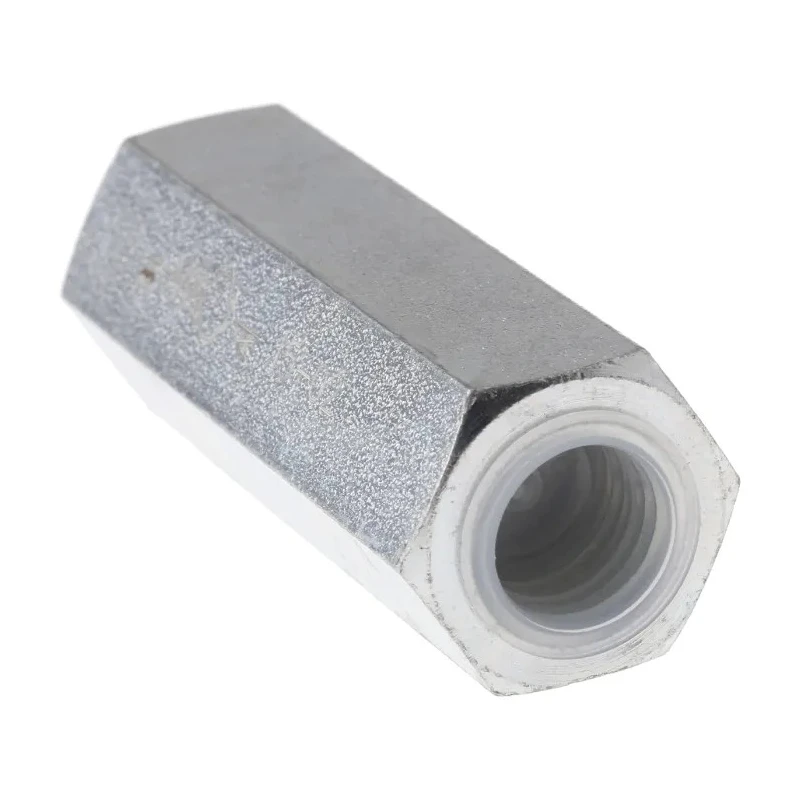

RS PRO Steel Single In Line Mount Mounting Hydraulic Check Valve BSP 15 L/min 0.35 bar Cracking Pressure 283-8295

RS PRO 283-8295 is a hydraulic check valve with a single inline mount design, constructed from high-grade steel body for strength and corrosion resistance. Featuring a BSP G 1/4 threaded port and a maximum flow rate of 15 liters per minute, this valve ensures reliable one-way flow control in hydraulic systems.

The valve's ball seating utilizes a spring-loaded mechanism with thermoplastic seals to provide a tight, leak-proof closure at a low cracking pressure of 0.35 bar. It operates effectively within a wide temperature range from -20°C to 100°C and withstands maximum internal pressures up to 350 bar.

Its compact dimensions (74mm height, 74mm length, 9.5mm width) make it easy to install inline in various industrial fluid power applications. The CETOP mounting pattern supports versatile mounting orientations both vertically and horizontally, enhancing installation flexibility.

This valve is suited for industrial, hydraulic, pneumatic, manufacturing, and mechanical applications where precise flow control and durability under high pressure are needed. The thermoplastic seal material also enables usage with gases, while alternative materials may be better for water-based systems.

Manufactured in Italy under stringent quality controls, this RS PRO valve combines robustness with high operational performance for demanding environments. It is an essential component for ensuring system safety and operational efficiency in fluid power circuits.

The valve features a robust steel body material for durability. It has a BSP G 1/4 connection thread standard for pipeline compatibility. The maximum operating pressure rating is 350 bar. Operates over a temperature range from -20°C to 100°C.

Seals are made of thermoplastic for a reliable tight closure. The valve incorporates a spring-loaded ball mechanism ensuring positive action. Suitable for vertical or horizontal mounting with CETOP single inline mount pattern.

Dimensions measure 74mm height, 74mm length, and 9.5mm width. Designed for hydraulic, pneumatic, and mechanical fluid power systems. Manufactured in Italy ensuring high-quality standards. Explore more hydraulic valves and components in the Industrial Valves & Valve Fittings category at EnvMart for comprehensive fluid power solutions.
