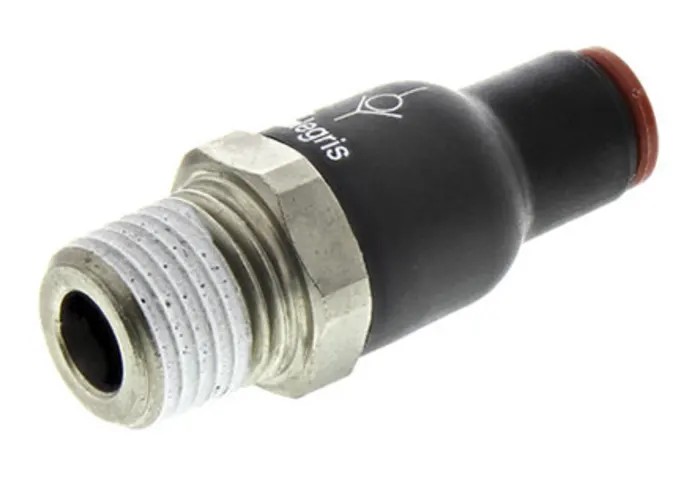

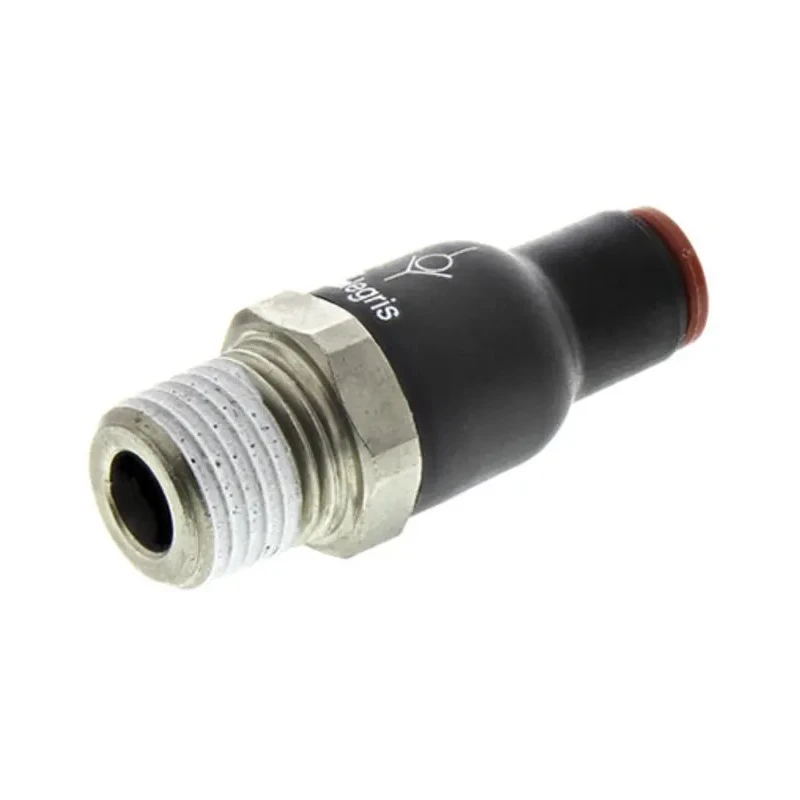

Legris Non Return Valve 10 bar BSP Tube Connection Nickel Plated Brass 7995 08 13

Legris 7995 08 13 Non Return Valve is a precision pneumatic valve designed to regulate airflow direction in pneumatic systems, preventing backflow and ensuring system integrity.

This valve features a BSP inlet connection and a tube outlet connection, with a robust construction comprising nickel plated brass, nitrile seals, stainless steel components, and engineering grade polymer, offering high durability and corrosion resistance.

It is rated to handle a maximum operating pressure of 10 bar and functions reliably within an operating temperature range of 0°C to 70°C, making it suitable for various industrial and manufacturing pneumatic applications.

The valve is available in two distinct flow types: the exhaust flow type, which allows air flow from the threaded inlet to the tube outlet only, and the supply flow type, permitting flow from the tube end back to the threaded end. These variations are color coded for ease of identification during installation.

The plastic valve body features a sealant coated thread facilitating quick installation while maintaining a secure connection in fluid power systems. This product supports pneumatic automation, fluid control, and compressed air systems in industrial environments.

Constructed from nickel plated brass, nitrile, stainless steel, and engineering grade polymer for durability. Features BSP inlet and tube outlet connection types suitable for pneumatic systems. Supports an operating pressure range from 0 bar up to 10 bar.

Capable of operating within a temperature range of 0°C to 70°C. Plastic body with sealant coated thread facilitates fast and reliable installation. Available in two flow types for controlled directional airflow. Color coded exhaust and supply flow types aid in identification and application.

Designed primarily for pneumatic industrial applications.

This Legris non return valve model 7995 08 13 is an ideal component for pneumatic valve systems, fluid power tools, automation equipment, and other industrial pneumatic use cases. Compatible with BSP thread standards, this valve ensures reliable non-return functionality in a compact form factor.
