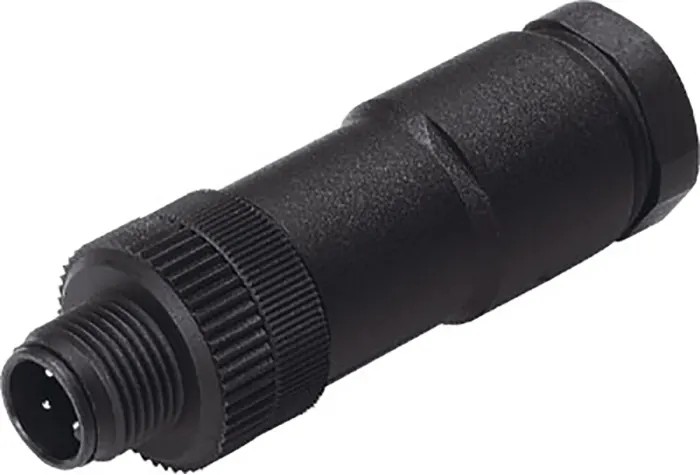

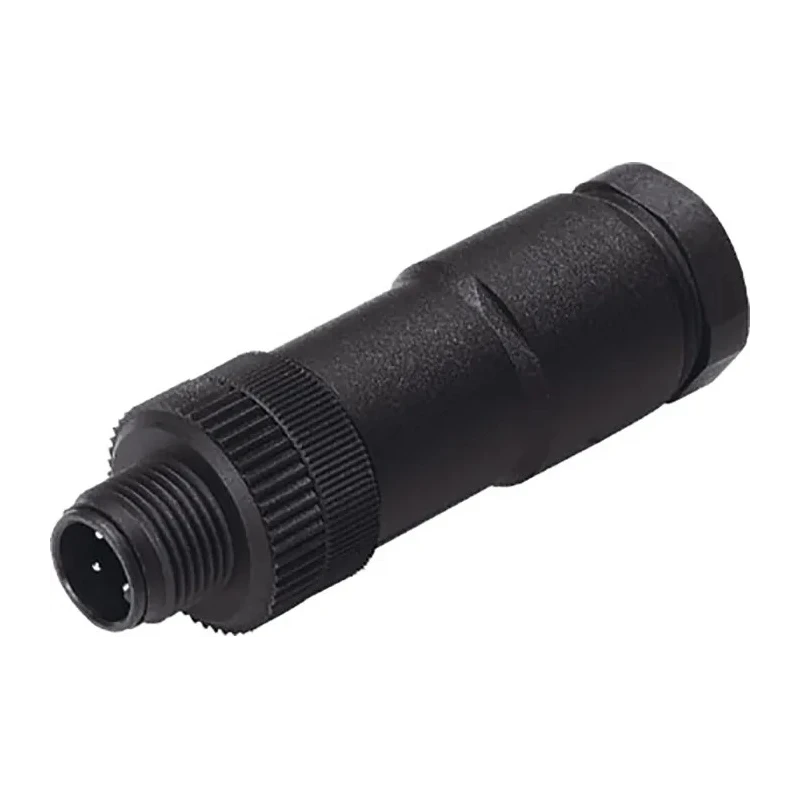

Festo Plug Connector for Valve Terminal SEA-5GS-11-DUO

Festo SEA-5GS-11-DUO plug connector is engineered specifically for use with valve terminals in pneumatic cylinder and actuator applications. It offers a robust and reliable connection solution within industrial automation and fluid power systems.

The plug is compatible with cable diameters of 2x2.5mm to 2x2.9mm, with terminal cross-sectional areas from 0.14mm² to 0.5mm², accommodating standard electrical conductors. It supports operating voltages up to 60 volts for both AC and DC applications and can safely carry a current load of 4 amperes at 40 degrees Celsius.

Manufactured with a polyamide (PA) housing, the connector delivers excellent durability and resistance to environmental factors. The mounting mechanism utilizes a threaded sleeve, allowing for secure installation and quick assembly. The clamping connection technology ensures a simple yet reliable electrical interface.

This connector is rated IP67, providing full protection against dust ingress and temporary water immersion, suitable for demanding industrial environments. It meets corrosion resistance class 2 standards, making it suitable for moderately corrosive atmospheres.

The operating ambient temperature range from -40°C to +85°C allows this valve terminal plug to perform consistently across harsh temperature conditions common in manufacturing, industrial automation, HVAC, and pneumatic system applications.

Applications include integration in valve terminals within pneumatic actuators, cylinders, and industrial control setups, enhancing signal and power reliability. Compatible with valve terminals ensuring secure connectivity.

Designed for cable diameters of 2x2.5mm to 2x2.9mm. Supports terminal cross-sectional areas ranging from 0.14mm² to 0.5mm². Operates over voltage range 0-60V AC/DC with current load of 4A at 40°C. Constructed with durable PA material housing for long service life.

Features threaded sleeve mounting for simple and firm attachment. Clamping technology enables easy and secure connection. Operates reliably within ambient temperatures from -40°C to 85°C. Corrosion resistance class 2 suitable for moderate corrosion stress environments.

CE certified and rated IP67 for protection against dust and water ingress. Explore the full range of pneumatic cylinder and actuator accessories at EnvMart for dependable industrial components.
