Tank buddy Valve TB25
Specifications
| Size | 1 |
|---|---|
| Usage | Industrial / Home |
| Working Pressure | 1–10 MPa / 1–10 Bar / 15–150 PSI |
| Flow Rate | 200 L/min |
| Model | TB25 |
| Adjustable Water Level | 50 mm up to 2.5 m customized |
Key Features
- High flow. Ideal for all makes and models of tanks.
- Available inlet sizes.Keeps pump operation to a minimum.
- Start and stop levels can be easily adjusted to give water level differentials from 50mm to 2.5m.
Product Description

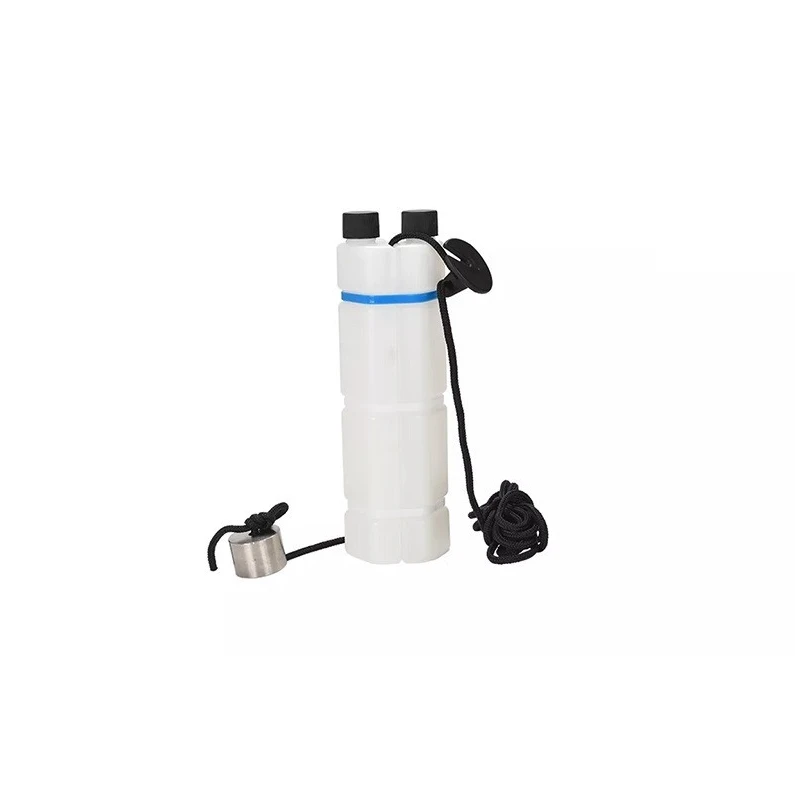

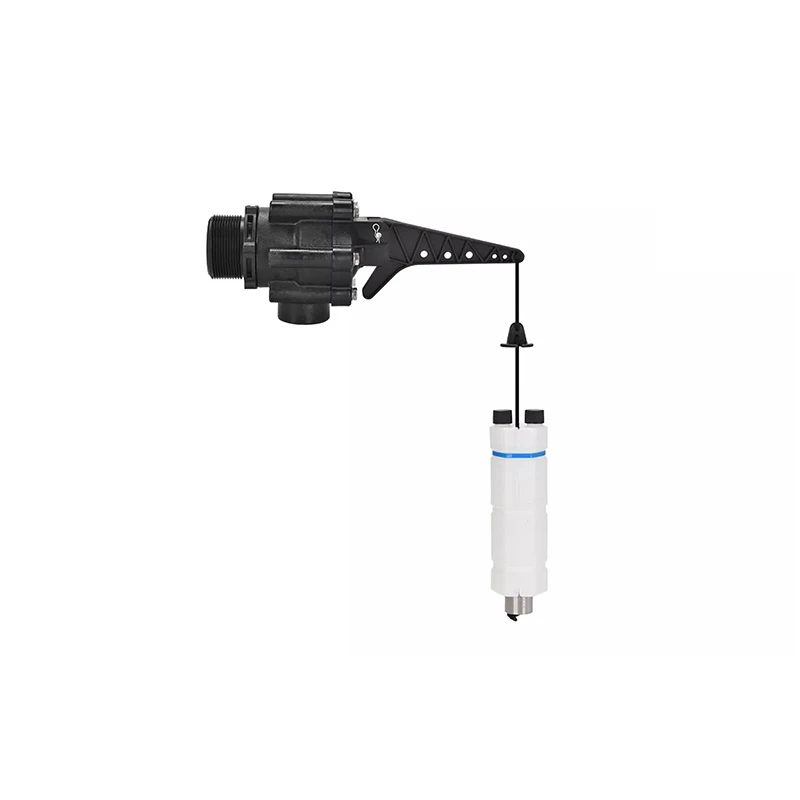

The Tank buddy Valve TB25 is a patented product, It is ideal for water tanks that are filled by running water or a pressure system controlled by the water pump.The valve gives a level difference that is adjustable from 50mm up to 2.5m to minimize starting and stopping of running water or the pump system(Level difference accept Customization).WORK PRINCIPLE The valve mounts at the top side of the tank. It fits easily through a thin-walled tank or screws into a threaded tank inlet. As the tank empties, the float travels down the cord until it hits the level stopper. The valve then opens immediately to give a full flow. As we discharge the water, the valve now runs constantly and the float rises until it hits the level adjuster. This lifts the arm and the valve shuts down. Observe the pressure that your pump runs at while the tank is filling. Set the pressure switch to turn the pump off at a pressure at least one bar above the running pressure.
- Valve Seal Access System for quick access to valve seal.
- Easy installation
- High Durability
- Precise design
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum flow rate of this model is 200 liters per minute.
The adjustable water level can be customized from 50 mm up to 2.5 meters.
The working pressure for this valve ranges from 1 to 10 MPa, which is equivalent to 1 to 10 Bar or 15 to 150 PSI.
This valve is suitable for both industrial and home applications.
The valve operates by mounting at the top side of the tank, where it opens to allow full flow as the float drops and closes when the float rises to the level adjuster.
It fits easily through a thin-walled tank or screws into a threaded tank inlet, making installation straightforward.
The valve is available in various inlet sizes, but specific sizes should be confirmed through an enquiry.
The valve seal access system allows for quick access to the valve seal for maintenance purposes.
Yes, the level difference can be customized according to specific requirements.
The specific construction material is not mentioned; please refer to the product details for further information.
The model number of this valve is TB25.
Yes, it is ideal for water tanks that are filled by running water or a pressure system controlled by a water pump.
