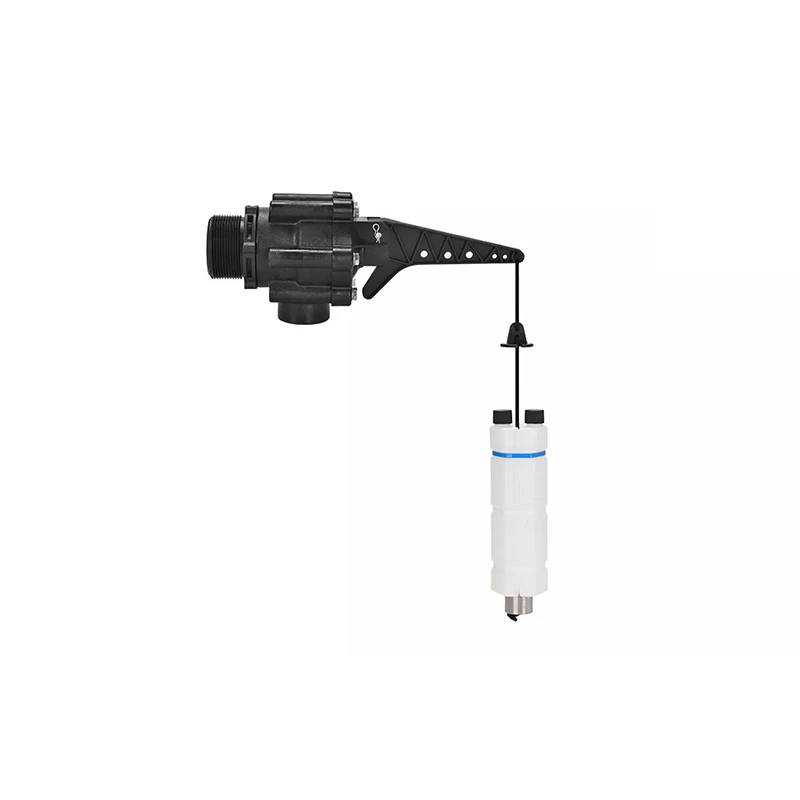

Tank buddy Valve TB50
Specifications
| Size | 2 |
|---|---|
| Usage | Industrial / Home |
| Working Pressure | 1–10 MPa / 1–10 Bar / 15–150 PSI |
| Flow Rate | 600 L/min |
| Model | TB50 |
| Adjustable Water Level | 50 mm up to 2.5 m customized |
Key Features
- High flow. Ideal for all makes and models of tanks.
- Available inlet sizes.Keeps pump operation to a minimum.
- Start and stop levels can be easily adjusted to give water level differentials from 50mm to 2.5m.
Product Description
The Tank buddy Valve TB50 is a patented product, It is ideal for water tanks that are filled by running water or a pressure system controlled by the water pump.The valve gives a level difference that is adjustable from 50mm up to 2.5m to minimize starting and stopping of running water or the pump system(Level difference accept Customization).WORK PRINCIPLE The valve mounts at the top side of the tank. It fits easily through a thin-walled tank or screws into a threaded tank inlet. As the tank empties, the float travels down the cord until it hits the level stopper. The valve then opens immediately to give a full flow. As we discharge the water, the valve now runs constantly and the float rises until it hits the level adjuster. This lifts the arm and the valve shuts down. Observe the pressure that your pump runs at while the tank is filling. Set the pressure switch to turn the pump off at a pressure at least one bar above the running pressure.
- Valve Seal Access System for quick access to valve seal.
- Easy installation
- High Durability
- Precise design
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The flow rate of this model is 600 liters per minute.
The adjustable water level for the Tank Buddy Valve TB50 can be customized from 50 mm up to 2.5 m.
This valve operates within a working pressure range of 1 to 10 MPa, which is equivalent to 1 to 10 Bar or 15 to 150 PSI.
It is ideal for all makes and models of tanks that are filled by running water or a pressure system controlled by a pump.
As the tank empties, the float travels down until it hits the level stopper, opening the valve for full flow. The valve shuts down when the float rises to the level adjuster.
The valve mounts at the top side of the tank and can fit through a thin-walled tank or screw into a threaded tank inlet.
The specific materials used in the construction of this valve are not detailed in the provided information.
The size of this valve is 2 inches.
Yes, the Tank Buddy Valve TB50 features a Valve Seal Access System for quick access to the valve seal.
This valve is suitable for both industrial and home usage.
The valve allows for adjustable level differentials, which minimizes the starting and stopping of the pump system as the tank fills and empties.
Yes, the adjustable water level can be customized according to specific requirements within the range of 50 mm to 2.5 m.
