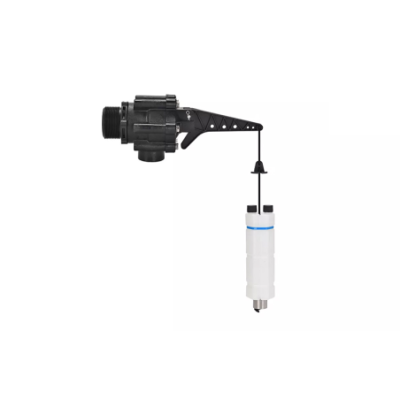

Tank buddy Valve TB80
Specifications
| Size | 3 |
|---|---|
| Usage | Industrial / Home |
| Working Pressure | 1–10 MPa / 1–10 Bar / 15–150 PSI |
| Flow Rate | 600 L/min |
| Model | TB80 |
| Adjustable Water Level | 50 mm up to 2.5 m customized |
Key Features
- High flow. Ideal for all makes and models of tanks.

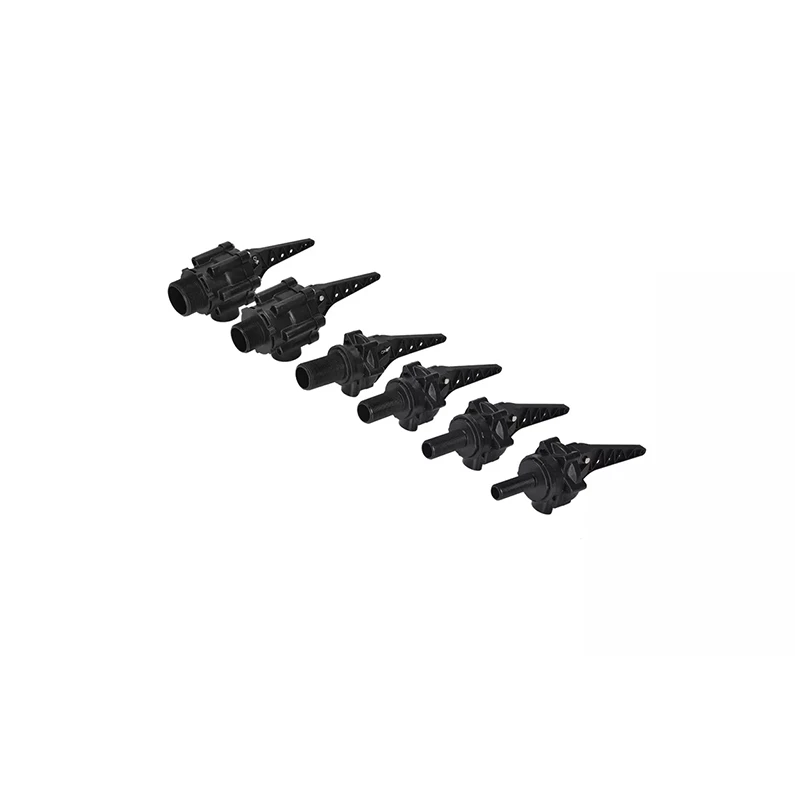

- Available inlet sizes.Keeps pump operation to a minimum.
- Start and stop levels can be easily adjusted to give water level differentials from 50mm to 2.5m.
Product Description

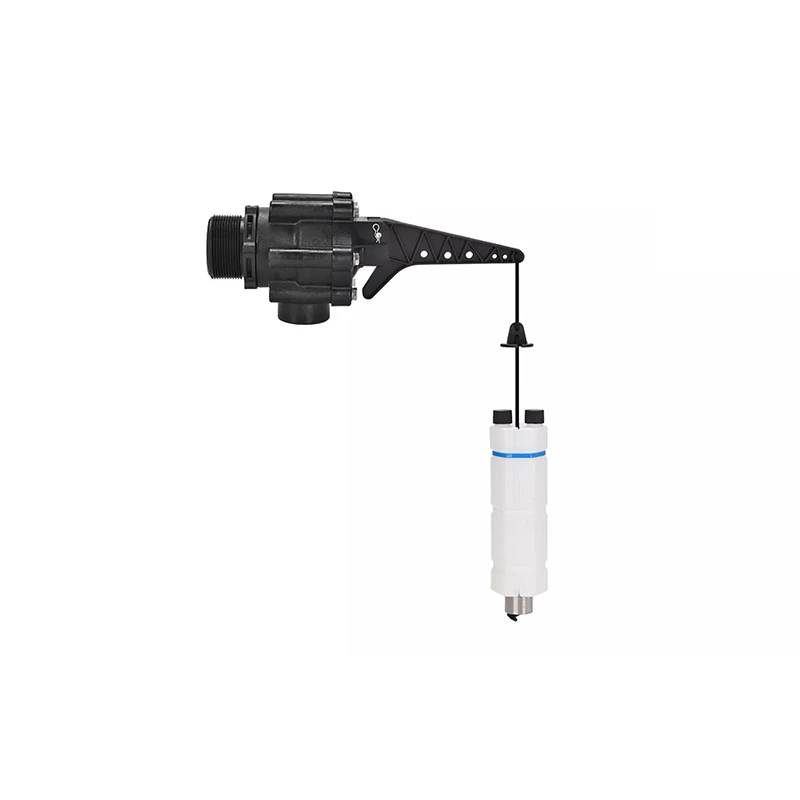

The Tank buddy Valve TB80 is a patented product, It is ideal for water tanks that are filled by running water or a pressure system controlled by the water pump.The valve gives a level difference that is adjustable from 50mm up to 2.5m to minimize starting and stopping of running water or the pump system(Level difference accept Customization).WORK PRINCIPLE The valve mounts at the top side of the tank. It fits easily through a thin-walled tank or screws into a threaded tank inlet. As the tank empties, the float travels down the cord until it hits the level stopper. The valve then opens immediately to give a full flow. As we discharge the water, the valve now runs constantly and the float rises until it hits the level adjuster. This lifts the arm and the valve shuts down. Observe the pressure that your pump runs at while the tank is filling. Set the pressure switch to turn the pump off at a pressure at least one bar above the running pressure.
- Valve Seal Access System for quick access to valve seal.
- Easy installation
- High Durability
- Precise design
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The flow rate of this model is 600 liters per minute.
It operates within a working pressure range of 1 to 10 MPa, which is equivalent to 1 to 10 Bar or 15 to 150 PSI.
The adjustable water level can be set from 50 mm up to 2.5 m, allowing customization to minimize the starting and stopping of the pump system.
This valve is designed for both industrial and home usage, making it versatile for various tank systems.
It can be easily mounted through a thin-walled tank or screwed into a threaded tank inlet, facilitating straightforward installation.
The size of this valve is 3, which refers to its nominal diameter.
Yes, the start and stop levels can be easily adjusted to provide different water level differentials.
As the tank empties, the float travels down until it hits the level stopper, causing the valve to open and allow full flow until the water level rises again, shutting the valve.
Yes, it features a Valve Seal Access System for quick access to the valve seal, enhancing maintenance ease.
The maximum adjustable water level for the Tank Buddy Valve TB80 is 2.5 meters.
Yes, it is ideal for water tanks that are filled by running water or pressure systems controlled by a water pump.
It is suitable for both industrial and home applications, providing flexibility in its use across different environments.
