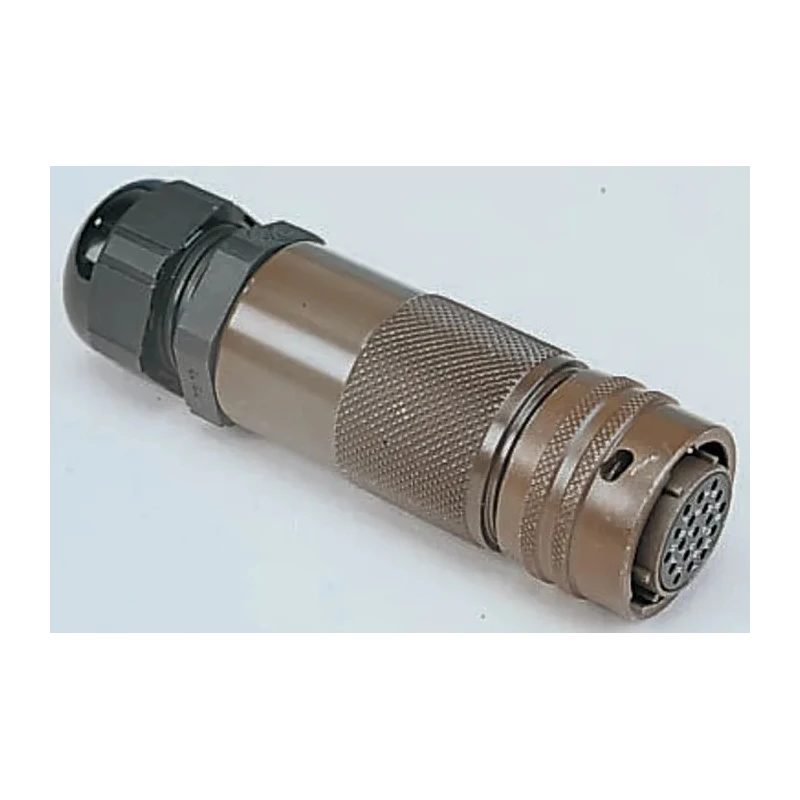

Amphenol Socapex 451 Straight MIL Spec Circular Connector Male with Female Contacts Shell Size 8 Bayonet 45106A83ASPG50

Free Delivery in India | Lowest Global Shipping Charges

Amphenol Socapex 451 Straight MIL Spec Circular Connector Male with Female Contacts Shell Size 8 Bayonet 45106A83ASPG50

Name: Amphenol Socapex 451 Straight MIL Spec Circular Connector Male with Female Contacts Shell Size 8 Bayonet 45106A83ASPG50
Brand: Amphenol Socapex
SKU: 153774
Price: 72.69 USD
Availability: InStock



Category Mil Spec Circular Connector Brand Amphenol Socapex Condition New

Specifications

Country of Origin	India
Brand	Amphenol Socapex
Orientation	Straight
Current	3A
Model	45106A83ASPG50
IP Rating	IP65
Series	451
Termination Type	Solder
Maximum Operating Temperature	125°C
Minimum Operating Temperature	-55°C
Contact Plating	Gold
Contact Gender	Female
Connector Gender	Male
Shell Size	8
Military Standard	MIL-DTL-26482
Mating Type	Bayonet
Shell Plating	Olive Drab Cadmium

Key Features

Complies with MIL-DTL-26482 military standard for rugged applications.
Designed with olive drab cadmium plated shell for durability and corrosion resistance.
Gold plated female contacts ensure reliable electrical conductivity.
Rated for 3A current handling and operates between -55°C to 125°C.
Termination is by soldering, providing secure and stable connections.
Connector features a straight orientation and bayonet mating type for easy and secure locking.
IP65 rated for protection against dust and water jets.
Suitable for transport, measurement, machine tools, and instrumentation uses.

Product Description

Amphenol Socapex 45106A83ASPG50 is a 451 series straight Mil Spec Circular Connector designed for male connectors with female contacts, featuring a shell size of 8 and bayonet mating type. It complies with MIL-DTL-26482, making it suitable for demanding industrial and military applications.

This connector is engineered with an olive drab cadmium plated shell enhancing corrosion resistance and durability. The gold-plated female contacts provide excellent electrical performance, supporting a current rating of 3A.

With operating temperature range from -55°C to 125°C, this solder termination connector ensures secure, reliable connections in harsh environments. The IP65 ingress protection rating means it is protected from dust ingress and water jets, increasing its suitability for industrial settings.

The straight orientation and bayonet mating type facilitate firm, easy mating and unmating. This product is ideal for applications such as transport systems, precision measurement equipment, machine tools, and instrumentation where MIL Spec connectors are required.

The 451 series connectors are recognized for their robustness and reliability in industrial environments, following standards NFC UTE 93422 (HE301) and NF L 54125 (451). Complies with MIL-DTL-26482 military standard for rugged applications.

Designed with olive drab cadmium plated shell for durability and corrosion resistance. Gold plated female contacts ensure reliable electrical conductivity. Rated for 3A current handling and operates between -55°C to 125°C.

Termination is by soldering, providing secure and stable connections. Connector features a straight orientation and bayonet mating type for easy and secure locking. IP65 rated for protection against dust and water jets. Applicable in transport, measurement, machine tools, and instrumentation industrial sectors.
