JST PSI Series Straight Through Hole PCB Header, 5 Contact, 4 mm Pitch, 1 Row, Shrouded B05B-PSILE-1(LF)(SN)

Free Delivery in India | Lowest Global Shipping Charges

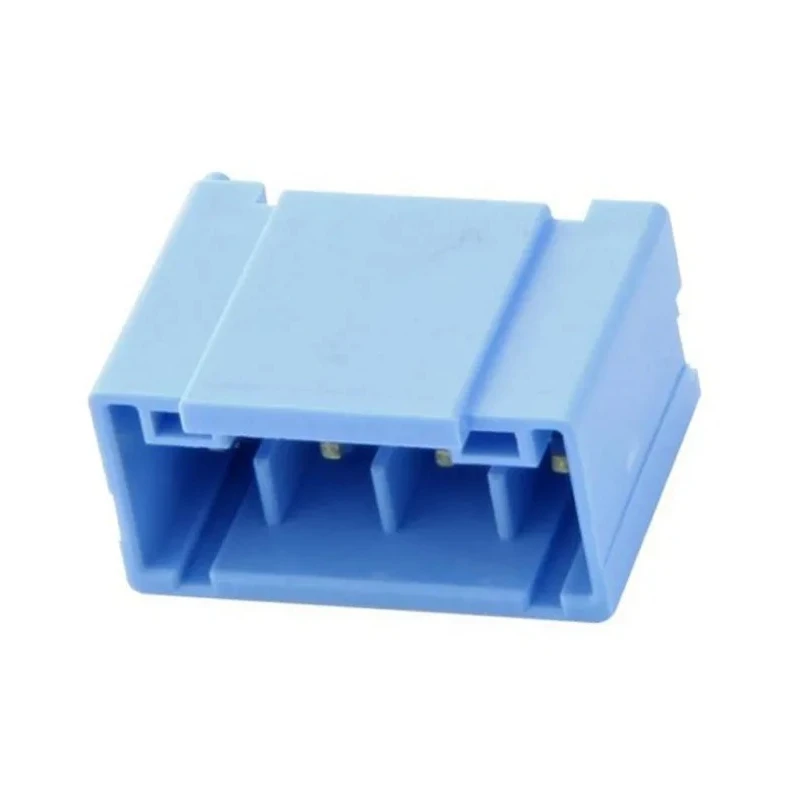

JST PSI Series Straight Through Hole PCB Header, 5 Contact, 4 mm Pitch, 1 Row, Shrouded B05B-PSILE-1(LF)(SN)



Category PCB Header Brand JST Condition New

Specifications

Country of Origin	Malaysia
Voltage	300V
Brand	JST
Orientation	Straight
Current	12A
Model	B05B-PSILE-1(LF)(SN)
Mount Type	Through Hole
Housing Material	Fibreglass Reinforced Polybutylene Terephthalate
Contact Material	Copper Alloy
Series	PSI
Termination Type	Solder
Maximum Operating Temperature	85°C
Minimum Operating Temperature	-25°C
Number of Rows	1
Pitch	4mm
Contact Plating	Tin
Number of Contacts	5
Contact Gender	Male
Shrouded/Unshrouded	Shrouded
Connector System	Wire-to-Board

Key Features

This PCB header supports a maximum current of 12A.
Constructed with fibreglass reinforced polybutylene terephthalate housing for durability.
Features a locking mechanism to ensure a reliable connection.
Designed with keying and color coding to prevent misalignment and mismating.
Suitable for wire-to-board applications with through hole mount type.
Operating temperature range from -25°C to 85°C.
Copper alloy contacts plated with tin for excellent conductivity and corrosion resistance.

Product Description

JST B05B-PSILE-1(LF)(SN) PSI Series Straight Through Hole PCB Header connector is designed for high reliability in wire-to-board applications. This PCB header features 5 male contacts arranged in a single row with a 4 mm pitch, making it suitable for compact and precise electronic assembly.

The housing is made of fibreglass reinforced polybutylene terephthalate, providing excellent mechanical strength while the shrouded design protects the contacts and helps prevent accidental mismating. The connector system employs a locking mechanism for a secure mating connection, ensuring stable electrical continuity in demanding industrial and electronics contexts.

This connector supports a maximum electrical current of 12A and a voltage rating of up to 300V, with operating temperatures ranging between -25°C and 85°C. The contact material is copper alloy plated with tin, optimizing conductivity and corrosion resistance for long-lasting performance.

Additional features include keying and color coding for error-proof installation, and PCB pegs to stabilize and accurately position the header on the PCB surface. The through hole mount type enables robust mechanical attachment suitable for industrial, manufacturing, electronic assembly, and prototype applications.

This PCB header has 5 contacts in one row with a 4 mm pitch. Fibreglass reinforced polybutylene terephthalate housing ensures durability and electrical insulation. The shrouded and locking mechanism design guarantees secure and reliable connectivity.

Copper alloy tin-plated male contacts provide excellent conductivity and corrosion resistance. Supports wire-to-board connection applications in electronics manufacturing and repair. Rated for 12A current and 300V voltage operation with operating temperature from -25°C to 85°C.

Features PCB pegs for enhanced positioning and stability on the circuit board.

This JST PSI Series PCB Header is ideal for applications in industrial electronics, manufacturing equipment, electrical distribution, control systems, and prototyping environments. Explore a wide range of quality PCB connector solutions to meet your design and production needs with EnvMart.
