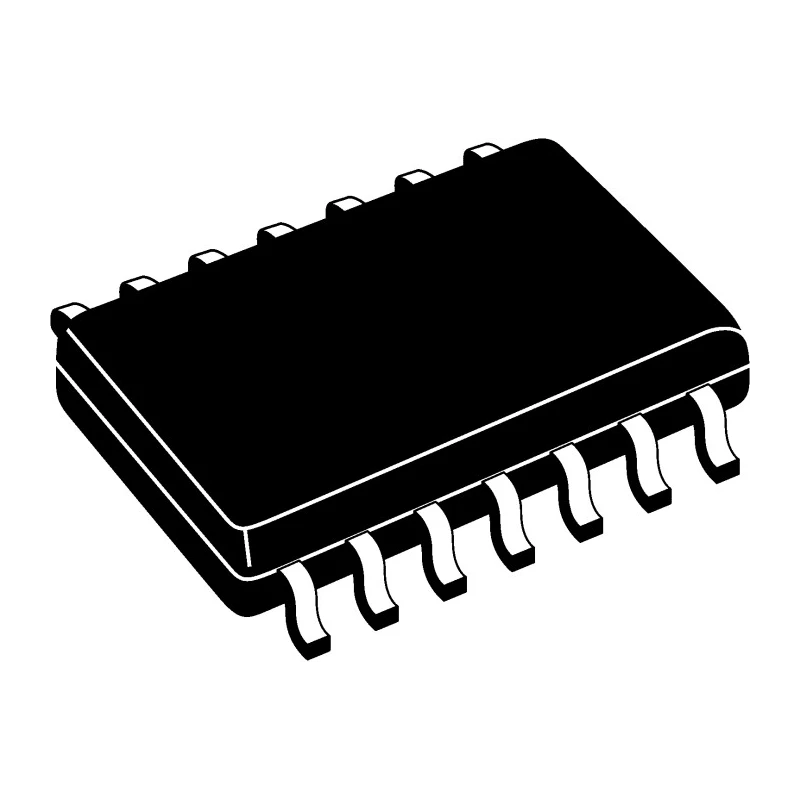

onsemi CMOS Inverter Logic IC 6 Elements, 14-Pin SOIC, TTL Input, 2-6 V Supply 74AC04SC

onsemi 74AC04SC CMOS Inverter Logic IC is a high-performance semiconductor device designed for industrial and electronic circuit applications requiring precise inverter functions. It integrates six independent inverter gates within a 14-pin SOIC package, featuring TTL-compatible inputs and CMOS-compatible outputs, making it suitable for a broad range of logic-level interfacing needs.

The IC operates over a supply voltage range of 2 V to 6 V, providing flexibility for low-voltage digital systems. Its maximum propagation delay time of 10 nanoseconds ensures fast switching speeds, critical for timing-sensitive applications in embedded control, signal processing, and digital communication systems.

Surface mounting is facilitated by the SOIC package type, which offers reduced footprint and ease of assembly on printed circuit boards. The device's operating temperature range extends from -40°C to 85°C, allowing reliable performance in industrial, automotive, and commercial electronics environments.

Electrical characteristics include a maximum high-level output current of -24 mA and a maximum low-level output current of 24 mA, suitable for driving moderate load capacitances and ensuring signal integrity. The compact dimensions (8.75 mm length, 4 mm width, 1.5 mm height) make it ideal for dense electronic assemblies.

This IC supports input and output compatibility with CMOS logic families, enhancing interoperability in mixed-technology systems. The absence of Schmitt trigger inputs indicates standard logic-level transition behavior, important for timing accuracy.

Compliant with the 74AC04 series standards, this device is an advanced CMOS logic solution with wide compatibility and robustness.

Ideal for applications in electronic components, semiconductor logic circuitry, industrial control systems, and embedded device integrations. The packaging facilitates efficient insertion into automated manufacturing processes, optimizing production efficiency. Choose onsemi 74AC04SC for reliable, high-speed inverter logic implementation in your electronic designs.
