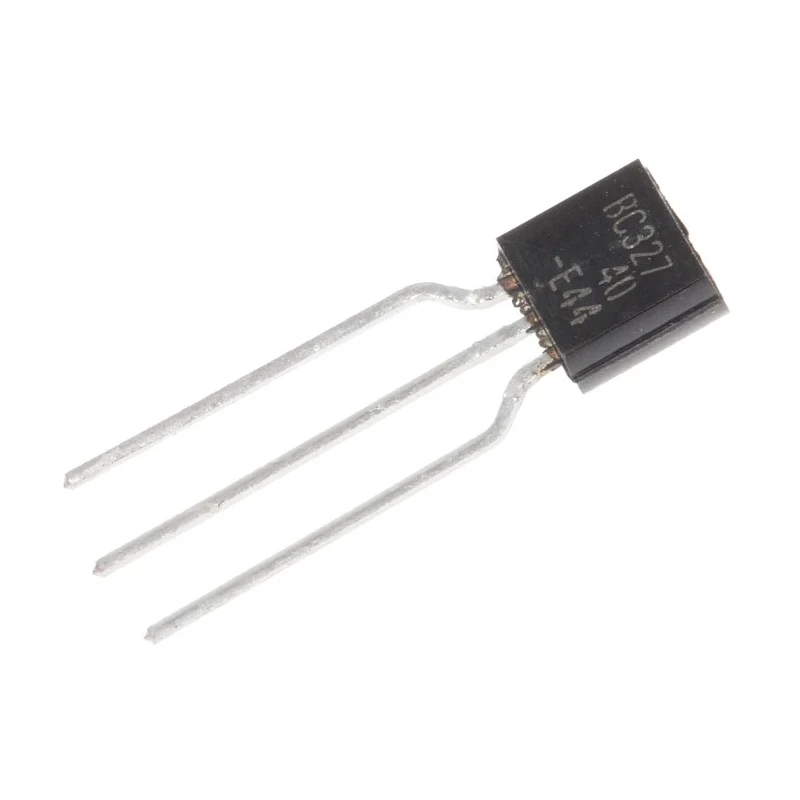

onsemi Small Signal PNP Transistor 3-Pin TO-92 45 V 800 mA 625 mW BC32740TA

onsemi BC32740TA is a Small Signal PNP Transistor housed in a 3-Pin TO-92 package, engineered for various semiconductor and electronic component applications. It supports a maximum DC collector current of 800 mA and maximum collector emitter voltage of 45 V, making it ideal for switching and amplification tasks in industrial and commercial electronics.

The transistor features single configuration and through hole mount type facilitating easy PCB integration. It operates efficiently across a wide temperature range from -55°C to 150°C, ensuring stable performance in demanding environmental conditions.

With a power dissipation rating of 625 mW and a transition frequency of up to 100 MHz, BC32740TA is suitable for medium-frequency signal amplification and switching, common in power supplies, audio amplifiers, and instrumentation circuits.

The transistor’s minimum DC current gain (hFE) of 40 guarantees good signal amplification capability, while the maximum emitter base voltage of 5 V further defines its robust electrical characteristics.

Physical dimensions of the transistor are compact with a height of 18.03 mm, length of 5.2 mm, and width of 4.19 mm, facilitating integration into space-constrained designs. The TO-92 package type also ensures compatibility with legacy and modern electronic assemblies.

Supports maximum DC collector current of 800 mA for reliable operation. Maximum collector emitter voltage rating of 45 V suitable for versatile applications. TO-92 through hole package ensures easy mounting and compatibility.

Provides maximum power dissipation of 625 mW for thermal handling. Operates from -55°C to 150°C for wide temperature range usage. Featuring a transition frequency of 100 MHz suitable for high frequency circuits. Has a minimum DC current gain (hFE) of 40 for efficient amplification.

Single transistor configuration optimized for small signal applications. Compact dimensions: height 18.03 mm, width 4.19 mm, length 5.2 mm. Ideal choice for discrete semiconductor applications in industrial electronics. Browse the comprehensive range of Bipolar Transistors and discrete semiconductor components at EnvMart for industrial-grade electronic design and manufacturing solutions.
