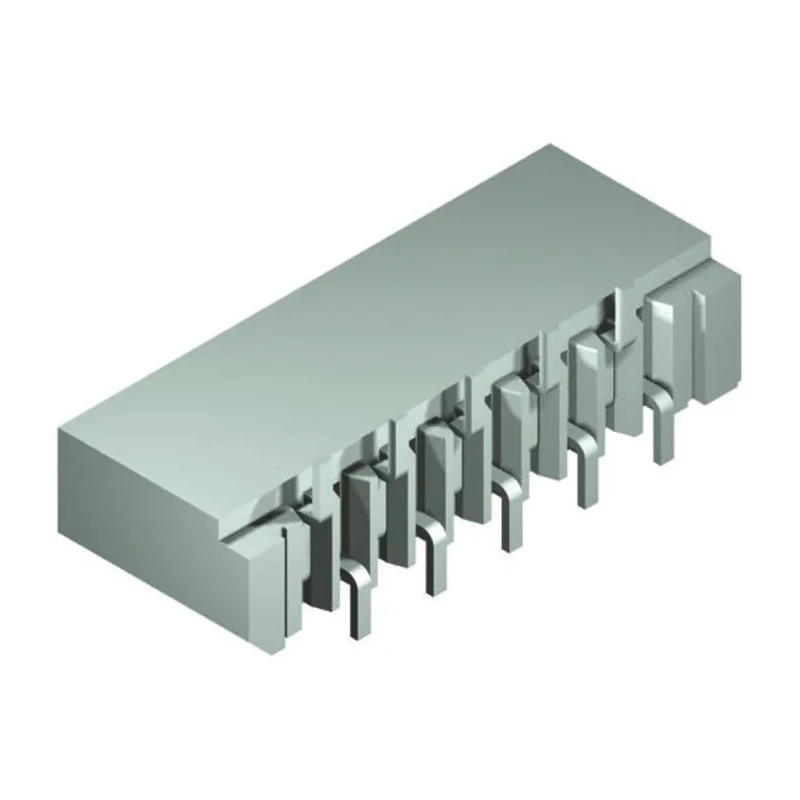

Molex FPC Connector 1 mm Pitch 9 Way Straight Female Solder, Surface Mount 52808-0970
Specifications
| Country of Origin | Malaysia |
|---|---|
| Voltage | 125, 125V ac |
| Brand | Molex |
| Orientation | Straight |
| Current | 500mA |
| Mount Type | Surface |
| Housing Material | Polysulfone |
| Contact Material | Phosphor Bronze |
| Series | 52808 |
| Termination Type | Solder |
| Maximum Operating Temperature | 80°C |
| Sub Type | Easy-On FFC/FPC Connector |
| Minimum Operating Temperature | -20°C |
| Number of Rows | 1 |
| Pitch | 1mm |
| Contact Plating | Tin Bismuth over Nickel |
| Number of Contacts | 9 |
| Contact Gender | Female |
| Connector Gender | Female |
| Insertion Force | Non-ZIF |
Key Features
- Constructed with phosphor bronze contacts ensuring durability and conductivity.
- Features a space-saving design suitable for compact electronic assemblies.
- Locking mechanism included for secure connection retention.
- Contact plating comprises tin bismuth over nickel for enhanced performance.
- Operating temperature range from -20°C to 80°C for reliable operation under various conditions.
- Designed with non-ZIF insertion force for stable connector engagement.
- Housing made from polysulfone for robust insulation and durability.
- Ideal for automotive, consumer electronics, medical, and mobile phone applications.
Product Description
Molex 52808-0970 is a high-quality FPC connector featuring a 1.00 mm pitch with 9 contact positions in a straight, female configuration. The connector is designed for surface mounting on PCBs with solder termination, providing a reliable electrical interface.
The connector is constructed with phosphor bronze contacts plated with tin bismuth over nickel to ensure excellent conductivity and resistance to corrosion. Its polysulfone housing offers mechanical stability and electrical insulation, making it suitable for compact and space-saving applications.
Designed with a non-ZIF insertion force and a locking mechanism, this connector guarantees secure and reliable contact retention during assembly and operation. The staggered contact design aids soldering processes and cable retention, improving production efficiency.
This FPC connector performs reliably across a wide temperature range from -20°C to 80°C and supports voltages up to 125 V AC and currents up to 500 mA, meeting the demands of various industrial and commercial applications.
Typical uses include automotive navigation and audio systems, digital cameras, home security devices, tablet and notebook PCs, patient monitors, GPS, smartphones, and other mobile devices requiring high-density, reliable connections.
Constructed with phosphor bronze contacts ensuring durability and conductivity. Features a space-saving design suitable for compact electronic assemblies. Locking mechanism included for secure connection retention. Contact plating comprises tin bismuth over nickel for enhanced performance.
Operating temperature range from -20°C to 80°C for reliable operation under various conditions. Designed with non-ZIF insertion force for stable connector engagement. Housing made from polysulfone for robust insulation and durability.
Ideal for automotive, consumer electronics, medical, and mobile phone applications. Compatible with 125 V AC voltage and rated for 500 mA current. Explore this high-performance Molex FPC Connector for your electronic assembly needs at EnvMart, your industrial and electronic components domain.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The pitch of this connector is 1.00 mm.
It features 9 contact positions.
The maximum operating temperature is 80°C.
This model uses solder termination for connection.
It is rated for a maximum current of 500 mA.
The housing is made from polysulfone, providing robust insulation and durability.
It supports voltages up to 125 V AC.
This connector is designed with a non-ZIF insertion force for stable engagement.
Typical applications include automotive navigation systems, digital cameras, and smartphones.
The contacts are made of phosphor bronze, plated with tin bismuth over nickel.
The locking mechanism ensures secure connection retention during assembly and operation.
The minimum operating temperature is -20°C.
