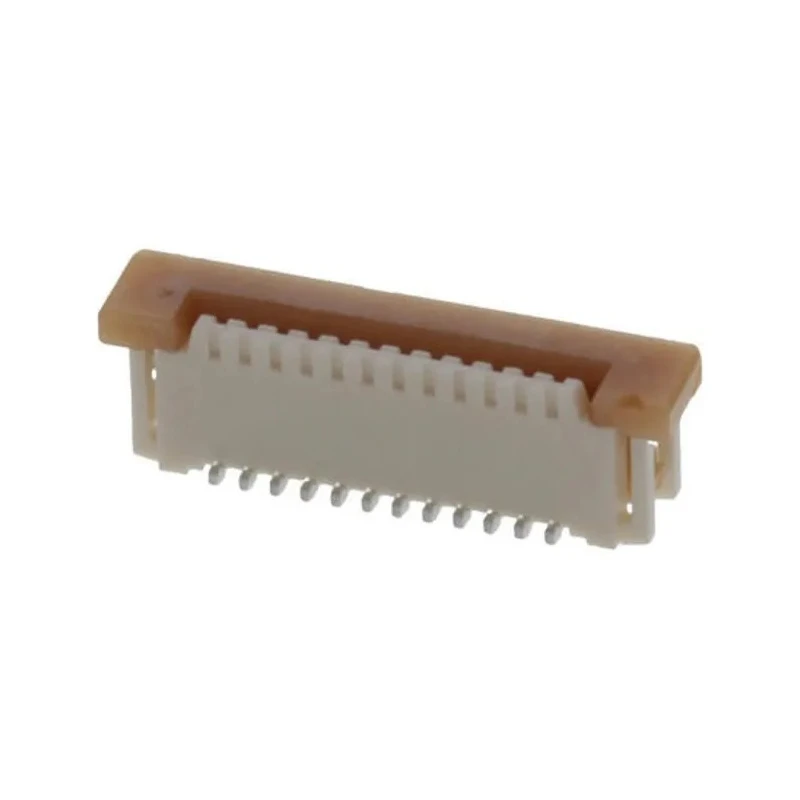

Molex 1 mm Pitch 12 Way Straight Female FPC Connector, Solder 52610-1272

Molex 52610-1272 is a 1 mm pitch 12 way straight female FPC (Flexible Printed Circuit) connector designed for high-performance applications requiring compact and reliable electrical connections. Featuring solder termination and a vertical contact position, this connector is ideal for surface mount PCB assemblies where space efficiency is critical.

The contacts are made from phosphor bronze and plated with gold over nickel, enhancing conductivity and providing excellent resistance to corrosion and tarnishing. This combination ensures stable signal transmission and long-lasting durability.

This FPC connector supports a current rating of 1A and a voltage rating up to 125V, making it suitable for various electronic and automation devices. The connector operates reliably within a broad temperature range from - 40°C to +85°C, allowing performance in diverse environmental conditions.

The connector is equipped with a locking mechanism to secure connections and maintain contact integrity during operation. The nylon housing adds robust mechanical strength along with electrical insulation. Its surface mount design and vertical entry facilitate compact PCB layouts, particularly useful in automated assembly lines and compact electronic devices.

This product is commonly used in electronic devices, automation systems, and electrical industry applications involving flexible circuits and requiring reliable data transmission. It supports up to 30 mating cycles, ensuring it withstands reasonable repeated use without loss of performance.

Compact 1 mm pitch suitable for tight PCB designs. Gold-plated phosphor bronze contacts for high conductivity and corrosion resistance. Surface mount with vertical contact orientation. Supports 1A current and 125V voltage for reliable operation.

Operating temperature range from - 40°C to +85°C. Durable nylon housing offers strength and insulation. Locking mechanism for secure mating connection. Up to 30 mating cycles for repeated use durability. Ideal for flexible printed circuit applications in electronics and automation.
