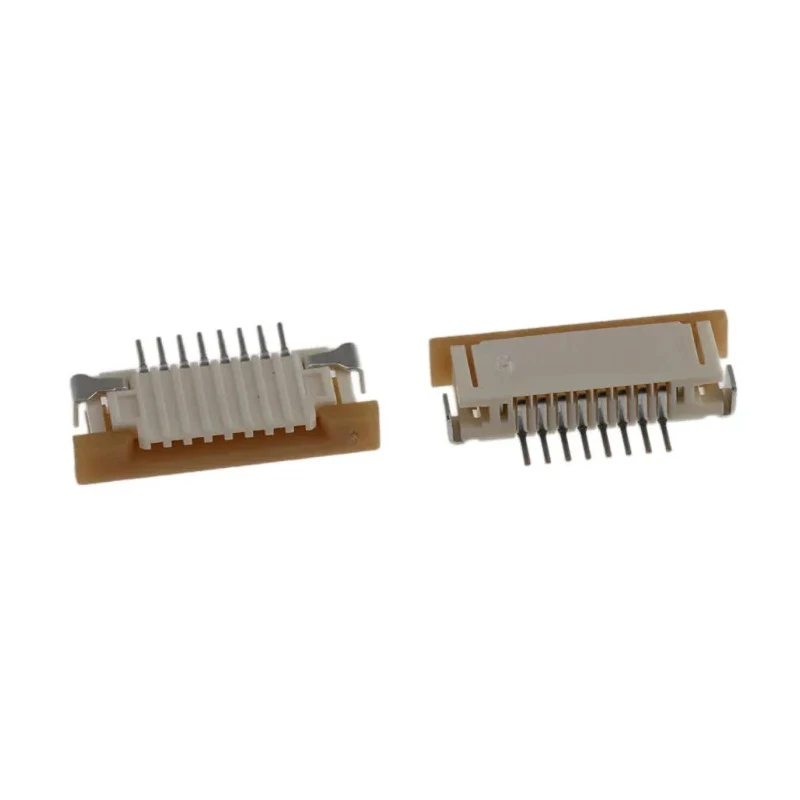

Molex 1 mm Pitch 8 Way Right Angle Female FPC Connector, Solder 52271-0869

Molex 52271-0869 1 mm Pitch 8 Way Right Angle Female FPC Connector offers a space-saving design optimized for compact electronic assemblies requiring high reliability and secure electrical connectivity. This ZIF connector features a slide type actuator which rotates 30° to facilitate easy insertion of the flexible printed circuit (FPC), ensuring minimal wear during repeated cycles.

Constructed with phosphor bronze contacts plated with gold over nickel, the connector guarantees excellent conductivity and corrosion resistance. The nylon housing provides sturdy insulation and helps guide the FPC into place for accurate alignment. The bottom contact position with right angle orientation allows flexible PCB mounting options with solder tabs ensuring secure solder tail retention and strain relief.

Capable of handling 500 mA current at 50 volts AC, this connector is suitable for a wide range of industrial and consumer electronics including automotive navigation systems, digital cameras, mobile phones, medical monitors, and telecommunications equipment. Its operating temperature range from -20°C to +85°C enables reliability across various environmental conditions.

The 1.00 mm pitch and 8 contact positions facilitate compact and precise connections. Zero Insertion Force (ZIF) actuator minimizes contact wear and extends connector lifespan. Gold over nickel plating on phosphor bronze contacts enhances conductivity and durability.

Nylon housing ensures mechanical strength and accurate FPC alignment. Solder termination with locking mechanism secures the connector to PCB and resists strain during use. Right angle configuration suits space constrained PCB layouts.

Wide temperature range supports diverse industrial and commercial applications. Widely used in automotive, medical, communication, and consumer electronics sectors.

This Molex connector represents a high-quality solution for electronic device designers seeking durable and reliable FPC connectivity with ease of installation and maintenance. Browse EnvMart for more FPC Connectors and related electronic components from leading manufacturers.
