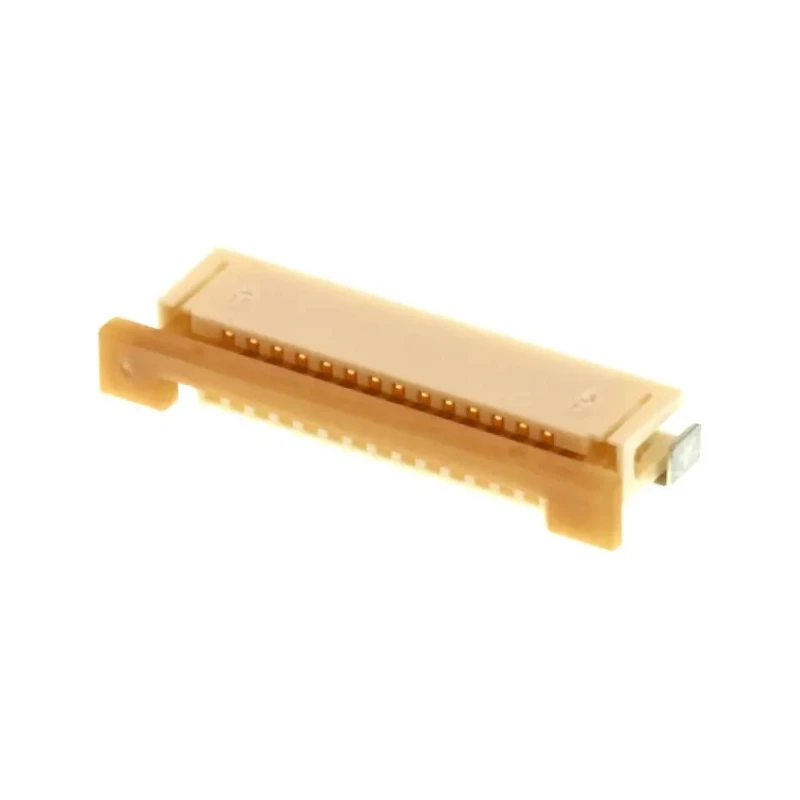

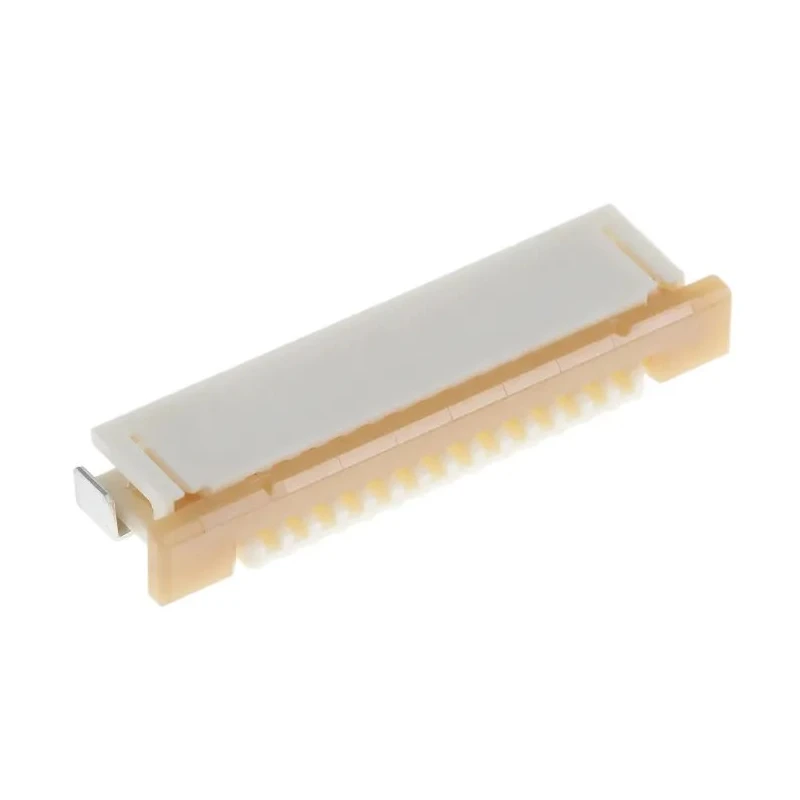

Molex 1 mm Pitch 14 Way Right Angle Female FPC Connector, Solder Termination 52271-1469

Molex 52271-1469 is a 14 way right angle female FPC (Flexible Printed Circuit) Connector featuring a compact 1 mm pitch designed for reliable low-profile PCB connections. It uses solder termination and a Zero Insertion Force (ZIF) slide actuator, making it suitable for repeated cycling with minimal wear.

The connector incorporates a robust nylon housing that supports moisture resistance, enhancing durability in industrial and commercial environments. Gold-plated phosphor bronze contacts optimize electrical flow and maintain secure contact retention even when the cable is moved.

It supports a current rating of 500mA and an operating voltage of 50V AC, suitable for sensitive electronics. The contact position is on the bottom with a right angle orientation allowing space-saving on circuit boards. Solder tails and tabs ensure firm PCB retention and provide strain relief to solder joints.

The operating temperature range spans from -40°C to 85°C, suitable for automotive, consumer electronics, medical devices, and mobile applications. Its locking mechanism guarantees secure connections in demanding conditions.

This FPC connector series is ideal for use in data terminals, notebook computers, LCD TVs, and other electronics requiring compact reliable connections. Manufactured to high standards in Japan, it provides excellent performance and longevity.

Robust nylon housing resists moisture for demanding applications. Gold-plated phosphor bronze contacts ensure optimal electrical conductivity. Zero Insertion Force slide actuator for easy and secure FPC insertion. Solder tails and tabs provide secure PCB retention with strain relief.

Right angle orientation with bottom contact position for compact PCB design. Rated for 500mA current and 50V AC voltage operation. Operating temperature from -40°C to 85°C suitable for diverse industries. Ideal for use in data terminals, computers, LCD TVs, and more.

Manufactured in Japan adhering to strict quality standards.

This Molex FPC Connector is a reliable choice for industrial, laboratory, telecommunications, consumer electronics, and manufacturing applications. Explore additional connectors and components within the Electronics & Electricals category at EnvMart for your project needs.
