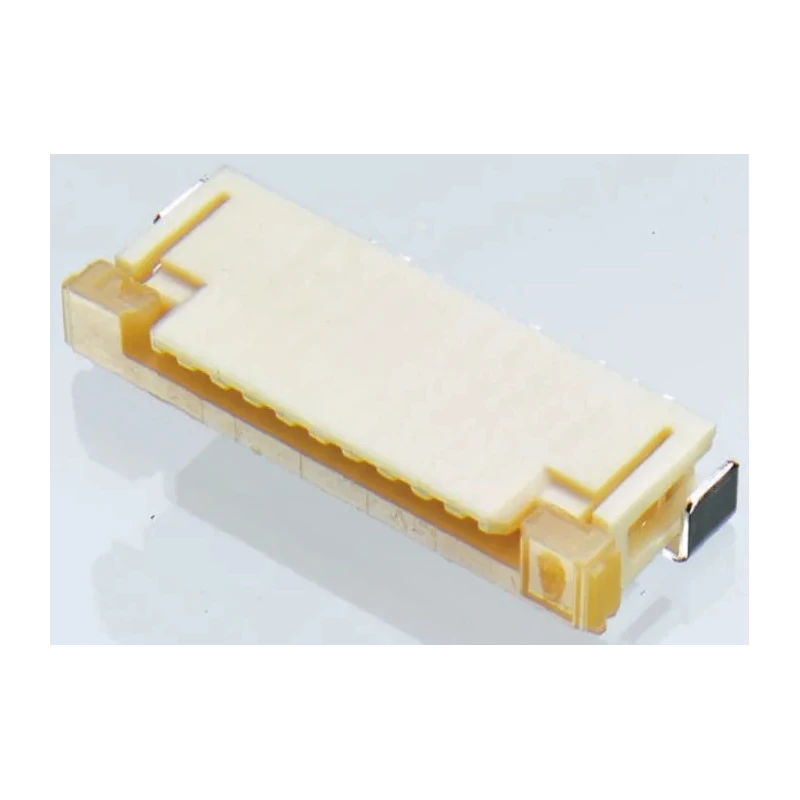

Molex 1 mm Pitch 18 Way Right Angle Female FPC Connector, Solder 52207-1860

Molex 52207-1860 is an 18 Way Right Angle Female FPC Connector with a 1 mm pitch, designed for secure, high-reliability electrical connections in compact electronic assemblies.

Featuring a Zero Insertion Force (ZIF) slide type actuator, this connector simplifies FPC insertion while ensuring a secure, stable connection mechanism. The phosphor bronze contacts plated with gold over nickel provide outstanding conductivity and corrosion resistance. The connector's nylon housing is engineered for durability with an integrated locking mechanism to maintain connection integrity during operation.

It supports a current rating of 1A and a voltage rating of 125V, suitable for use in consumer electronics, automotive systems, medical devices, communications hardware, and mobile phone applications. The 18 contact points arranged in a single row with a right-angle orientation and top contact positions enable dense PCB layouts and compact device packaging.

The connector's operating temperature range from -20°C to +85°C enhances its usability in various industrial and environmental conditions. The solder termination style and solder tabs on the base afford excellent PCB retention and strain relief, improving mechanical stability in surface mount technology assembly processes.

These connectors are widely applied in automotive navigation and audio devices, digital cameras, home security systems, tablet and notebook computers, patient monitoring equipment, GPS modules, smartphones, and other compact electronics.

This connector features a space-saving design ideal for tight packaging applications. The Zero Insertion Force (ZIF) slide type actuator enables easy insertion and secure connection. It is made from phosphor bronze contacts plated with gold over nickel for excellent conductivity.

The housing is made of durable nylon with locking mechanism for secure fitment. Rated for 1A current and 125V voltage, suitable for various electronic applications. Operating temperature range is from -20°C to 85°C, facilitating use in diverse environments.

Right angle orientation with top contact position supports surface mount PCB assembly. Solder tabs provide strain relief and robust PCB retention for long-term stability. Explore the Molex product range in the FPC Connector category at EnvMart for reliable connectors tailored to your precise industrial, electronic, and manufacturing needs.
