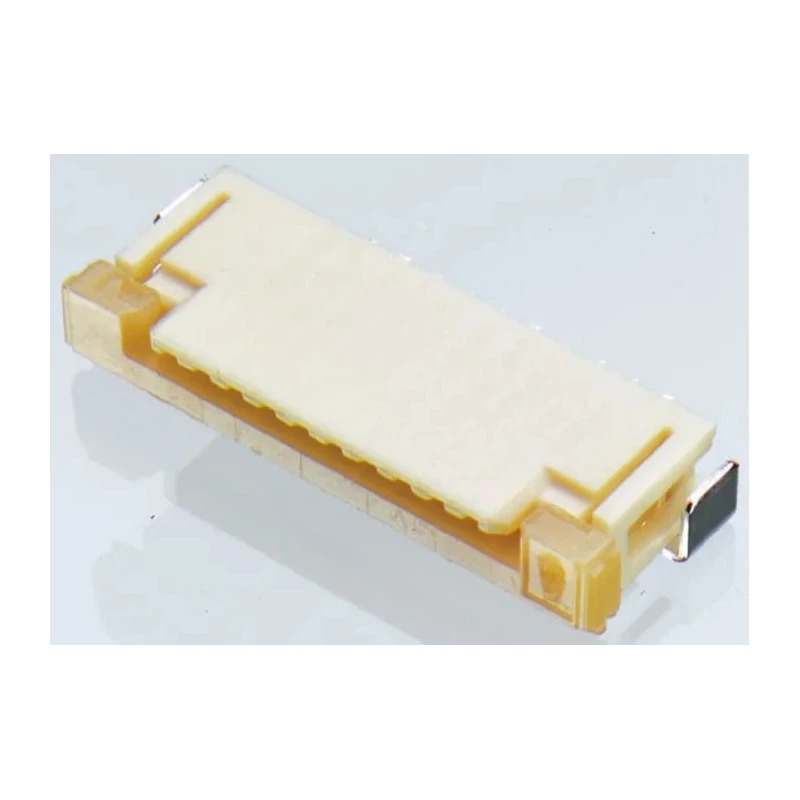

Molex 1 mm Pitch 7 Way Right Angle Female FPC Connector, Solder 52271-0779
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 50, 50V ac |
| Brand | Molex |
| Orientation | Right Angle |
| Current | 500mA |
| Mount Type | Surface |
| Housing Material | Nylon |
| Contact Material | Phosphor Bronze |
| Series | 52271 |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Sub Type | Easy-On FFC/FPC Connector |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 1 |
| Pitch | 1mm |
| Contact Plating | Tin Bismuth Alloy |
| Number of Contacts | 7 |
| Contact Gender | Female |
| Connector Gender | Female |
| Insertion Force | ZIF |
| Contact Position | Bottom |
Key Features
- Features a low insertion force ZIF slide actuator for easy FPC insertion and secure connection.
- Constructed with phosphor bronze contacts plated with tin bismuth alloy for reliable conductivity.
- Housing made of durable nylon supports a compact, right angle design for space-saving PCB layouts.
- Rated for 50 V ac and 500 mA current handling, suitable for low power electronic applications.
- Operates reliably between -40°C and 85°C for broad environmental compatibility.
- Includes solder tabs on the base for secure PCB retention and strain relief.
- Designed with movable contacts that maintain secure contact retention under cable movement.
- Ideal for use in automotive, consumer electronics, medical, and mobile device industries.
Product Description
Molex 52271-0779 1 mm pitch 7 way right angle female FPC Connector, solder termination, is designed for reliable and secure connections in compact electronic assemblies. The connector integrates a zero insertion force (ZIF) slide actuator that eases FPC insertion and ensures a secure connection, reducing wear from repeated cycles.
Manufactured with phosphor bronze contacts, plated with tin bismuth alloy, and housed within robust nylon, it offers durability and excellent electrical performance. Its right angle orientation with bottom contact positioning allows efficient use of PCB space in tight packaging environments.
This 7 contact connector is rated for 50 V ac voltage and supports a current of up to 500 mA. It is designed to work within a temperature range of -40°C to 85°C, making it suitable for demanding applications across automotive, consumer electronics, medical devices, and mobile communications.
The solder tabs provide strong PCB retention and strain relief to protect solder joints. The connector's movable contacts maintain secure electrical engagement even under cable movement, ensuring signal integrity.
Low insertion force ZIF slide actuator provides easy and secure FPC connection. Phosphor bronze contacts with tin bismuth alloy plating ensure reliable conductivity. Nylon housing and right angle design allow space-saving PCB layout.
Rated 50 V ac, 500 mA for low power electronic applications. Operational temperature range from -40°C to 85°C for versatile environments. Solder tabs add mechanical retention and strain relief on PCB. Movable contacts maintain electrical contact with cable movement.
Wide industrial use including automotive, medical, and mobile devices.
This product is a key component in FPC interconnect systems and is part of the Molex 52271 family known for ease of use and durability. It is ideal for electronic equipment requiring high reliability in compact assemblies.
Explore the electronics components category at EnvMart for this and other connectors supporting your industrial and manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This connector is rated for 50 V ac, making it suitable for low power electronic applications.
It can handle a maximum current of 500 mA, which is appropriate for low power applications.
The connector features phosphor bronze contacts plated with tin bismuth alloy, and its housing is made of durable nylon.
It operates reliably within a temperature range of -40°C to 85°C, allowing for versatility in various environments.
The low insertion force ZIF slide actuator allows for easy FPC insertion and ensures a secure connection, reducing wear from repeated cycles.
This model features a right angle orientation, which is designed for efficient use of PCB space in compact assemblies.
It has 7 contacts, making it suitable for various electronic applications requiring multiple connections.
The connector utilizes solder termination, which provides strong mechanical retention on the PCB.
The pitch of this connector is 1 mm, which is standard for many flexible printed circuit applications.
It is ideal for use in automotive, consumer electronics, medical devices, and mobile communications due to its reliable performance.
The movable contacts are designed to maintain secure electrical engagement even under cable movement, ensuring signal integrity.
This connector is designed for surface mounting, which is common in compact electronic assemblies.
