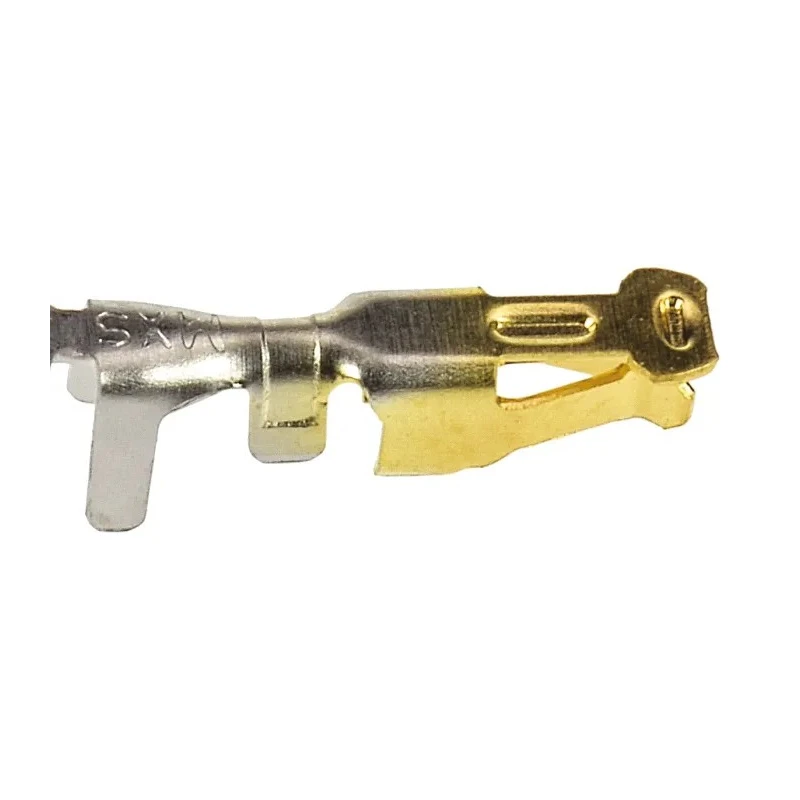

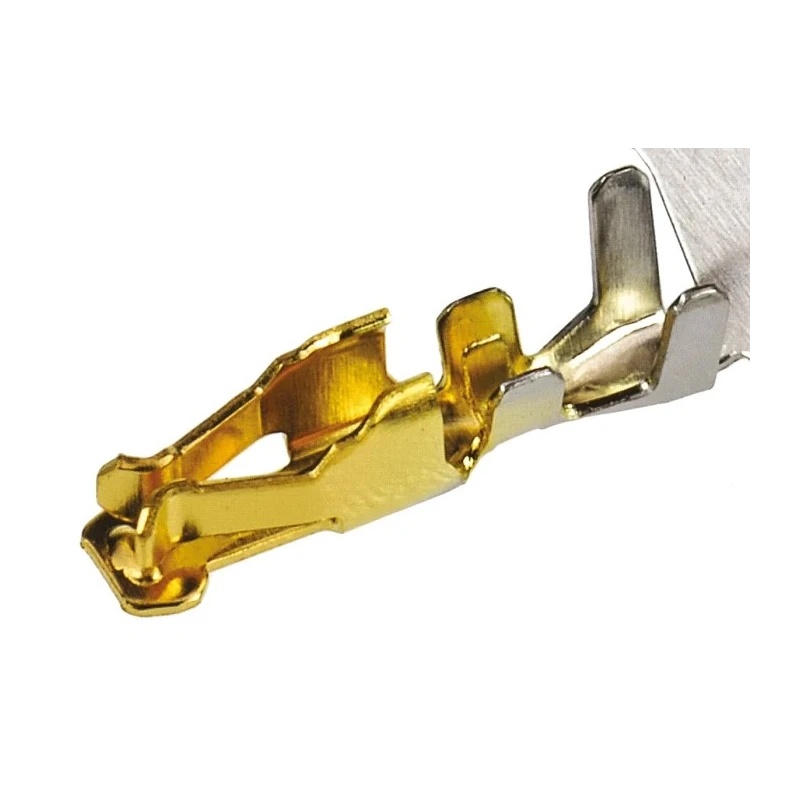

Molex 50394 Series Female Crimp Terminal, Gold Plated Phosphor Bronze, 2A, 30 AWG Min, 24 AWG Max 50394-8052
Specifications
| Country of Origin | India |
|---|---|
| Brand | Molex |
| Current | 2A |
| Gender | Female |
| Contact Material | Phosphor Bronze |
| Series | 50394 |
| Termination Type | Crimp |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| For Use With | Milli-Grid Connector Housing |
| Contact Plating | Gold |
| Minimum Wire Size mm² | 0.05mm² |
| Maximum Wire Size mm² | 0.2mm² |
| Minimum Wire Size AWG | 30AWG |
| Maximum Wire Size AWG | 24AWG |
| Maximum Contact Resistance | 40mΩ |
Key Features
- Constructed from phosphor bronze with gold plating for enhanced conductivity and corrosion resistance.
- Supports wire sizes from 0.05mm² to 0.2mm², suitable for fine signal and wire-to-board connections.
- Rated maximum current of 2 amperes and maximum operating temperature of 105°C.
- Ensures low contact resistance up to 40 milliohms for efficient electrical performance.
- Compatible with Milli-Grid connector housings to secure reliable mating within a 2.00 mm pitch.
- Durable design rated for up to 50 mating cycles to meet industrial automation needs.
- Operates reliably over a wide temperature range from -40°C to 105°C for demanding environments.
Product Description
Molex 50394-8052 Female Crimp Terminal offers a precise and high-quality solution for wire-to-board and wire-to-wire connections in electronic assemblies. This terminal belongs to the trusted 50394 Series and features gold plating on phosphor bronze contact material, which provides superior electrical conductivity and resistance against oxidation.
Designed for use with Milli-Grid connector housings, this female crimp terminal accommodates wire sizes ranging from 0.05mm² (30 AWG) up to 0.2mm² (24 AWG), making it ideal for delicate signal connections and power delivery up to 2 amps. Its compact 2.00 mm pitch configuration allows for high-density connector designs commonly used in industrial, automation, and consumer electronics applications.
The maximum operating temperature of 105°C ensures stable performance in thermal cycling and elevated temperature conditions often found in machinery and instrumentation. Its low maximum contact resistance of 40 milliohms contributes to efficient signal integrity and minimal electrical losses.
This female crimp terminal is manufactured to withstand up to 50 mating cycles, assuring durability for repeated assembly and maintenance operations. Its temperature tolerance from -40°C to +105°C enables its use in a variety of environments, from cold storage to heated enclosures.
Gold plating enhances resistance to oxidation and electrical conductivity. Phosphor bronze contact material balances mechanical strength with conductivity. Compatible with Milli-Grid connector housings for secure connections.
Supports wire sizes from 30 AWG to 24 AWG, suitable for signal and power circuits. Rated for 2 amps current and 125V AC/DC voltage for versatile applications. Durability rated for 50 mating cycles meets industrial usage demands.
Wide operational temperature from -40°C to 105°C for harsh conditions.
This terminal is well-suited for use in industrial automation, electronic manufacturing, telecommunications equipment, and any application requiring reliable, compact, and durable female crimp connections.
Explore our full range of Molex connectors and crimp terminals to find the perfect solution for your industrial or electronics project on EnvMart.
Explore more products in our Crimp Contacts category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum current rating for this female crimp terminal is 2 amperes.
This model supports wire sizes ranging from 30 AWG (0.05 mm²) to 24 AWG (0.2 mm²).
The maximum operating temperature of this terminal is 105°C.
The contact material used in this terminal is phosphor bronze, which is gold plated for enhanced conductivity and corrosion resistance.
This terminal is rated for up to 50 mating cycles, ensuring durability for repeated use.
The maximum contact resistance is 40 milliohms, contributing to efficient electrical performance.
Yes, this terminal is compatible with Milli-Grid connector housings, allowing for reliable mating.
The minimum operating temperature for this model is -40°C.
The termination type of this terminal is crimp, designed for secure connections.
This terminal is suitable for applications in industrial automation, electronic manufacturing, and telecommunications equipment.
This terminal is rated for a voltage of 125V AC/DC, making it versatile for various applications.
This female crimp terminal belongs to the Molex 50394 Series.
