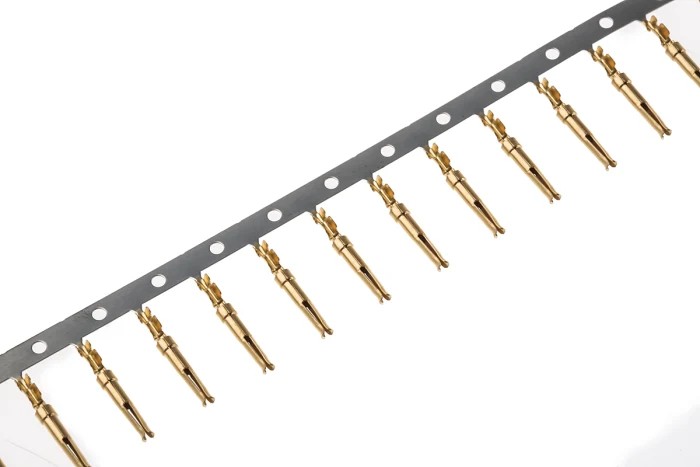

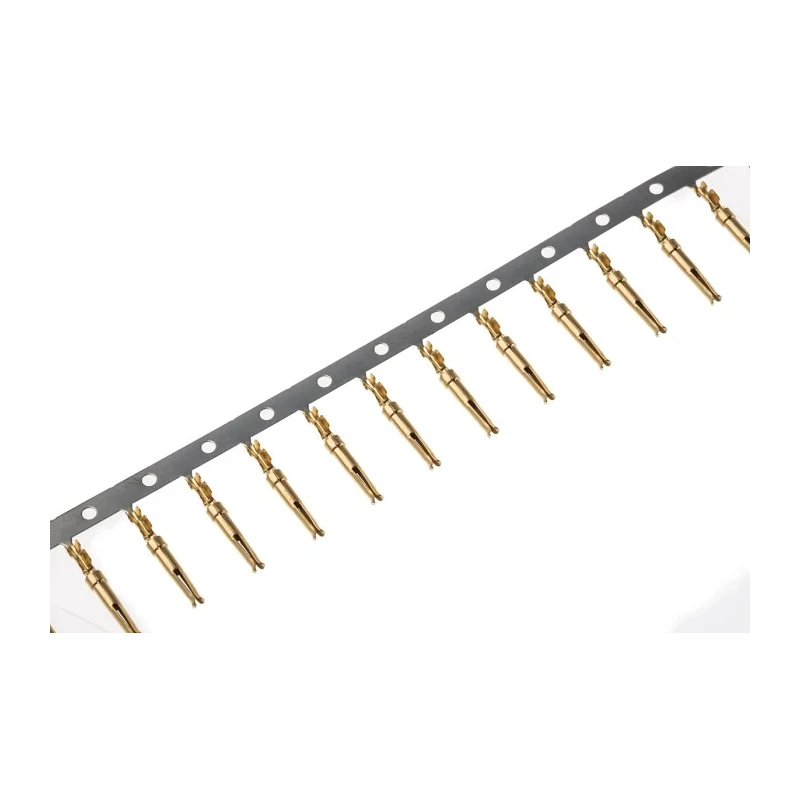

TE Connectivity AMPLIMITE HDP-20 Series Female Crimp D-Sub Connector Contact Gold over Nickel 20 AWG 66505-3
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Current | 2A |
| Length | 14.35mm |
| Model | 66505-3 |
| Gender | Female |
| Contact Material | Phosphor Bronze |
| Series | AMPLIMITE HDP-20 |
| Termination Type | Crimp |
| Contact Type | Signal |
| Contact Plating | Gold over Nickel |
| Minimum Wire Size mm² | 0.08mm² |
| Maximum Wire Size mm² | 0.6mm² |
| Minimum Wire Size AWG | 28AWG |
| Maximum Wire Size AWG | 20AWG |
| Contact Size | 20 |
| Maximum Contact Resistance | 15mΩ |
| • Pin diameter | 0.04 (1.02) |
Key Features
- Connector contact is made of phosphor bronze material for durability.
- Gold plating over nickel reduces contact resistance and improves conductivity.
- Contact size is 20 with length 14.35mm suitable for standard D-Sub connectors.
- Supports wire sizes from 28 AWG to 20 AWG ensuring versatility.
- Maximum contact resistance is 15 milliohms ensuring efficient signal transmission.
- Designed to handle continuous current up to 2 amperes safely.
- Termination type is crimp for secure and reliable wire attachment.
- Pin diameter measures approximately 1.02mm for compatibility with mating connectors.
Product Description
TE Connectivity 66505-3 Female Crimp D-Sub Connector Contact from the AMPLIMITE HDP-20 series is a high-quality signal contact designed for use with the AMPLIMITE D-Sub connector system. This contact features a robust phosphor bronze construction and gold plated over nickel finish, which provides excellent conductivity and corrosion resistance.
The contact size is 20 with a length of 14.35mm. It supports wire sizes ranging from 28 AWG up to 20 AWG, allowing a range of wiring options with a termination via reliable crimping. The maximum current rating is 2 amperes, suitable for standard signal transmission requirements. The contact ensures low resistance, with a maximum contact resistance of 15 milliohms, enhancing signal integrity.
The crimp contacts are ideal for applications in electronics manufacturing, industrial equipment, communication devices, and other environments where dependable electronic connections are critical. Although no official standards or approvals are listed, the product is engineered to meet high reliability demands.
Compatible tooling includes TE Connectivity Crimp Tool 446-816 and Insertion/Extraction Tool 446-822, facilitating installation and maintenance. These contacts are supplied typically on reels to improve production efficiency in automated assembly lines, supporting high-volume manufacturing.
Phosphor bronze contact material provides mechanical strength and durability. Gold plating over nickel ensures low contact resistance and corrosion protection. Supports wire sizes 0.08 mm² to 0.6 mm² (28 AWG to 20 AWG). Contact length is 14.35 mm with 20 size contact design.
Maximum current rating is 2A suitable for signal transmission. Termination type is crimp for secure electrical connection. Pin diameter approximately 1.02 mm for connector compatibility. Compatible with AMPLIMITE D-Sub connector system.
Ideal for industrial, electronic, automotive, and communication applications. Facilitates automated assembly with reel packaging format. Explore a broad range of TE Connectivity connectors and accessories at EnvMart for your industrial and manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum current rating for this connector contact is 2 amperes, suitable for standard signal transmission requirements.
This model supports wire sizes ranging from 28 AWG to 20 AWG, or 0.08 mm² to 0.6 mm².
The contact length is 14.35 mm, designed for compatibility with standard D-Sub connectors.
The contact is made of phosphor bronze, which provides mechanical strength and durability.
The maximum contact resistance is 15 milliohms, which helps enhance signal integrity.
This connector uses a crimp termination type for secure and reliable wire attachment.
The pin diameter is approximately 1.02 mm, ensuring compatibility with mating connectors.
Compatible tooling includes the TE Connectivity Crimp Tool 446-816 and Insertion/Extraction Tool 446-822.
This connector is suitable for applications in electronics manufacturing, industrial equipment, and communication devices.
The contact features gold plating over nickel, which reduces contact resistance and improves conductivity.
This connector contact belongs to the AMPLIMITE HDP-20 series by TE Connectivity.
This connector contact is female, designed for use with compatible male connectors.
