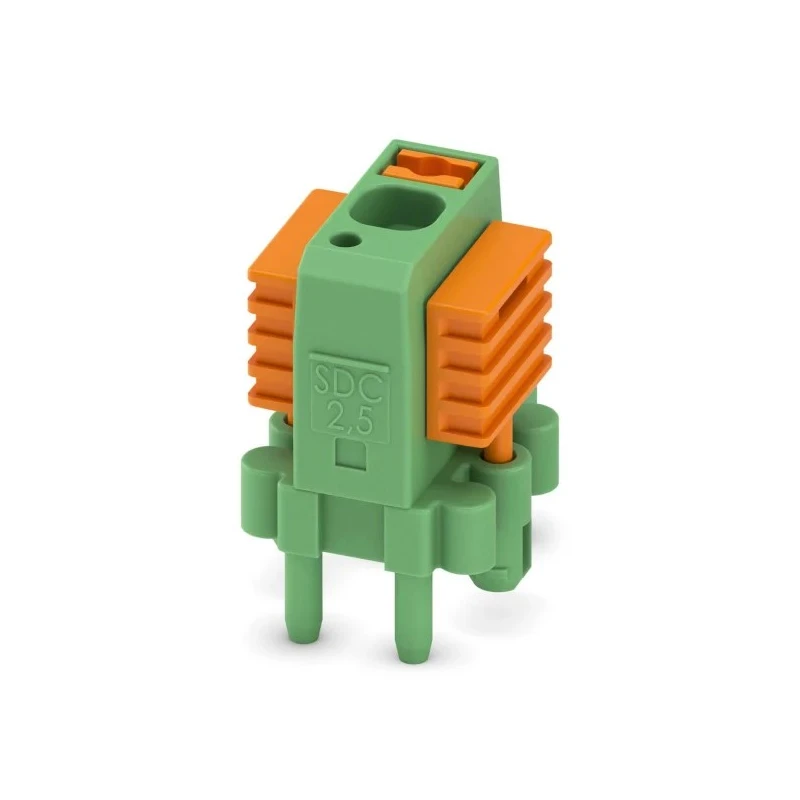

Phoenix Contact SDC 2.5/ 1-PV-5.0-ZB Series Straight PCB Terminal Block, 1 Contact, 5 mm Pitch, 12A, Polyamide 1864024

Phoenix Contact 1864024 is a single-contact, straight PCB terminal block from the SDC 2.5/ 1-PV-5.0-ZB series, engineered for high-reliability connections in space-sensitive PCB designs. This terminal block incorporates innovative SKEDD technology, which leverages push-in spring contacts to adapt precisely into PCB holes, eliminating the need for soldering or additional press-fit mechanisms. This not only decreases installation time but also reduces the requirement for specialized machinery during assembly.

With a 5 mm pitch and a single-row configuration, the terminal block serves as an optimal solution for compact electronic and industrial control systems. Its 2.5 mm² nominal wire size and 12A current rating make it suitable for applications needing robust power handling with minimal footprint. The housing is made of polyamide, providing strong thermal stability, mechanical durability, and electrical insulation properties for demanding environments.

The block is rated for up to 320V, complying with international safety standards such as cULus Recognised, UL Recognised, and EU RoHS. This ensures excellent operational safety and environmental compliance in sectors including automotive, machine construction, power tools, white goods, solar power, medical systems, and more.

SKEDD technology not only makes the connector easy to assemble and disassemble but also facilitates recycling and enhances PCB longevity, as no thermal processing steps are involved. The locking mechanism between the housing and PCB delivers vibration-resistant connections, vital for industries exposed to harsh operating conditions.

Installation is straightforward: wires are plugged directly into the terminal block without the need for headers, freeing up PCB real estate and simplifying cable management in control cabinets or electronics enclosures.

This product is manufactured in Germany, assuring high manufacturing standards. It is routinely employed in industrial electronics, consumer electronics, automotive circuits, machine construction, control cabinets, power tool interfaces, and solar energy applications.

SKEDD push-in spring contacts for fast and reliable wire insertion. Supports 12A nominal current and 2.5 mm² wire size. 5 mm pitch and single-row, straight orientation optimize PCB layout. Polyamide housing ensures durability and insulation.

Complies with cULus, UL, and EU RoHS standards. No soldering or press-fit required - reduces assembly time and tooling costs. Vibration-resistant and easy to recycle - ideal for industrial and automotive uses. Country of origin: Germany.
