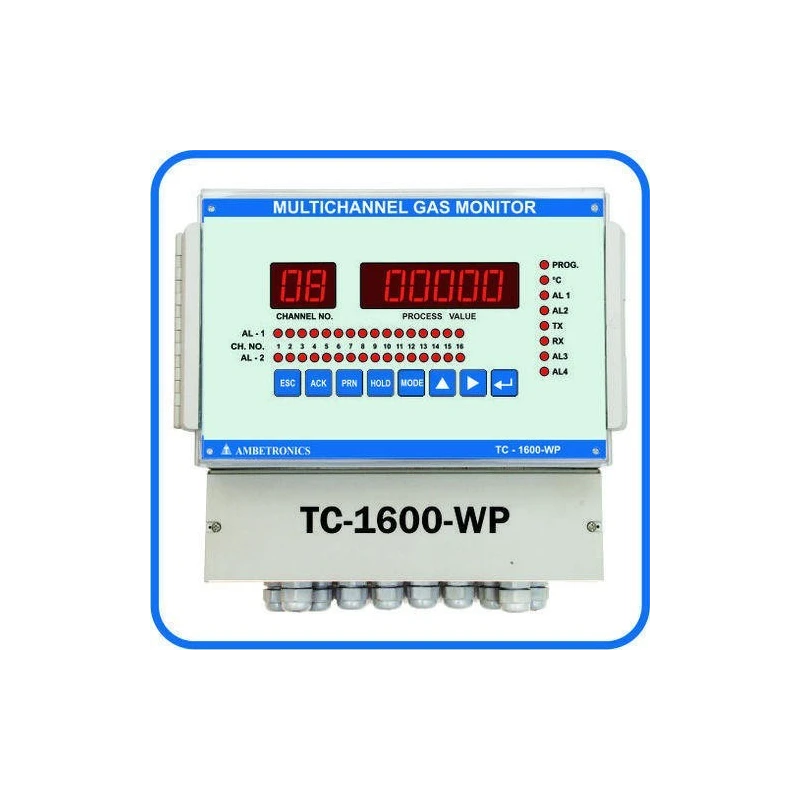

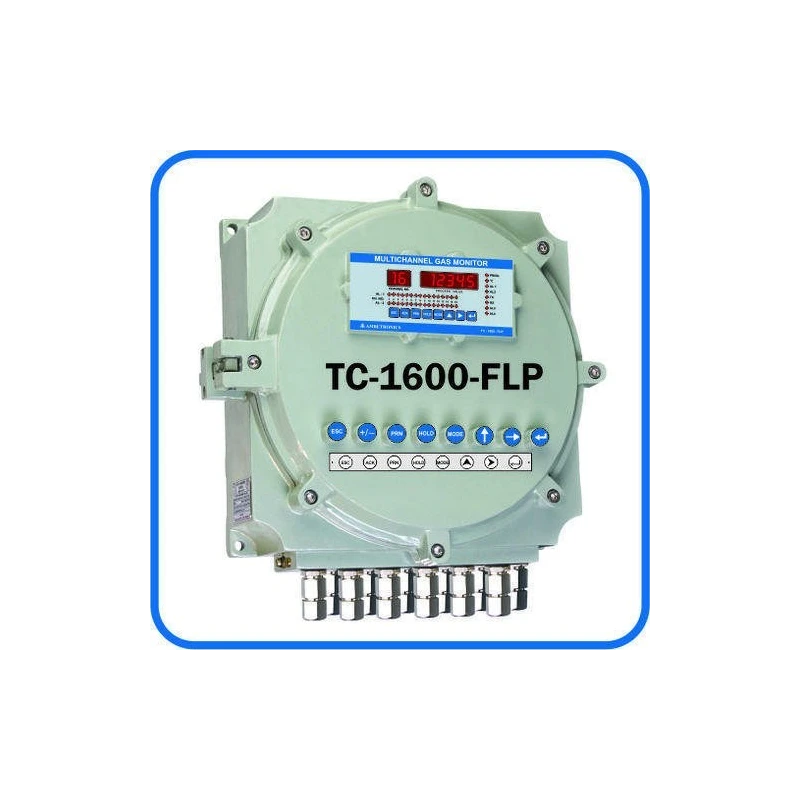

LED Display Multi Channel Gas Monitor
Specifications
| Resolution | 0.1 / 1 programmable by user |
|---|---|
| Display | 3 Digits of 8 mm (H) Red LED display |
| Range | 0 to 999 programmable by user |
| Brand | Ambetronics |
| Applications | Industrial Use |
| Operating Temperature | 0 to 50 Deg C |
| Model | TC-1600-series |
| Supply Voltage (V) | 18 to 36 V DC |
| Terminal | 20 connectors with 1.5 Sq. mm |
| Input Value | 4 to 20 mA |
Key Features
- User friendly operation
- Scan each channel with gas concentration
- Easy one man calibration at site
- Open loop sensor break, open indicator
- Individual channel skip, Hold facility from front panel
- Reading offset facility to compensate the field error
- High & Low alarm output with programmable latch & non-latch facility for common relay & relay indication
Product Description
Ambetronics Multi Channel Gas Monitor LED Display, As an affluent name of this domain, we hold expertise in presenting high quality Multichannel Gas Monitor. This gas monitor is manufactured under the various guidelines of the industry norms. After production, the offered gas monitor is quality tested on various scales such as tensile strength, largeness, lengths, thickness, and measurement. None of the area is left or un-turn during the quality inspection. Further, clients can also provide custom specification for the gas monitor. In addition, the gas monitor is manufactured using approved components.
- Optional : Data logging / Printer interface / PC software
- Optional relay output for each channel
- suitable in Hazardous Area CCOE, CMRI & IP-65 Approved
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The measurement range of this model is programmable from 0 to 999.
The resolution is programmable by the user to either 0.1 or 1.
It features a 3-digit red LED display with a height of 8 mm.
The operating temperature range is from 0 to 50 degrees Celsius.
The supply voltage required for this model is between 18 to 36 V DC.
It accepts an input value of 4 to 20 mA.
This unit is suitable for industrial use.
There are 20 connectors available with a capacity of 1.5 Sq. mm.
Yes, it has high and low alarm outputs with programmable latch and non-latch facilities.
Yes, it allows for easy one-man calibration at the site.
Yes, optional features include data logging, printer interface, and PC software.
It is approved for use in hazardous areas and has an IP-65 rating.
