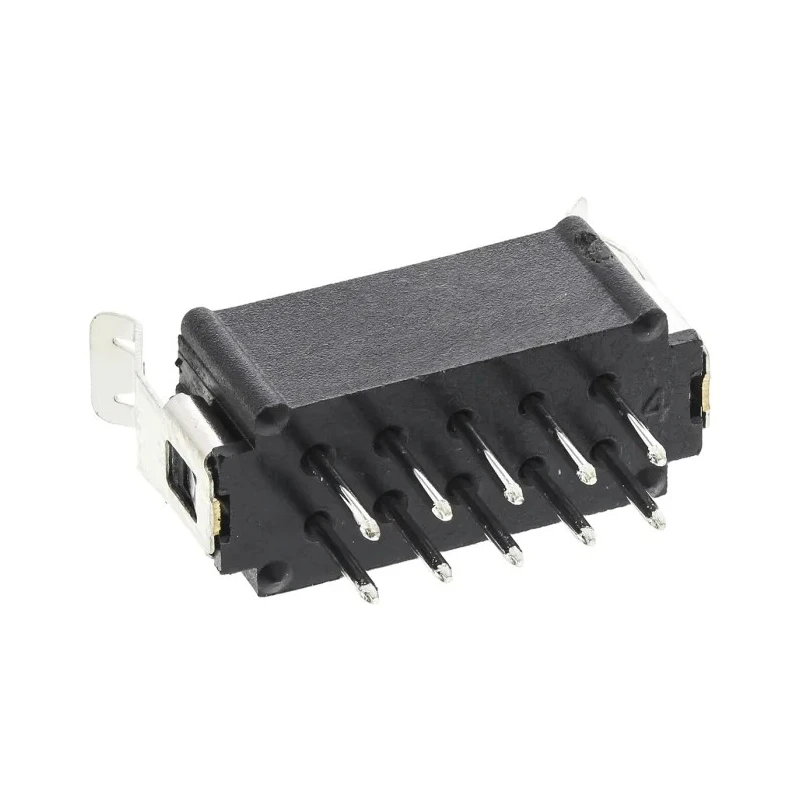

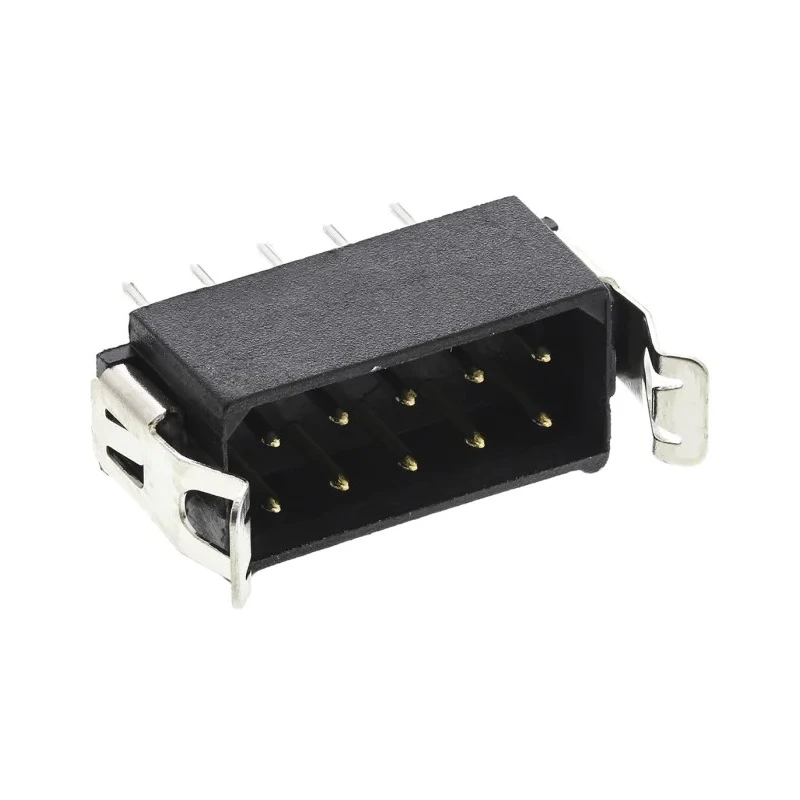

HARWIN Datamate L-Tek Series Straight Through Hole PCB Header, 10 Contacts, 2 mm Pitch, 2 Rows, Shrouded, 120V M80-8531042

The HARWIN Datamate L-Tek Series M80-8531042 is a straight through hole PCB header designed for highly reliable interconnections in demanding electronic applications. This connector features 10 male contacts, organized in 2 rows, with a compact 2 mm pitch. Its shrouded construction provides enhanced mechanical protection and durability, making it ideal for board-to-board and wire-to-board configurations in industrial, automotive, and defense-grade systems.

Built with a robust polyphenylene sulphide housing and gold-plated phosphor bronze contacts, the M80-8531042 delivers superior resistance to corrosion and ensures consistent electrical performance even after numerous mating cycles. Its straight orientation and through-hole mount design facilitate secure installation onto PCBs, while the solder tail pins (3 mm length) enable reliable connectivity.

This PCB header is rated for up to 120V and 3A, supporting a range of signal and low-power applications. The 2 mm pitch allows for compact layouts in environments where space efficiency is critical. With its latched design as part of the Datamate L-Tek series, it remains stable and connected in high-vibration and harsh environments, reliably maintaining integrity of data and power transfer.

Operating across a wide temperature range from -55°C to 125°C, the connector meets the requirements for harsh industrial and military standards, including compliance with BS9525-F0033, MIL C 55302, and CEC 75101-008. It is well suited for COTS (Commercial Off-The-Shelf) systems where ruggedness and long-term reliability are paramount.

The M80-8531042 PCB header is widely used in electronics manufacturing, instrumentation, laboratory systems, robotics, telecommunications, transportation, and other industrial segments requiring high-density, secure PCB interconnections.

10 male contacts in 2 rows with shrouded housing and 2 mm pitch. Straight through hole mount and solder termination for stable fit and reliable performance. Gold-plated phosphor bronze contacts and polyphenylene sulphide housing ensure corrosion resistance and high mating cycle durability.

Rated for 120V, 3A with wide operating temperature range from -55°C to 125°C. Ideal for board-to-board, wire-to-board, and harsh application environments in industrial, laboratory, automotive, and defense electronics. Discover more PCB Headers and Datamate connectors from HARWIN in the Electronics & Electricals category on EnvMart.
